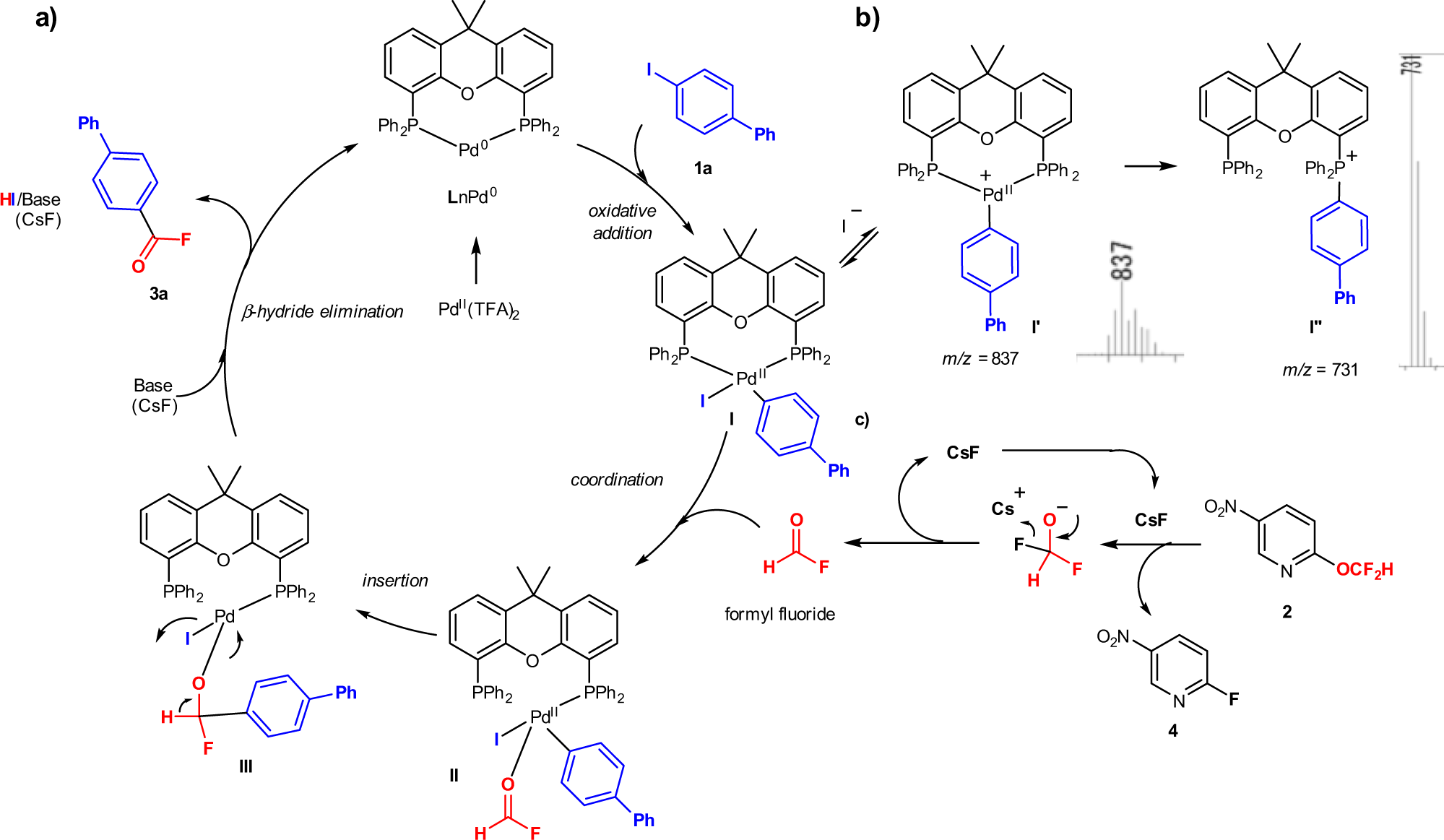

Fig. 6: A plausible reaction mechanism.

a A proposed catalytic cycle for Pd-catalyzed acyl fluoride synthesis. b Key reaction intermediates detected by mass spectrometry (MS). c A process for the generation of formyl fluoride catalyzed by CsF.
