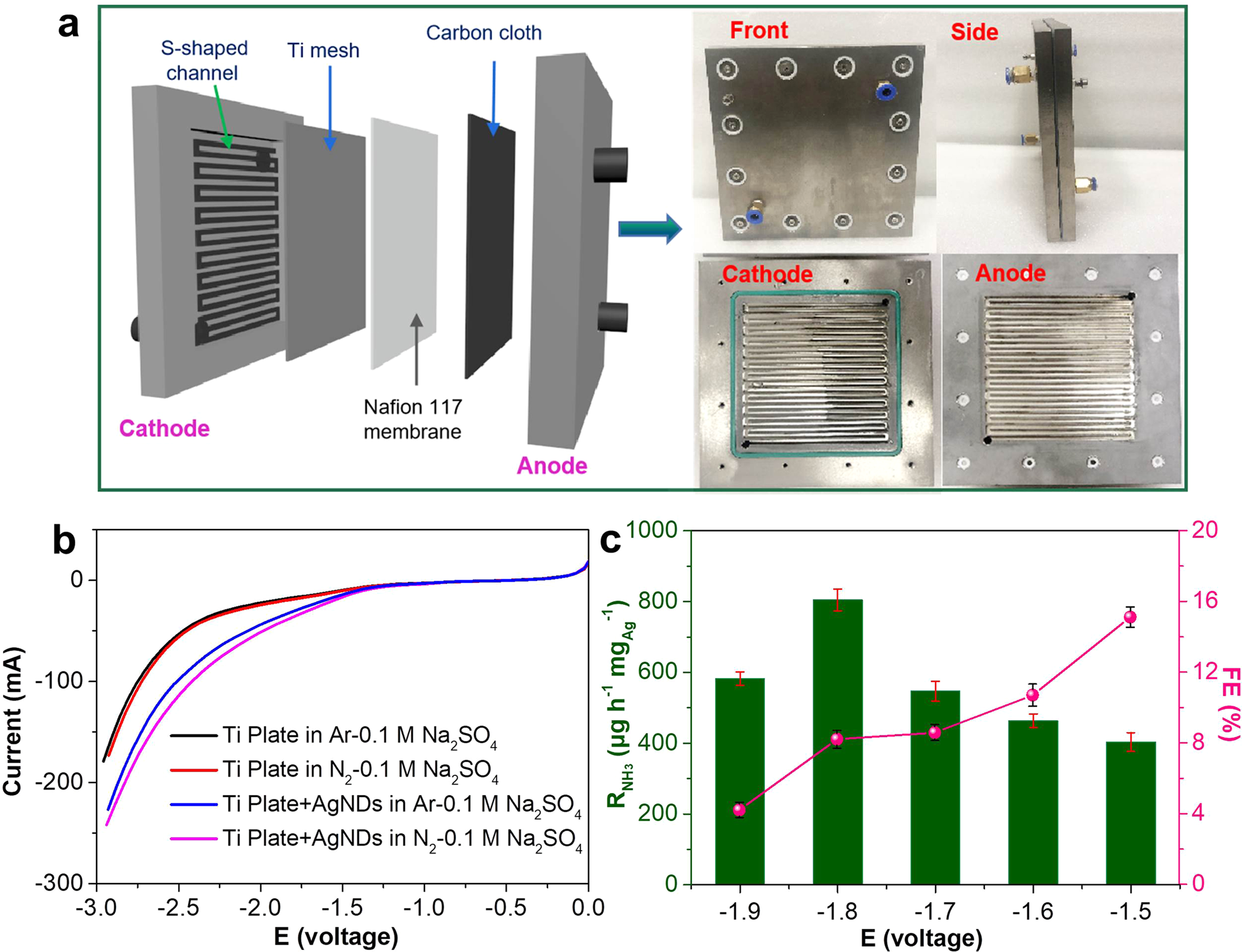

Fig. 3: NRR evaluation of AgNDs in Ti plate-based two-electrode configured flow-type electrochemical reactor.
From: Efficient electrocatalytic nitrogen reduction to ammonia with aqueous silver nanodots
a Schematic illustration of two-electrode configured flow-type electrochemical reactor and photographs of assembled reactor and individual cell components. b LSV curves of Ti plate-based two-electrode flow-type electrochemical reactor with and without AgNDs incorporation in Ar- and N2-saturated 0.1 M Na2SO4 solutions (pH = 10.5). c The dependence of NH3 yield rate and faradaic efficiency of AgNDs catalyst on the cell voltages in N2-saturated 0.1 M Na2SO4 electrolyte (pH = 10.5). The error bars correspond to the standard deviations of three independent measurements.
