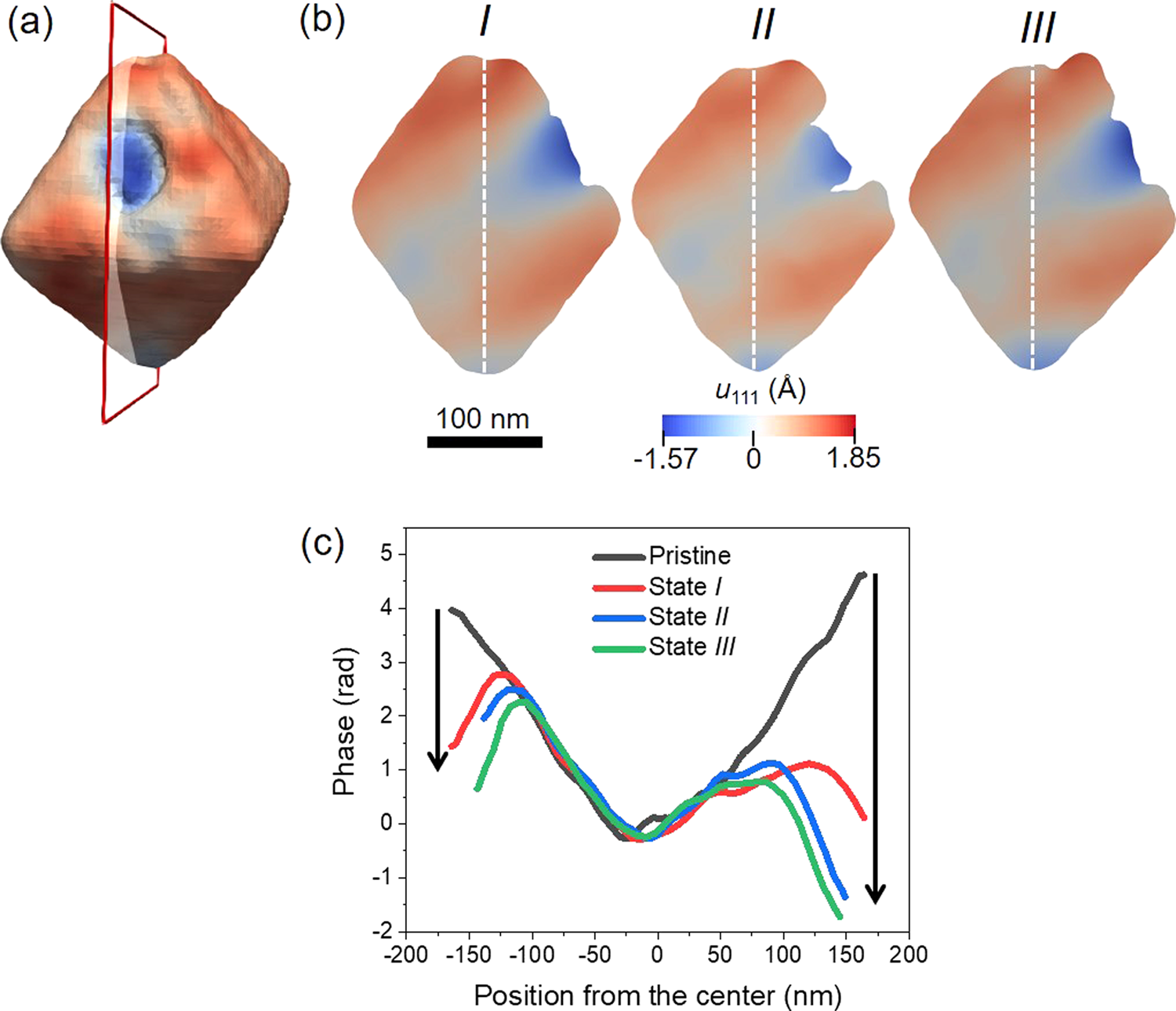

Fig. 6: Cross-sectional views of the phase distribution for states I–III.

a 3D reconstruction with the transparent plane representing the position of the cross-sections shown in (b) for states I–III. c Phase plotline over the dashed white line shown in (b) for states I–III. The black arrows at the sides of the plot show the direction of the phase reversal.
