Fig. 1: LODES and CID spectra of Man4GlcNAc2 N-glycans.

From: Structural identification of N-glycan isomers using logically derived sequence tandem mass spectrometry

Fig. 1

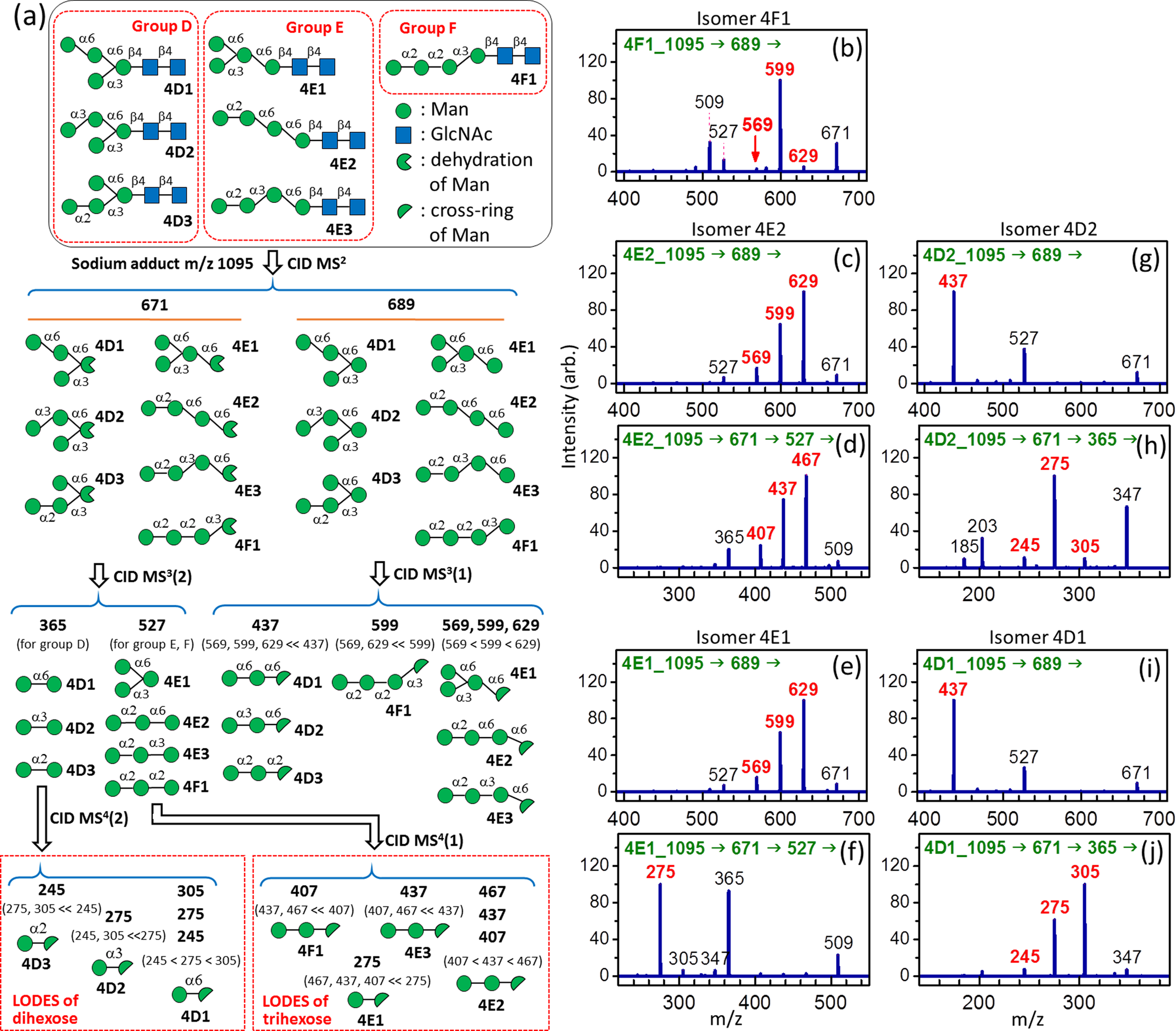

a LODES for Man4GlcNAc2 N-glycans; b CID spectrum of isomer 4F1; c, d CID spectra of isomer 4E2; e, f CID spectra of isomer 4E1; g, h CID spectra of isomer 4D2; i, j CID spectra of isomer 4D1. The numbers (in green) in the horizontal line at the top of each CID spectrum represent the CID sequence. The number on the top of each peak in CID spectrum represents m/z value, which the structural decisive fragments are highlighted in red boldface. Details of the process of structural determination using these spectra are provided in the main text.
