Fig. 2: Morphologies of sample.
From: Intermetallic PdZn nanoparticles catalyze the continuous-flow hydrogenation of alkynols to cis-enols

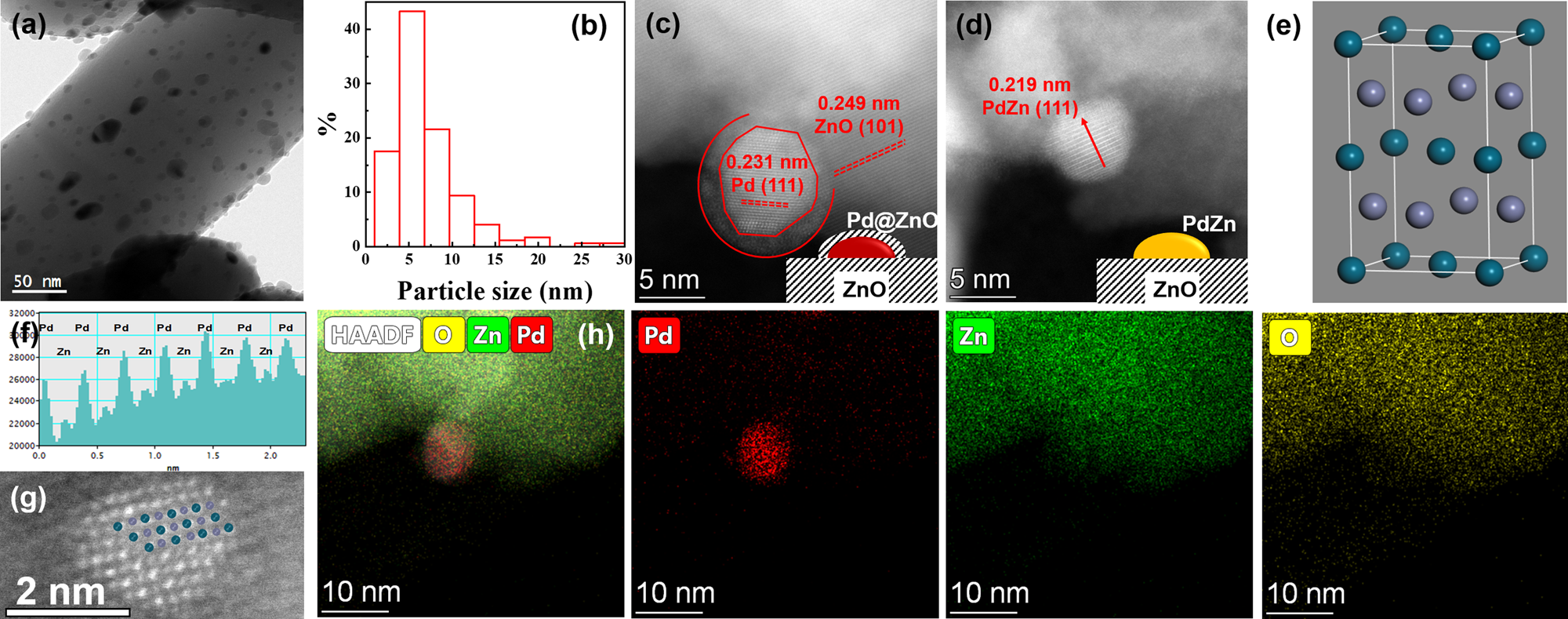

a TEM image, b the particle size distribution, and c, d HAADF-STEM images with insetting the corresponding models of Pd/ZnO-400 sample. e An atomic model of a unit cell of PdZn (Pd: dark cyan and Zn: indigo blue). f Intensity profile along the arrow in the HAADF-STEM image in d. g The higher magnification HAADF-STEM image of PdZn particles, displaying characteristic ordering of Pd and Zn atoms. h A HAADF-STEM image of Pd/ZnO-400 sample along with the corresponding EDS elemental maps of Pd, Zn, and O.
