Fig. 10: Various data collected on the large-scale batch.

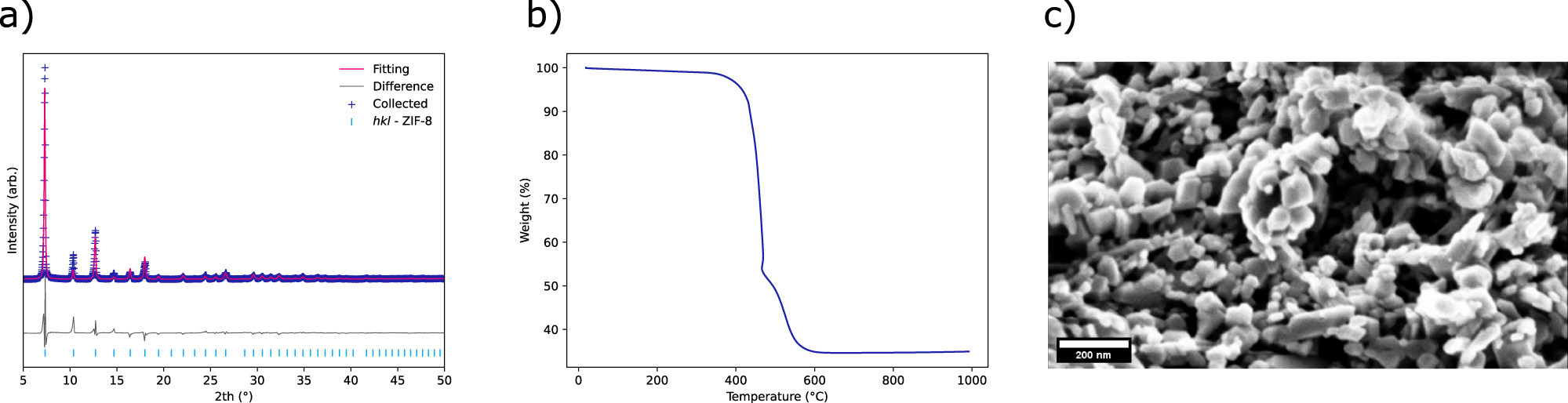

a Collected PXRD pattern and subsequent Rietveld refinement, b TGA trace of nano ZIF-8 material and c SEM micrograph taken of nano ZIF-8 material all from the one-kilogram batch of nano ZIF-8 produced via the transformation from ZIF-L.
