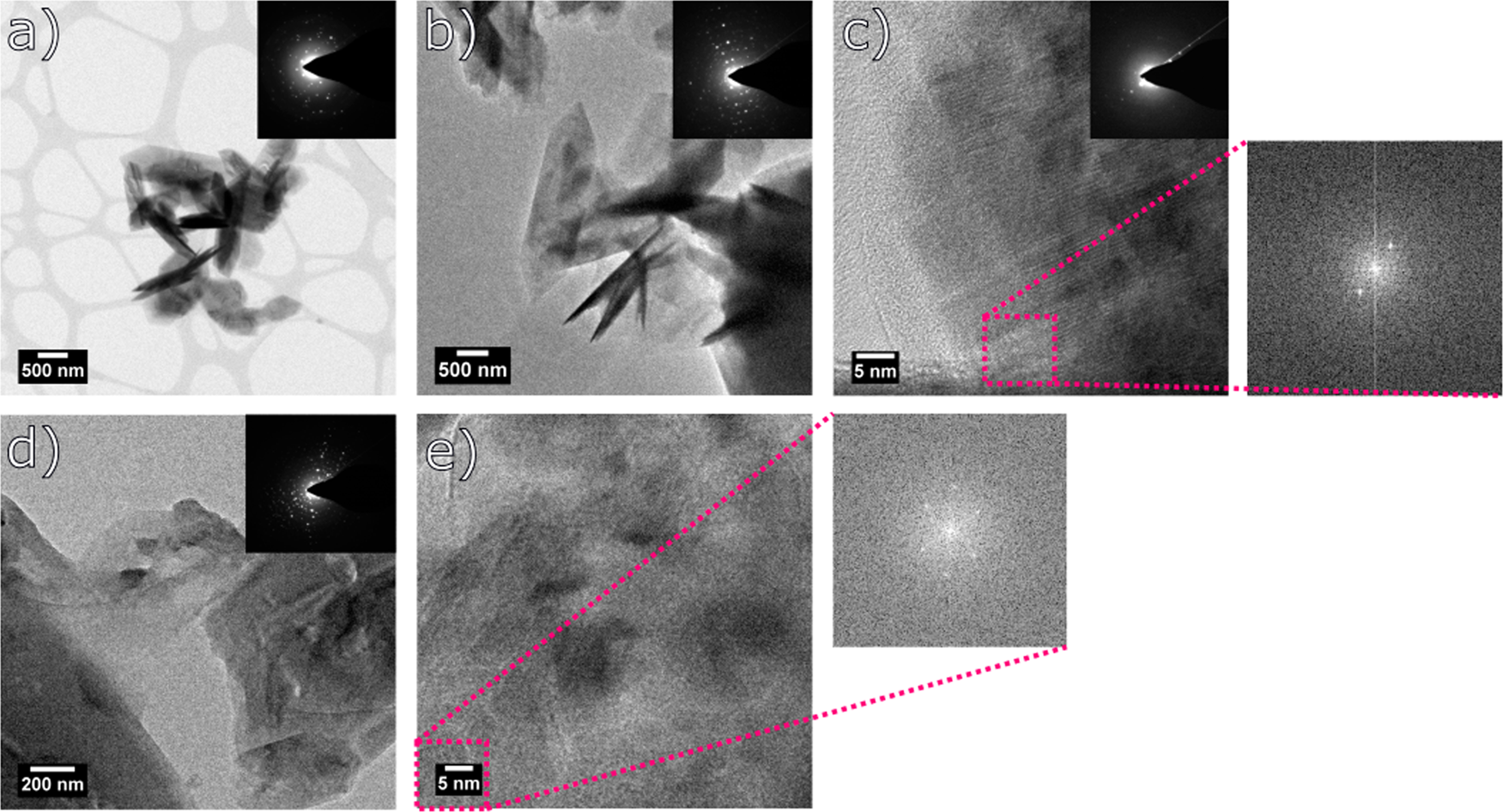

Fig. 9: TEM micrographs and electron diffractograms of the washed samples.

TEM images of samples at different a no washing ZIF-L sample, b 6 h washing, c 24 h washing, d 48 h washing and e 72 h washing times with their corresponding SAED and/or Fourier transform measurements.
