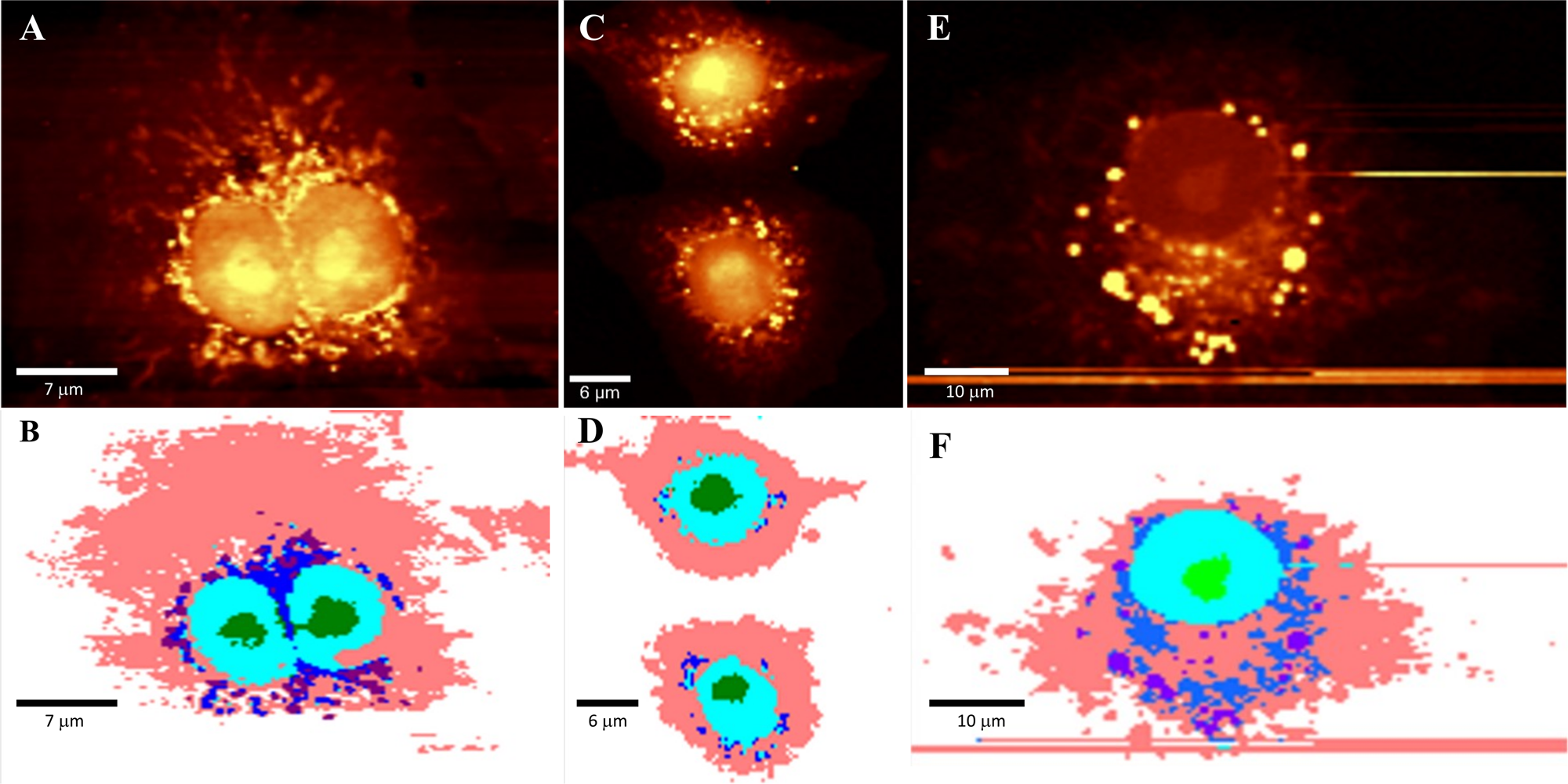

Fig. 1: Raman confocal images of SARS-CoV-2 and MeV-infected (24 h pi) and noninfected Vero E6 cells.
From: Specific intracellular signature of SARS-CoV-2 infection using confocal Raman microscopy
A Raman images of noninfected cells Light yellow color corresponds to the highest intensities of lipids and proteins and dark shadow for the lowest intensities. B KMCA results for the noninfected cells of part A. The nucleolus is marked in dark green, the nucleus in turquoise, mitochondria and Golgi are in blue, cytoplasm in pink and lipid droplet in purple. The same color code has been used for all analyses. C SARS-CoV-2-infected Raman C-H images and D relevant KMCA illustrations for the C part. E MeV-infected Raman C-H images and F relevant KMCA illustrations for E part. Scale bars are variable between 6–10 µm as indicated.
