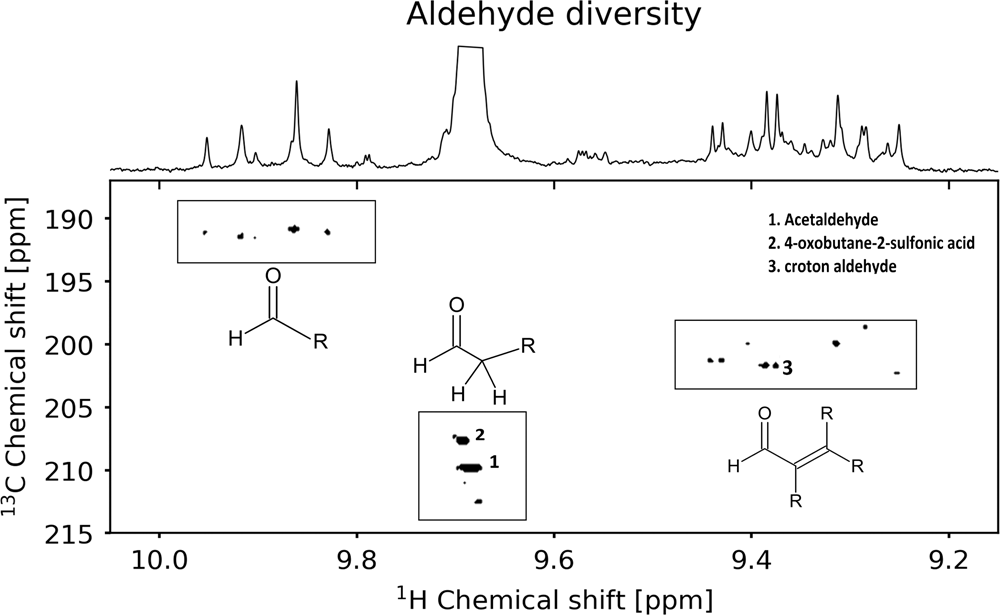

Fig. 2: Aldehyde diversity formed after 7 days in an alkaline setup.
The 1H,13C HSQC shows three different groups (marked with a black frame) of signals sharing similar hydrogen and carbon shifts, suggesting chemical similarity of the aldehyde group. The acetaldehyde signal is cut to allow magnification of the other aldehydes.
