Fig. 6: Laser confocal scanning microscopy (LCSM) images of all tested samples and resulting pore-depth distribution.

From: Multi-scale morphology characterization of hierarchically porous silver foam electrodes for electrochemical CO2 reduction

Fig. 6: Laser confocal scanning microscopy (LCSM) images of all tested samples and resulting pore-depth distribution.The alternative text for this image may have been generated using AI.

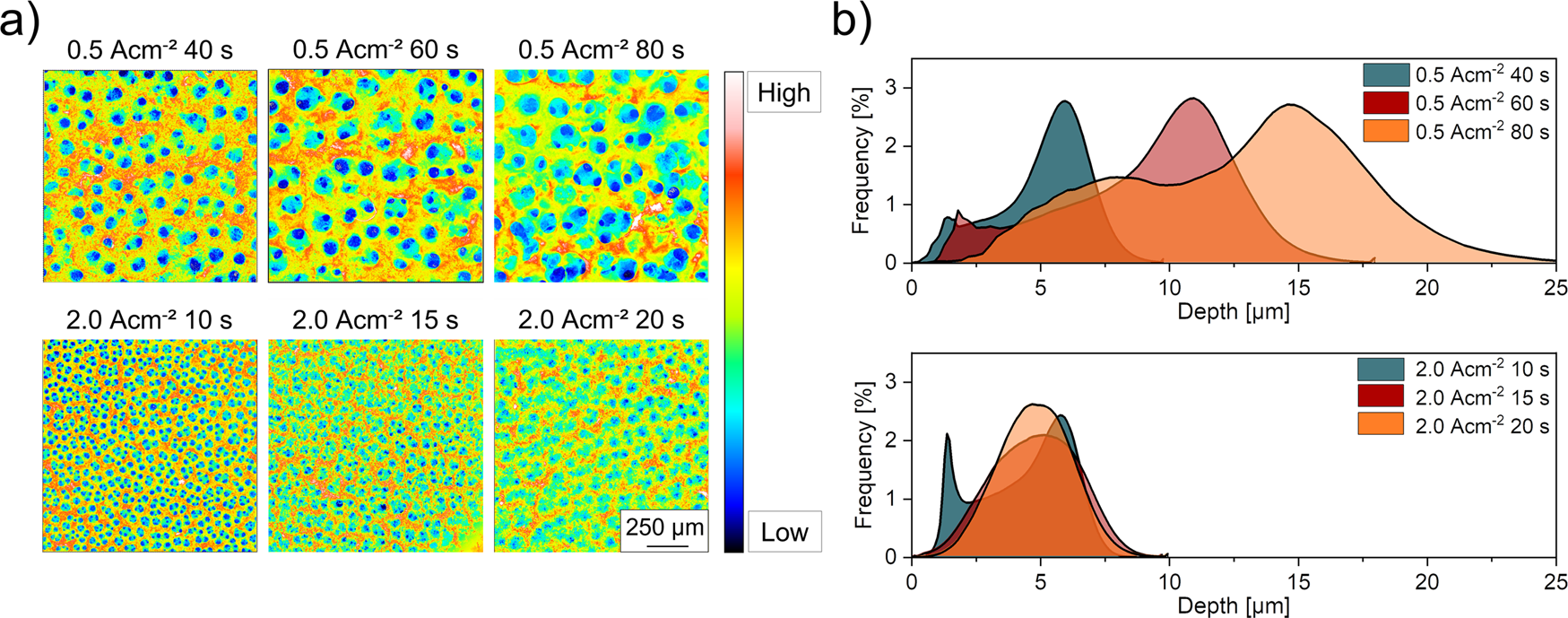

a Coloured 2D LCSM images of low current density and high current density foam electrodes with high (red to white) and low (blue to black) pore depths, b distribution of the pore depths in relation to the applied charge densities of all tested samples.
