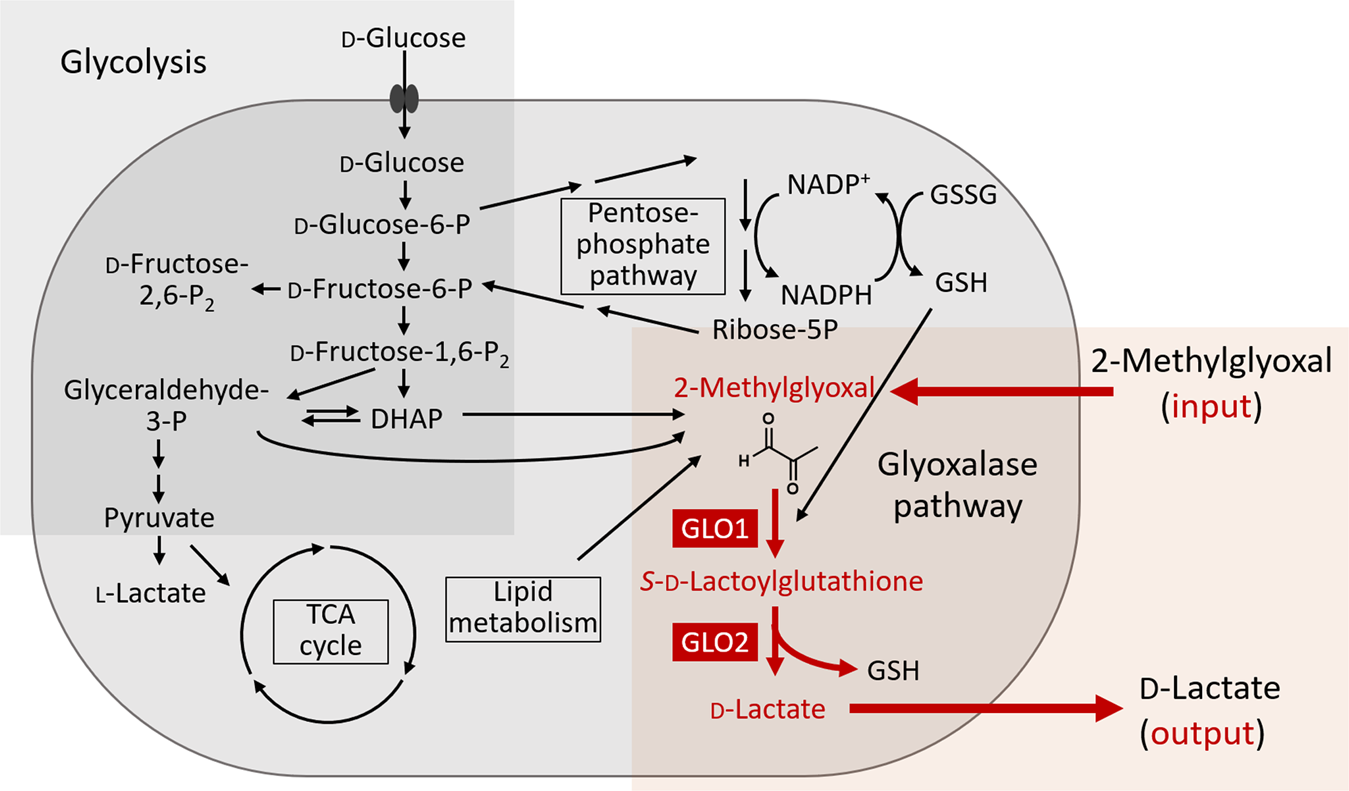

Fig. 1: Design of metabolic pathway-oriented screening to control glyoxal metabolic pathway.

Targeted pathway connecting the input and output metabolites used for the screening (2-methylglyoxal and d-lactate) is shown in orange rectangle, and the important intermediate metabolites are shown in red letters.
