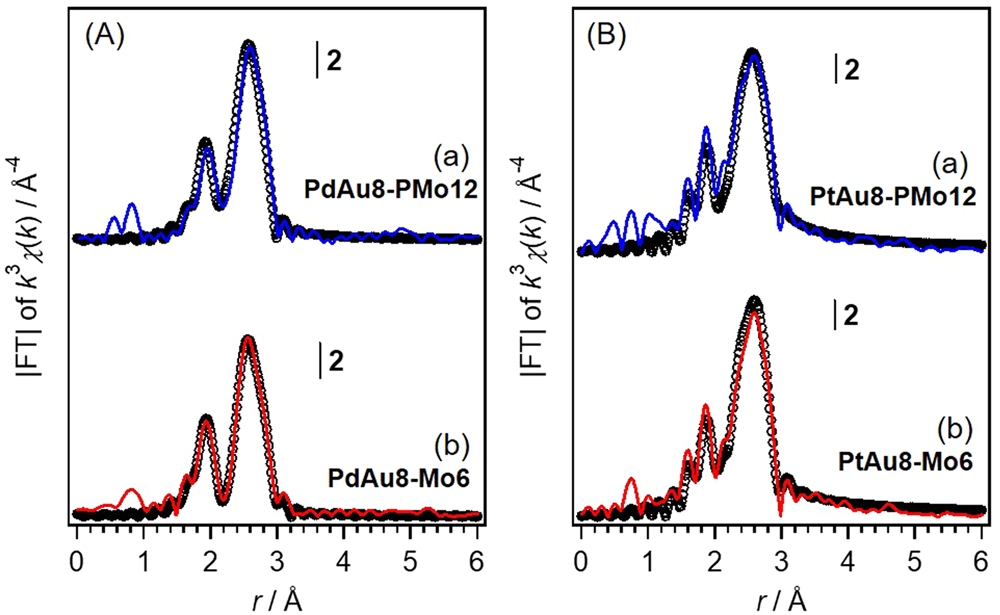

Fig. 3: FT-EXAFS spectra.
From: Counteranion-induced structural isomerization of phosphine-protected PdAu8 and PtAu8 clusters
A Au L3-edge FT-EXAFS of (a) PdAu8-PMo12 and (b) PdAu8-Mo6 measured at 10 K. B Au L3-edge FT-EXAFS of (a) PtAu8-PMo12 and (b) PtAu8-Mo6 measured at 10 K. The circles represent the fitting curves, whose parameters and results are listed in Table 1.
