Fig. 4: Potential curves of isomerization reaction.
From: Counteranion-induced structural isomerization of phosphine-protected PdAu8 and PtAu8 clusters

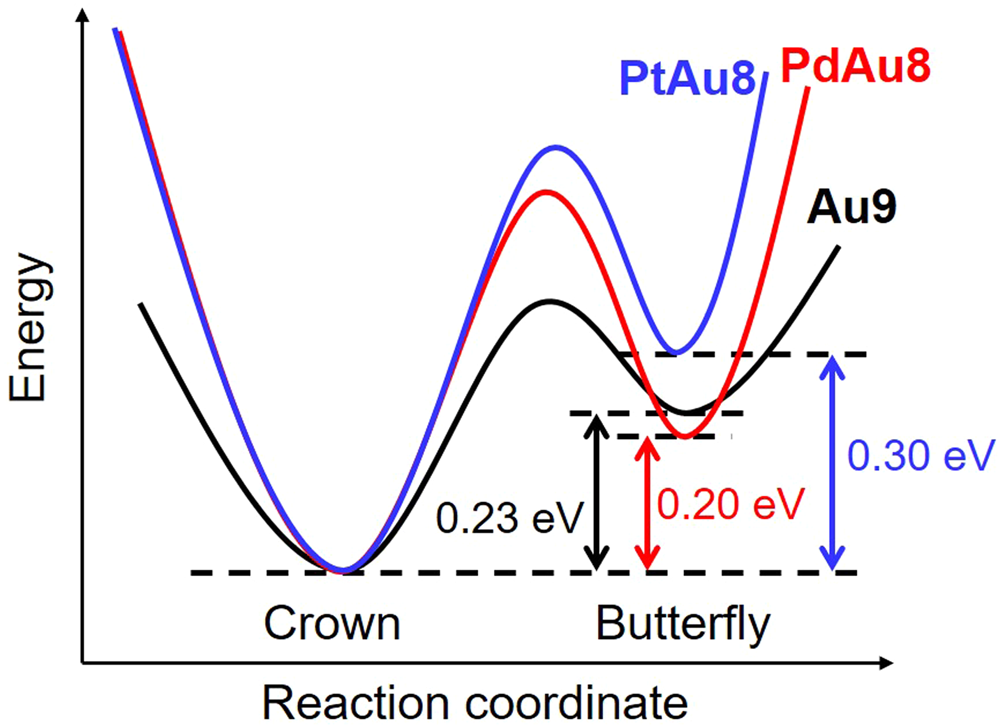

Schematic image of potential curves of isomerization reaction for Au9, PdAu8, and PtAu8.
