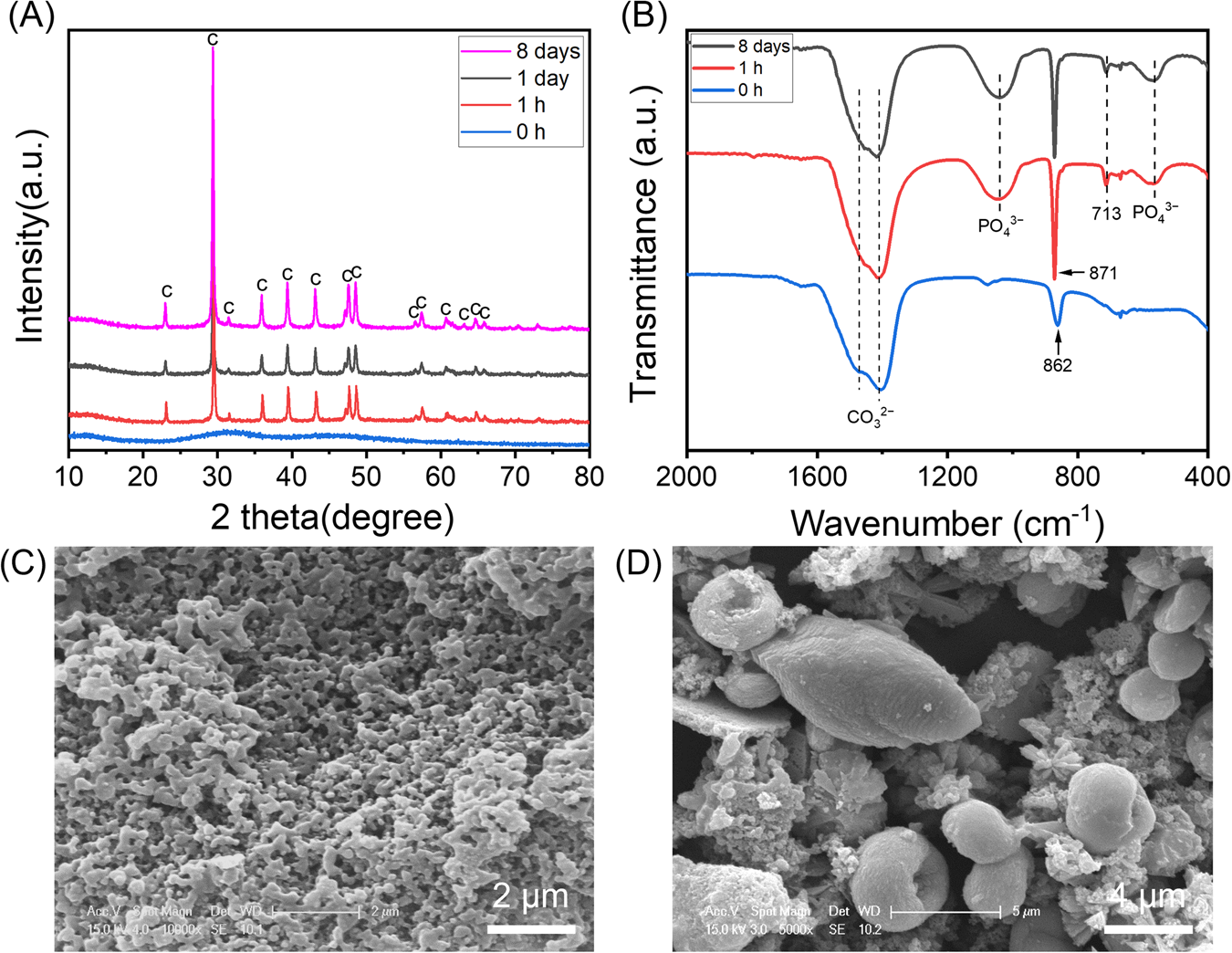

Fig. 2: Transformation of Mg stabilised ACC.

XRD patterns (A) and FTIR spectra (B) of ACC stabilised with magnesium before and after submersion in 0.1X PBS at 37 °C. SEM images of the initial ACC material (C) and the material formed post-immersion for 8 days (D). c, calcite.
