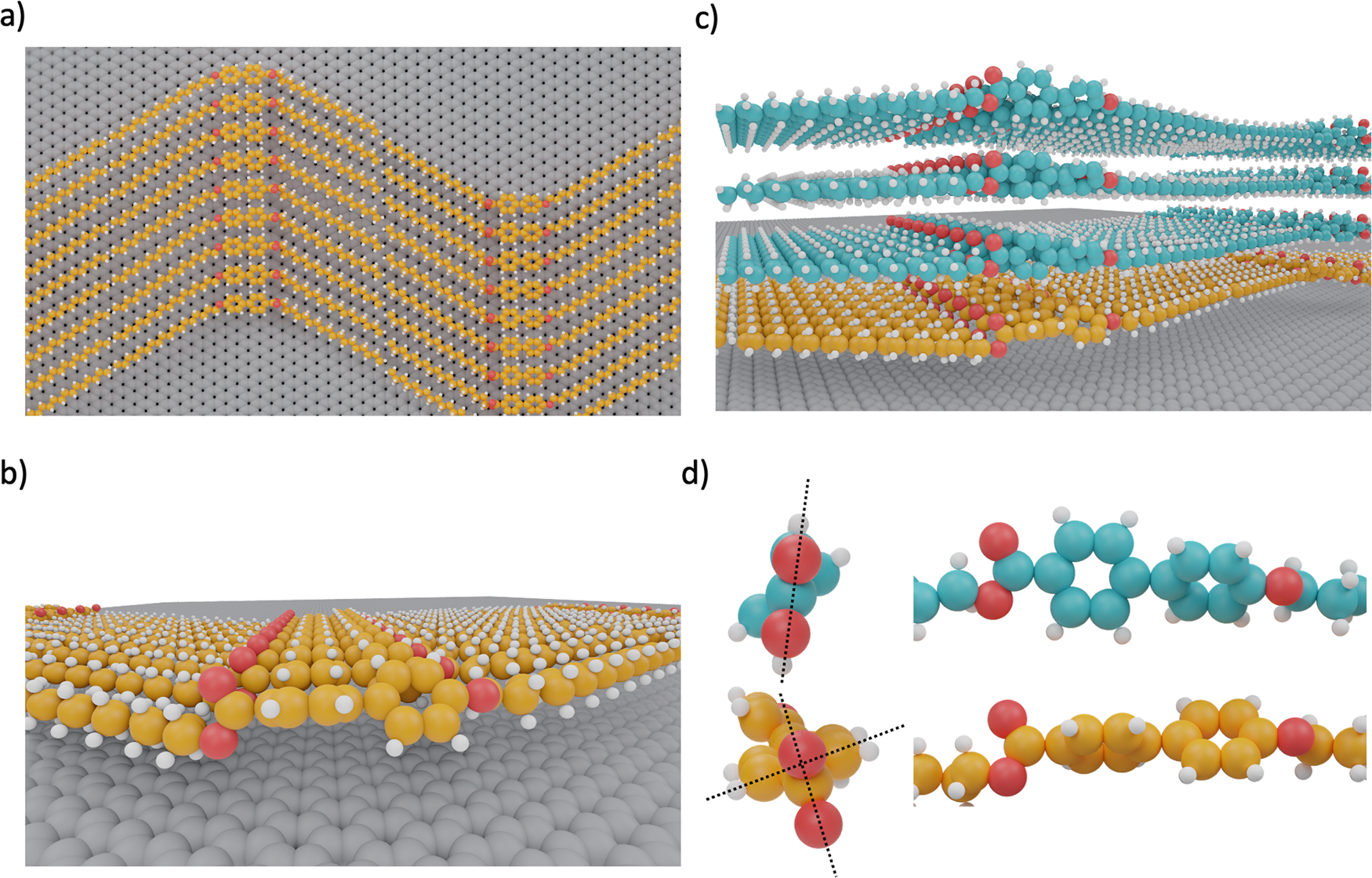

Fig. 4: Adsorption models of EsterOC18 on HOPG surface.
From: Toward conformational identification of molecules in 2D and 3D self-assemblies on surfaces
a Top view of the proposed molecular model for a monolayer of EsterOC18. b Side view of (a). The phenyl ring linked to the ester function is out-of-the-plane of the ester function and in-the-plane of the HOPG surface. c Side view of the proposed molecular model of a 4-layered EsterOC18 supramolecular network. The carbon atoms of the first adlayer are painted in yellow, while the carbon atoms of the other layer are painted in blue. d Two side-views of EsterOC18 molecules involved in the first layer (carbon atoms painted in yellow) and in other layers (carbon atoms painted in blue) of a multilayered supramolecular network. The n-octadecyl chains have been omitted for clarity. In the layer close to the HOPG surface, the phenyl ring is still out-of-the-plane of the neighboring ester function and in-the-plane of the HOPG surface. In the other layers, the phenyl ring is now in-of-the-plane of the neighboring ester function and out-of-the-plane of the HOPG surface. The conformational difference of EsterOC18 molecules is highlighted by dashed black lines.
