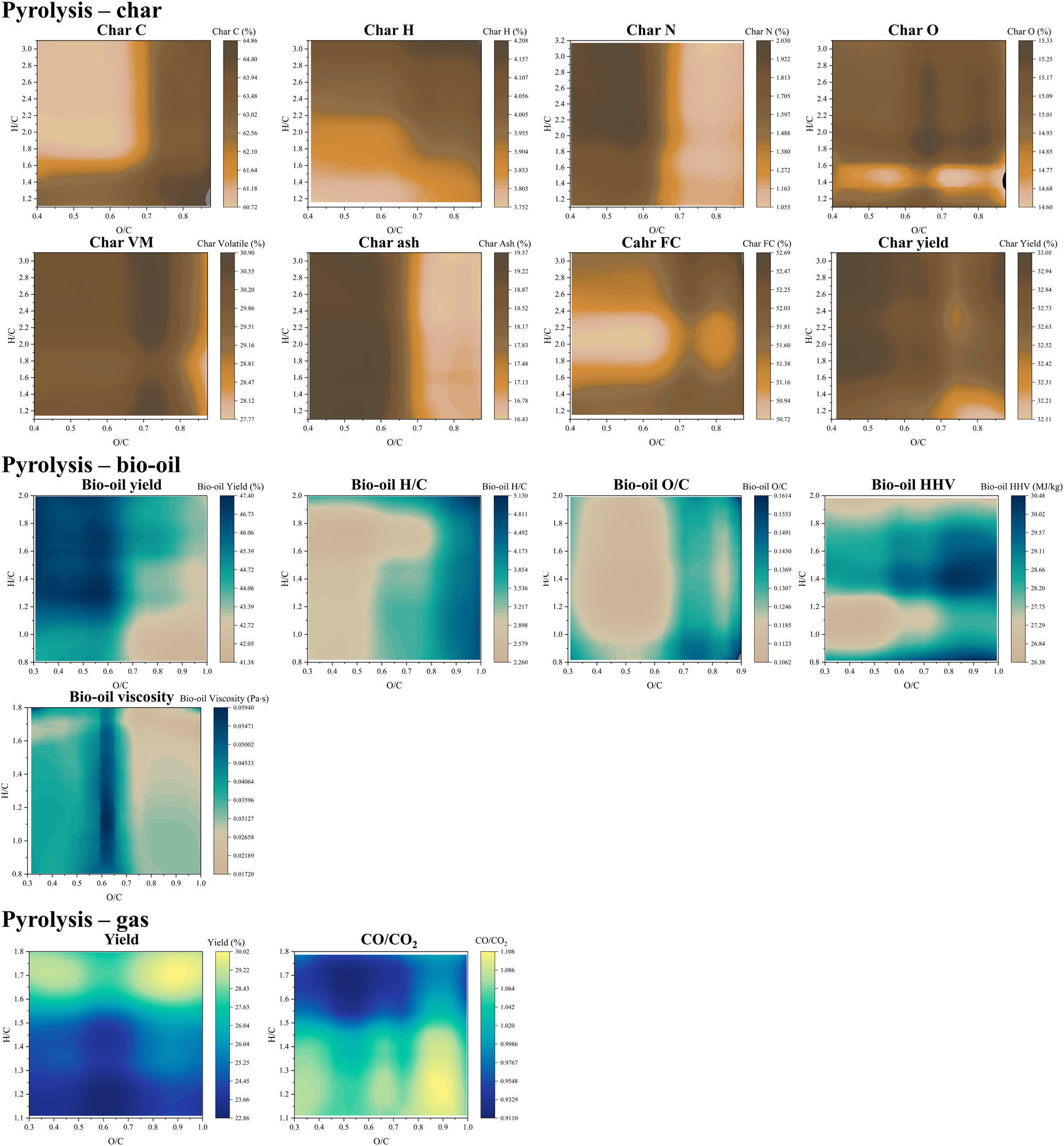

Fig. 4: Van Krevelen diagrams for the products of char, bio-oil, and gas yielded from pyrolysis. The char diagrams are established based on the previous work by Li et al.73.

From: Van Krevelen diagrams based on machine learning visualize feedstock-product relationships in thermal conversion processes

Fig. 4: Van Krevelen diagrams for the products of char, bio-oil, and gas yielded from pyrolysis. The char diagrams are established based on the previous work by Li et al.73.The alternative text for this image may have been generated using AI.

The investigated feedstock is lignocellulosic biomass, including corncob, rice husk, sawdust, wood, etc. The bio-oil diagrams are established based on the previous work by Zhang et al.36. The investigated feedstock is biomass, including seed, rice husk, algae, etc. The pyro-gas diagrams are established based on the previous work by Tang et al.74. The investigated feedstock is biomass, including agriculture and forest waste, algae, etc. VM volatile matter, FC fix carbon.
