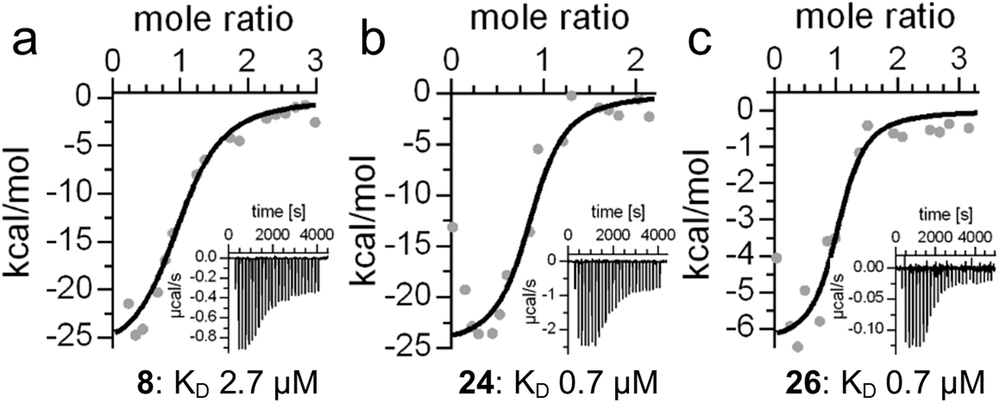

Fig. 2: Orthogonal validation of ligand binding to Nurr1 by isothermal titration calorimetry (ITC).
From: Development of Nurr1 agonists from amodiaquine by scaffold hopping and fragment growing
The fittings of the heat of binding are shown for 8 (a), 24 (b), and 26 (c) and the isotherms at 25 °C are shown as insets.
