Fig. 1: Electrochemical evaluations of ASS Li-S cell.

From: Local structure of amorphous sulfur in carbon–sulfur composites for all-solid-state lithium-sulfur batteries

Fig. 1: Electrochemical evaluations of ASS Li-S cell.The alternative text for this image may have been generated using AI.

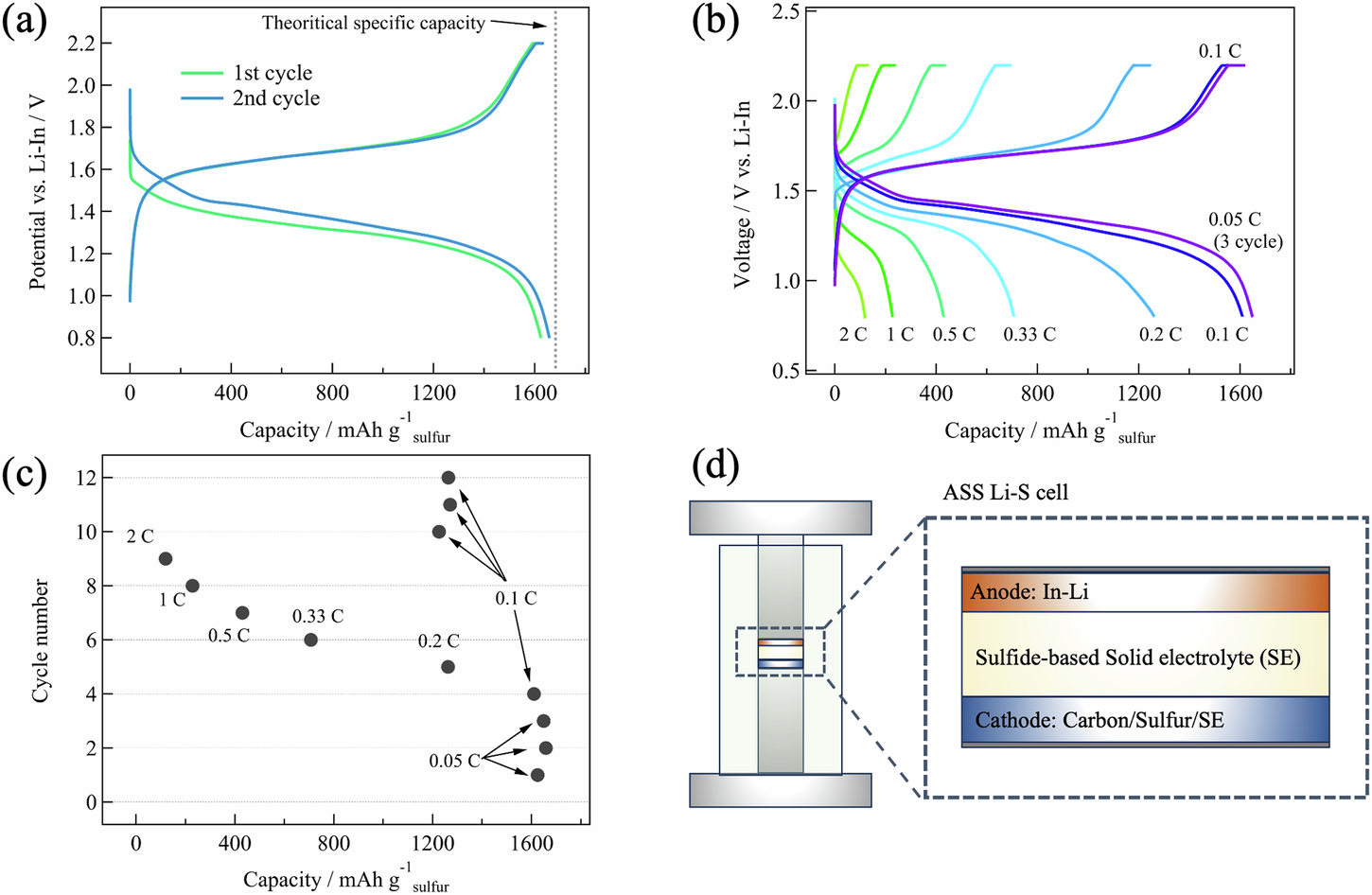

a Charge–discharge curves of ASS Li-S cell (1st cycle, green solid line; 2nd cycle, blue solid line). b Charge–discharge curves and rate performance of the ASS Li-S cell samples. c The specific capacites for sulfur during the discharge process. d Schematic of ASS Li-S cell.
