Fig. 4: Pyrrole production using an acetyl-SNAc substrate and ThAOS AOS V79A biocatalyst. | Communications Chemistry

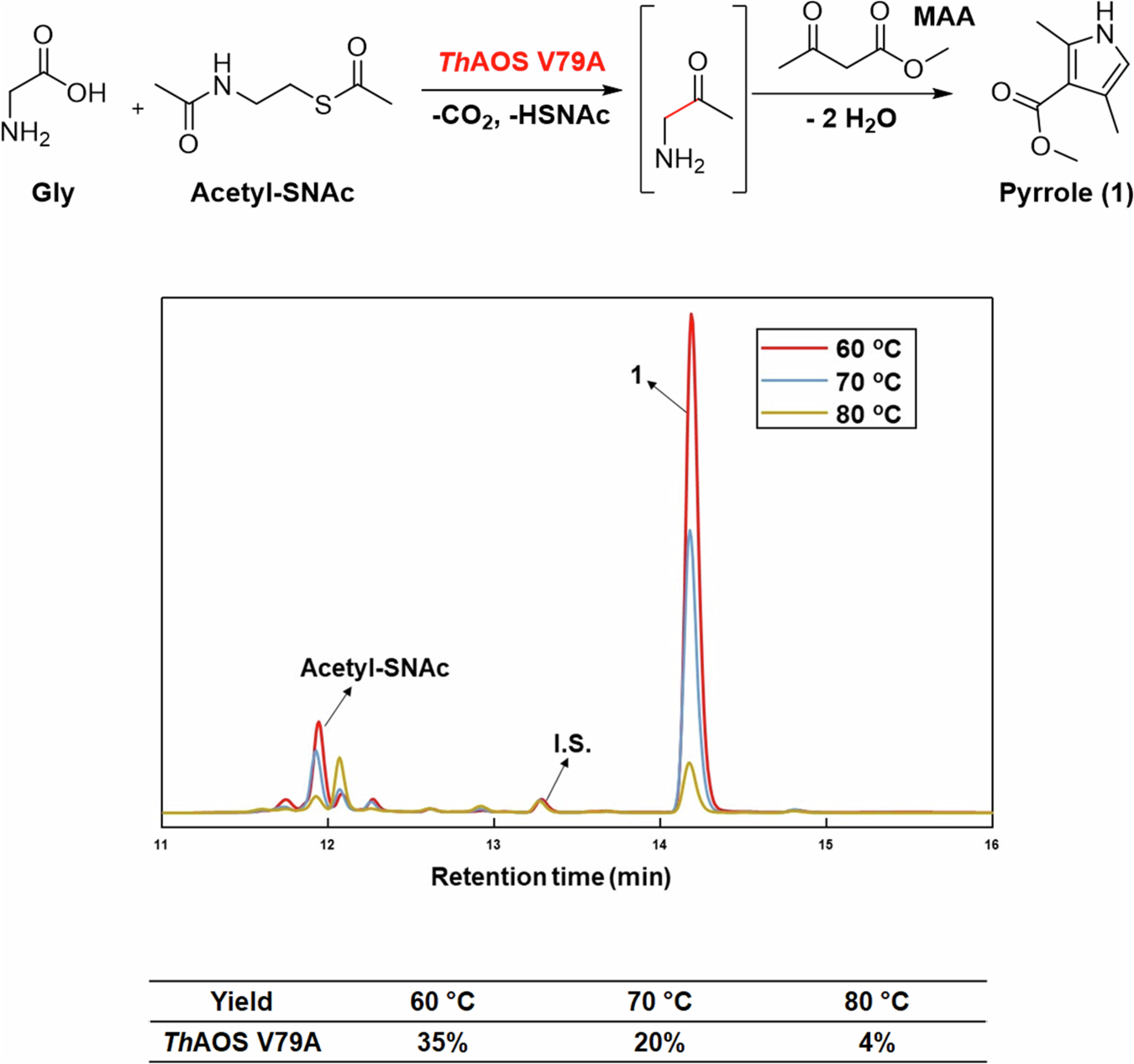

Fig. 4: Pyrrole production using an acetyl-SNAc substrate and ThAOS AOS V79A biocatalyst.

From: Rational engineering of a thermostable α-oxoamine synthase biocatalyst expands the substrate scope and synthetic applicability

Fig. 4

HPLC analysis of the AOS/KPR cascade using ThAOS V79A (10 mg mL-1), Gly (32 mM), acetyl-SNAc (32 mM), MAA (32 mM) in HEPES buffer (100 mM, pH 7.5) incubated overnight at 60, 70 and 80 oC. The product pyrrole (1) eluting at 14.2 min, the benzoic acid internal standard (I.S.) at 13.3 min and acetyl-SNAc substrate at 11.9 min are shown.
