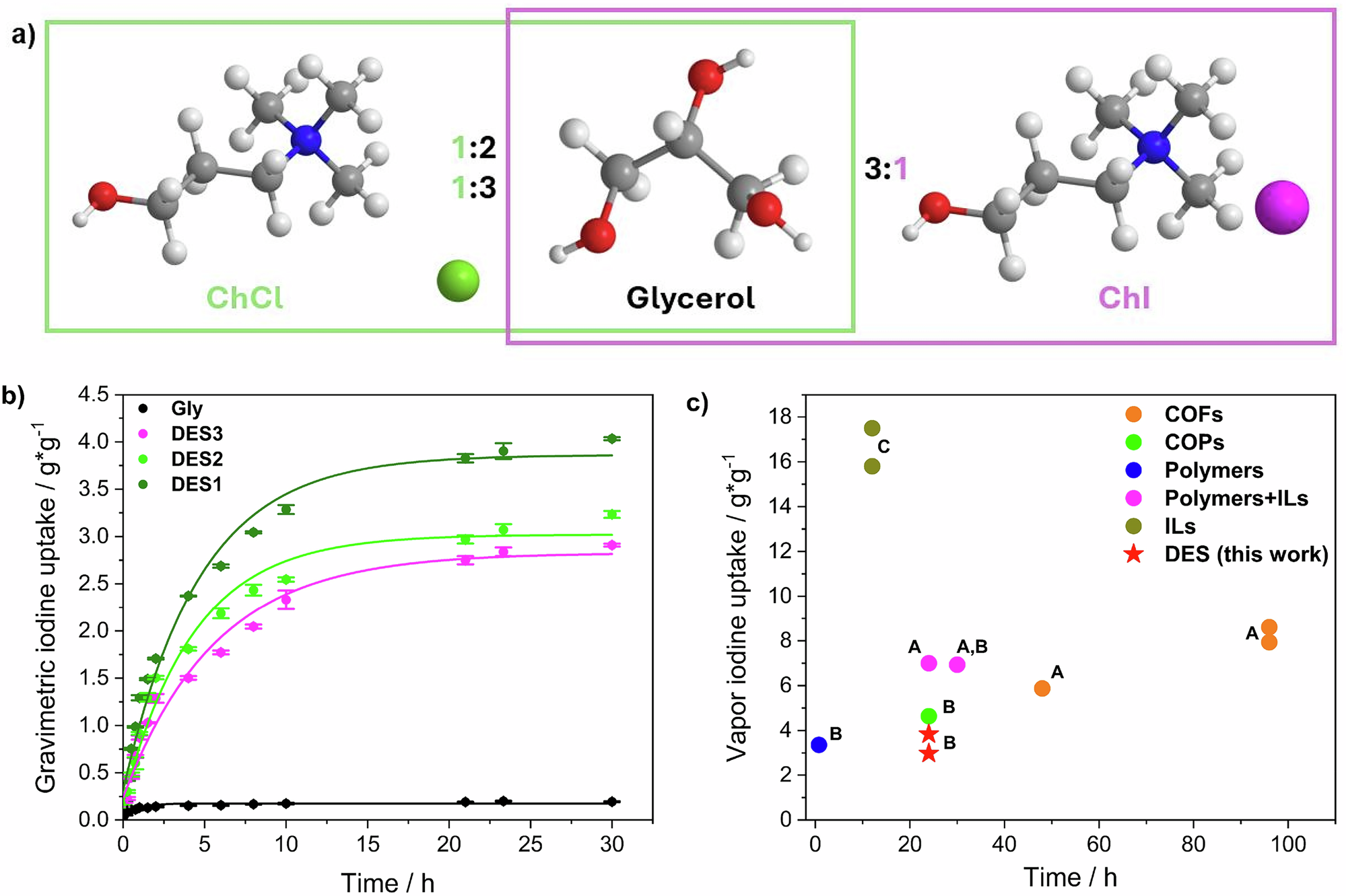

Fig. 1: Gravimetric iodine uptake and comparison with the state of the art.
From: Glycerol-based deep eutectic solvents for efficient and reversible iodine uptake from vapour phase
a Schematic representation of the proposed DESs for vapour iodine uptake. b Gravimetric iodine uptake on DES1, DES2, DES3, and glycerol from 0 to 30 h with error bars (standard deviation). c Comparison of vapour iodine uptake efficiency and time between the proposed DESs and the best-performing materials reported in the literature (Supplementary Table 1); A = regenerated in solution, B = reversible after heating, C = non reversible.
