Fig. 5: Characterization of backbone correlations, contacts, and overall dynamics of QEBSS ensembles.

From: Quality Evaluation Based Simulation Selection (QEBSS) for analysis of conformational ensembles and dynamics of multidomain proteins

Fig. 5

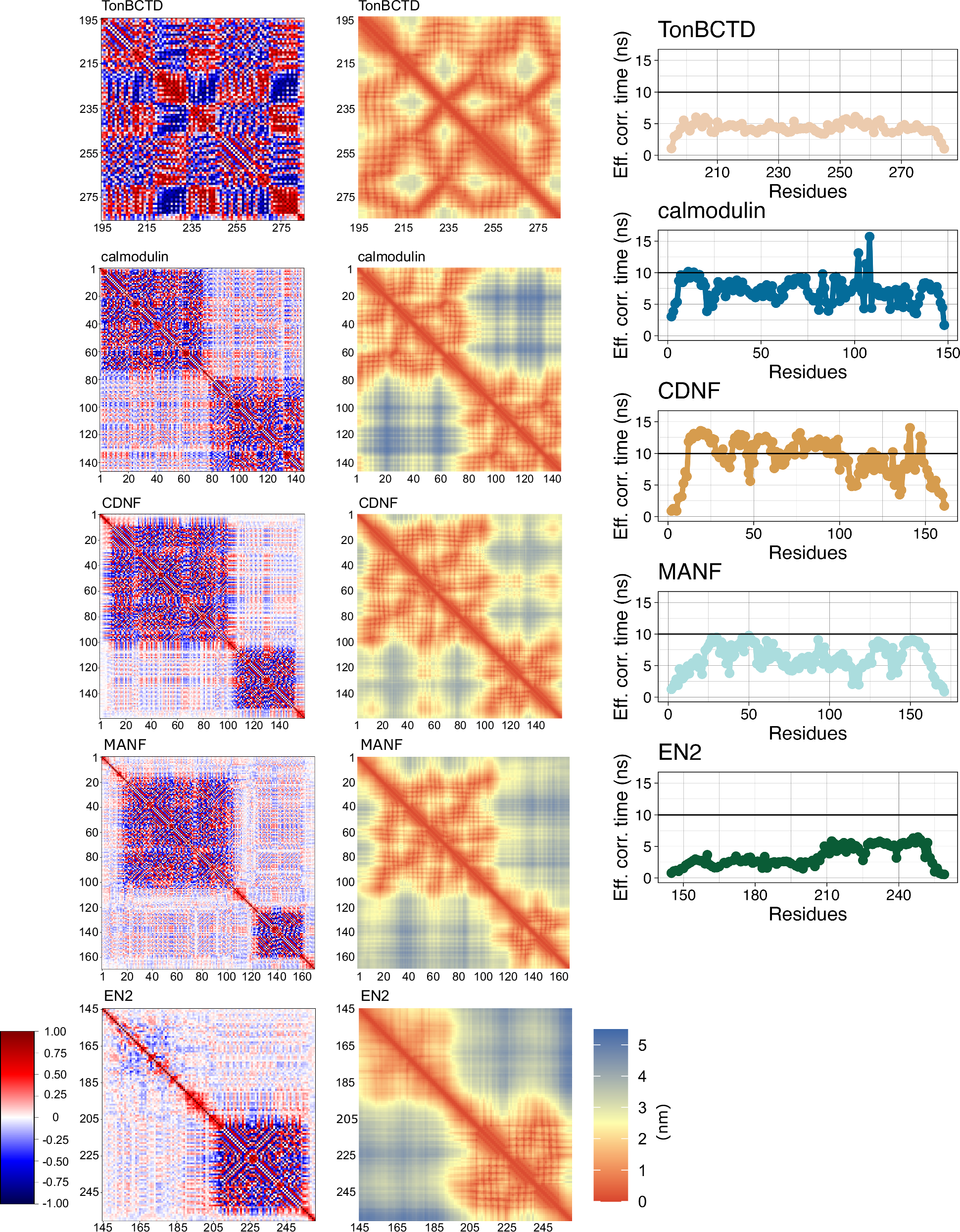

Protein backbone orientation correlation maps for vectors between Cα carbons of consecutive residues (left), average minimum distance between residues maps (middle), and effective correlation times calculated from QEBSS ensemble for different proteins (right).
