Introduction

The notion of non-Hermitian parity-time (PT) reversal symmetric Hamiltonians having real spectra was first conceived within the context of quantum physics1,2. The introduction of this concept later in optics3,4, has led to an explosion of research activities aimed to explore some of the exotic features displayed by such non-conservative systems. In general, such configurations can be synthesized by establishing an even distribution in the real part of the refractive index while imposing an antisymmetric gain/loss profile, associated with the imaginary part of the refractive index.

For example, despite being non-Hermitian, PT symmetric photonic structures can exhibit either entirely real spectra or complex conjugate eigenvalue pairs. In the first regime, the eigenstates also respect PT symmetry (i.e., the system is in an exact PT phase) while in the latter, PT symmetry is broken with the optical intensities associated with the eigenstates being more concentrated either in the gain or in the loss region4. The ability to design and implement photonic systems operating in these domains has led to new light-wave dynamics and unusual optical effects such as unidirectional invisibility5,6, laser self-termination7,8 and complex Bloch oscillations9,10 just to mention a few. Beyond scientific curiosity, PT symmetric photonics is also paving the way towards new technological innovations. For example, PT symmetry can be used to engineer the spectral or the spatial properties of laser emission11,12,13,14,15.

The intense research activity around PT symmetry in optics16,17,18,19,20 has in turn led to the more general framework of non-Hermitian photonics that seeks to use a judicious engineering of the interplay between gain, loss and optical index distributions in order to attain new functionalities. While the notion of PT-symmetry requires the presence of gain in the system to compensate for losses, non-Hermitian photonics does not necessarily rely on the presence of gain. Non-Hermiticity covers all open physical systems, regardless of the presence or the absence of amplification, including loss-only arrangements.

Non-Hermitian optics toolbox

These new overarching concepts are currently expanding the toolbox of photonics by exploiting the complex refractive index landscape, thus enriching the design parameter space (see Fig. 1). Importantly, numerous platforms, ranging from waveguide/cavity arrangements4,11,21 and fiber optics22 to metamaterial6, and microwave systems23, are readily available for building non-Hermitian photonics. This opens the door for a wide range of applications and future technologies such as optical sensors24,25, microlasers11,12, nonreciprocal light propagation26, telemetry27, and microscopic thermal mapping28.

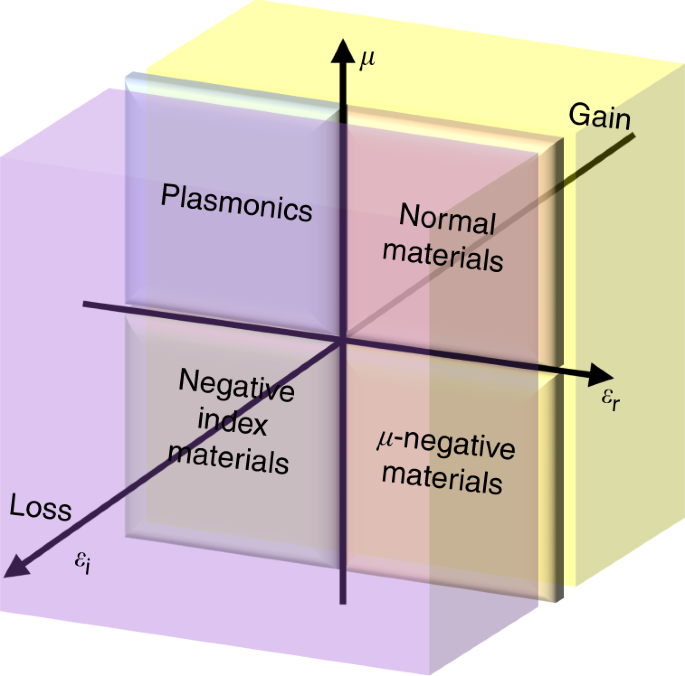

Fig. 1
figure 1

No-Hermitian photonics. Non-Hermiticity expands the toolbox for integrated photonics by enlarging the parameter space into the complex domain (yellow and violet regions along the positive/negative εi axis representing loss or gain)

Full size image

When a non-Hermitian optical system is steered in the complex eigenenergy landscape by varying one or more of its parameters, it can be brought to the vicinity of a special type of spectral singularity called an exceptional point (EP). Figure 2 illustrates some of the features of EPs using an archetypal discrete Hamiltonian. Exceptional points differ from Hermitian degeneracies known as diabolic points (DPs): at a DP, the eigenvalues are degenerate but the corresponding eigenstates are orthogonal whereas at an EP not only the eigenvalues but also their corresponding eigenstates become identical, indicating a collapse of the eigenspace dimensionality at an EP. This in turn renders the system very sensitive to any external perturbation. As it turns out, this responsivity becomes even more pronounced as the order of the exceptional point (defined by the number of coalescing eigenvalues and eigenstates at the EP) is increased. This can be better understood by inspecting the Riemann surface associated with the eigenvalues of non-Hermitian Hamiltonians, where EPs appear as edge points on the lines connecting two sheets. For example, Fig. 2a, b depicts such surface for an archetypical PT symmetric dimer where the locations of EPs are also indicated17. Along the projection marked by white lines (where the Hamiltonian is PT symmetric), the eigenvalues bifurcate as the system crosses the EP. Importantly, for small deviations from the EP, this eigenvalue splitting is stronger than the splitting in Hermitian systems. Figure 2c shows the behavior of the two eigenvectors highlighting the non-Hermitian degeneracy of their coalescence by using the concept of Hermitian angle29. These features, together with a recent proposal for utilizing bosonic algebra to engineer discrete photonic arrays having higher order EPs, was recently employed to demonstrate optical and radio frequency (RF) sensors with superior performance24,25,27 compared to those operating based on diabolic points. Interestingly, EPs can affect the dynamics of the system even when they are away from the operating point as has been demonstrated recently by the work on dynamic encircling of these singularities30,31,32.

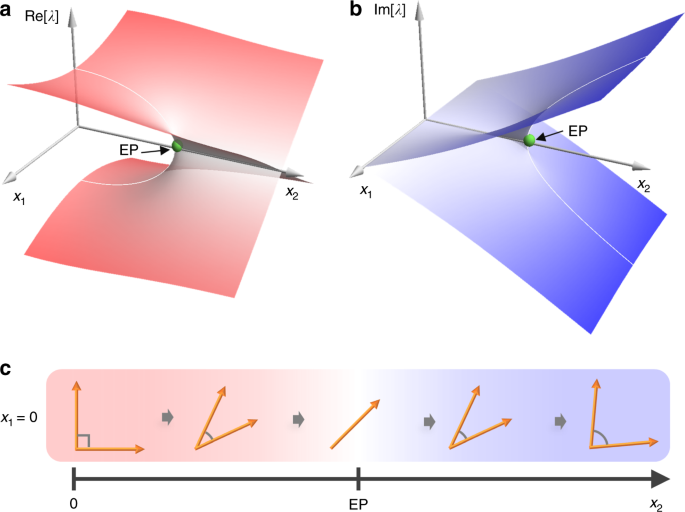

Fig. 2
figure 2

Exceptional points. a and b plot the real and imaginary parts of the eigenvalues (Riemann surface) associated with an archetypal 2 × 2 non-Hermitian Hamiltonian \(H = \left( {\begin{array}{*{20}{c}} {x_1 + ix_2} & 1 \\ 1 & { - x_1 - ix_2} \end{array}} \right)\) (representing coupled waveguides or resonators for instance) having an exceptional point (EP) of order two, as a function of two parameters x1,2. The singular point between the two sheets of the Riemann surface is called an EP. c Presents the Hermitian angle29 between the two eigenvectors of H as a function of the non-Hermitian parameter x2 when x1 = 0. At the EP, not only the eigenvalues but also the eigenvectors coalesce and become identical. Additionally, the Taylor series expansion fails at that point. These properties equip non-Hermitian systems with very exotic behavior such as loss-induced gain, mode selectivity, loss-enabled phase matching, to mention just a few examples (see ref. 17,18 for more details)

Full size image

Future perspective

A particular field that can benefit significantly from non-Hermiticity is nonlinear optics. Recently, non-Herrmitian engineering was proposed as a means for building on-chip light sources33 that rely on coherent wave-mixing processes without the need for restrictive phase-matching conditions (momentum conservation)—which represents a necessary requirement for efficient light generation in standard nonlinear optical systems. Within the context of four-wave mixing where two pump photons fuse together to produce one signal and one idler photon, this proposition relies on the spectral and spatial engineering of optical losses (absorption or radiation) in order to sweep the idler component out of the system, thus leaving only the signal wave to enjoy amplification in an irreversible fashion34. This concept is schematically illustrated in Fig. 3. This opens up new possibilities for nonlinear processes, because nonlinear effects in Hermitian settings are by nature reversible, i.e., when the idler and signal reach a high enough intensity, they can recombine to create pump photons which then sets a limit on the attainable signal or idler powers. Sweeping the idler component out of the system prevents this recombination (backward process) and forces the nonlinear wave-mixing to proceed in the forward direction such that signal power increases as the pump is increased. Different implementations for this concept include hybrid dielectric plasmonic waveguides35, coupled cavity systems utilizing the Vernier effect36, and Bragg grating loaded waveguides37. A particularly challenging task in all these systems is to achieve the desired spectral/spatial loss engineering without sacrificing the modal overlap necessary for efficient nonlinear interactions. While similar effects related to loss-induced modulation instabilities have been investigated in fiber optics setups38, this approach becomes particularly interesting when considering semiconductor platforms with the potential of building miniaturized nonlinear light sources.

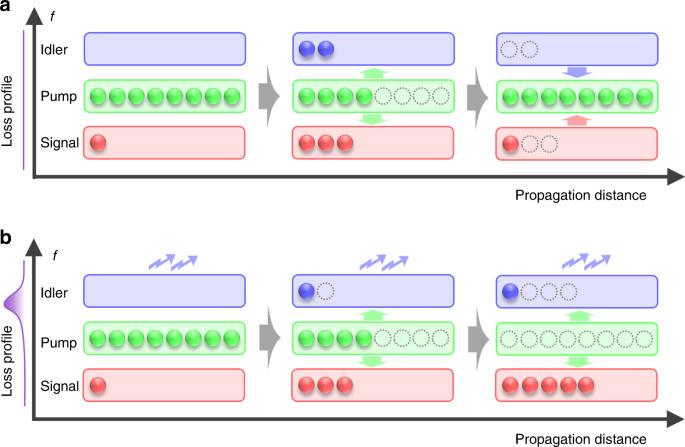

Fig. 3
figure 3

Non-Hermitian parametric amplification. Schematic illustration of the process of four wave-mixing when the phase matching condition is violated in two different cases: a when the losses of all the components are neglected; and b when the idler loss is appreciable while the pump and signal loss are negligible. In the first scenario, the process is reversible as a function of the propagation distance: two pump photons can be combined to produce a signal and an idler photons, which upon propagation acquire different phases that allows them to combine and reproduce the pump photons again. In the latter case (b), the idler loss sweeps the idler photons out of the system, leaving only the signal photons. As a result, the process becomes irreversible. This leads to the amplification of the signal beam even in the absence of phase matching. The conversion efficiency between the different components depend on the exact frequencies involved and the details of the loss profile33,34

Full size image

Currently, the impact of non-Hermitian engineering is rapidly expanding into different research directions. On the one hand, non-Hermiticity combined with other quantum-inspired symmetries and technologies can be used to observe more exotic effects. Exemplifying this direction is the recent work on supersymmetric laser arrays39,40 and the experimental observation of topological lasers in both one and two dimensional systems41,42,43,44,45. In the former, pseudo global phase matching, which is engineered by using supersymmetry transformations, is used in conjunction with loss engineering to spoil the quality factor of all the undesired supermodes of a laser array in order to force the system to lase in the in-phase fundamental supermode. In the latter, the judicious introduction of loss and gain in a 1D Su-Schrieffer–Heeger (SSH) lattice replaces the usual chiral symmetry of the topological array with charge-conjugation symmetry, which in turn allows the system to lase in a pre-selected topologically protected defect state even when the whole structure is uniformly pumped. On the other hand, the notion of non-Hermitian engineering is applied in numerous physical platforms other than optics such as electronic46 and microwave23 with potential applications in wireless power transfer47 and telemetry sensing27. Along this line, two directions promise major advances in light sciences and technologies: optomechanics and plasmonics. Concepts from non-Hermitian engineering have already been used in theoretical explorations in these fields, showing how PT symmetric systems can be integrated with plasmonics structures48, and predicting emergence of high-order EPs in optomechanical systems, enhanced optomechanical interactions and cooling rates49, as well as thresholdless phonon lasing50. The experimental demonstration of such predictions can lead to technological advances. For example, a recent experimental work has demonstrated the broadening of the linewidth of a phonon laser operating in the vicinity of an exceptional point (analogous to Petermann factor in photon lasers physics) and the possibility of tuning the linewidth of phonon lasers by operating them close to or far from exceptional points51.

The research area of non-Hermitian photonics is relatively new. Compared to other more mature fields such as photonic crystals or metamaterials, it is still largely unexplored. Novel theoretical ideas combined with new experimental schemes are expected to produce more surprising results, leading to altogether different, previously unknown, means for controlling light-matter interactions both in the classical and the quantum regimes.
