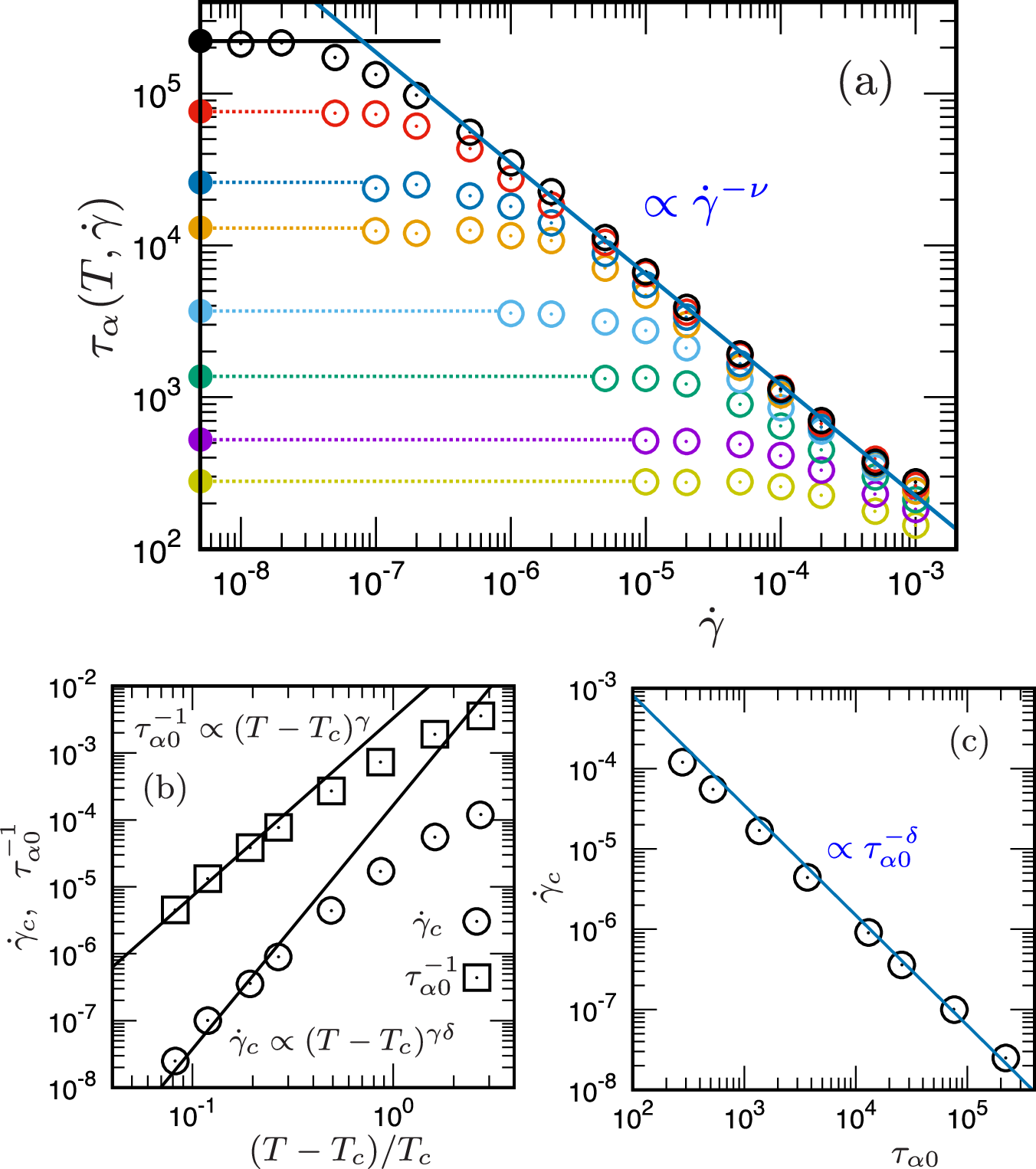

Fig. 4: Shear-rate dependence of the relaxation time and the onset shear rate of the shear thinning in the Gaussian core model (GCM).
From: Universal mechanism of shear thinning in supercooled liquids
a \({\tau }_{\alpha }(T,\dot{\gamma })\) is plotted as a function of \(\dot{\gamma }\). Symbols of different colors represent values at different T; from bottom to top, T × 106 = 10.0 (yellow), 7.0 (purple), 5.0 (green), 4.0 (cyan), 3.4 (orange), 3.2 (blue), 3.0 (red), and 2.9 (black), all of which are above Tc × 106 ≃ 2.68. Closed symbols indicate the equilibrium values τα0(T). For T × 106 = 2.9, black line indicates \({\tau }_{\alpha }={\tau }_{\alpha 0}\propto {\dot{\gamma }}^{0}\), whereas the blue line indicates \({\tau }_{\alpha }\propto {\dot{\gamma }}^{-\nu }\) with ν ≃ 0.73 [Eq. (7)]. b \({\dot{\gamma }}_{c}\) and \({\tau }_{\alpha 0}^{-1}\) are plotted as a function of (T − Tc)/Tc. The lines present the power-law scalings, \({\tau }_{\alpha 0}^{-1}\propto {(T-{T}_{c})}^{\gamma }\) with γ ≃ 2.7 [Eq. (1)] and \({\dot{\gamma }}_{c}\propto {(T-{T}_{c})}^{\gamma \delta }\) with γδ ≃ 3.7 [Eq. (21)]. c \({\dot{\gamma }}_{c}\) is plotted against τα0. The blue line presents the scaling relation of \({\dot{\gamma }}_{c}\propto {\tau }_{\alpha 0}^{-\delta }\) with δ ≃ 1.37 [Eq. (6)].
