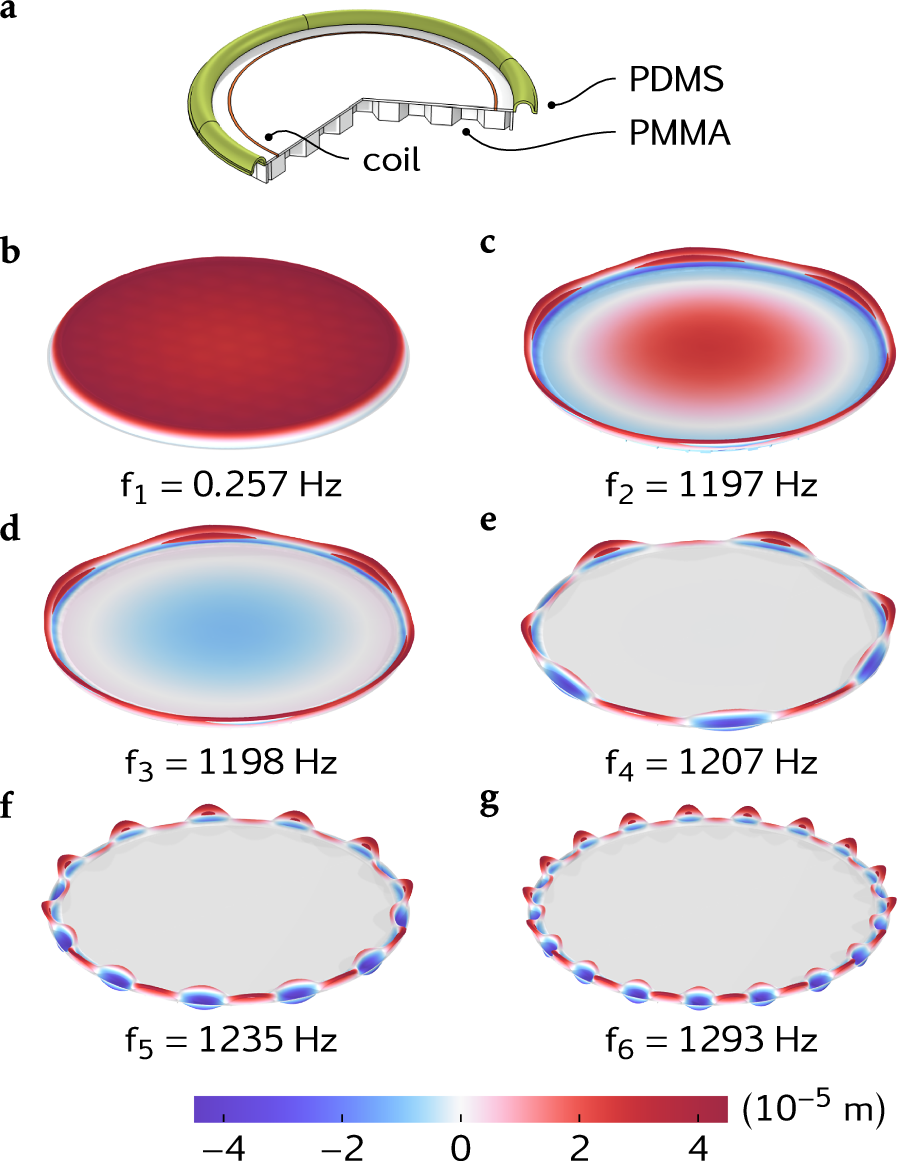

Fig. 8: Eigenmodes of the electromagnetic implementation.
From: Acoustic blackbody through instability-induced softening
a Schematics of the composite plate and coil. b–g First 6 eigenmodes and eigenfrequencies of the system, comprising the composite plate, back cavity, and unstable magnetic force (modeled as a spring foundation with negative spring constant).
