Introduction

Kagome lattices, two-dimensional networks of corner-sharing triangles, offer fertile playgrounds for various quantum phases due to their intrinsic geometrical frustrations and unique band structures, including flat bands, Dirac cones at K points, and van Hove singularities (vHSs) at M points. Especially when the Fermi level is located near vHSs, the divergent density of states (DOS), good nesting between M points, and characteristic orbital nature of vHSs give rise to a wide variety of emergent exotic orders such as spin-density-wave, CDW, loop-current orders, and unconventional SC1,2,3,4,5. Furthermore, recent efforts have been devoted to exploring novel emergent physics originating from an interplay between fascinating orders in kagome materials.

Recently discovered kagome metals AV3Sb5 (A = K, Rb, Cs), consisting of perfect kagome networks of V atoms (Fig. 1a), have attracted considerable attention due to their band structure with the Fermi energy situated near vHSs at M points6. In all alkali compounds, CDW and SC orders coexist with the CDW transition temperature TCDW of 78, 104, and 94 K and the SC transition temperature Tc of 0.9, 0.8, and 2.5 K for A = K, Rb, and Cs, respectively7,8,9. A strong interplay between the SC and CDW orders is implied from the pressure-temperature (P-T) phase diagram, where Tc shows a peak structure around the CDW endpoint10,11,12,13. The CDW order is expected to be quite exotic, with time-reversal symmetry (TRS)14,15,16,17,18,19 and rotational symmetry18,19,20,21,22,23,24 breaking, as well as translational symmetry breaking. The coexistence of bond order (BO) and loop-current order, where the former corresponds to a real CDW order that preserves TRS and the latter corresponds to an imaginary CDW order that breaks TRS, has been theoretically proposed to understand the multiple symmetry breaking in kagome metals5,25.

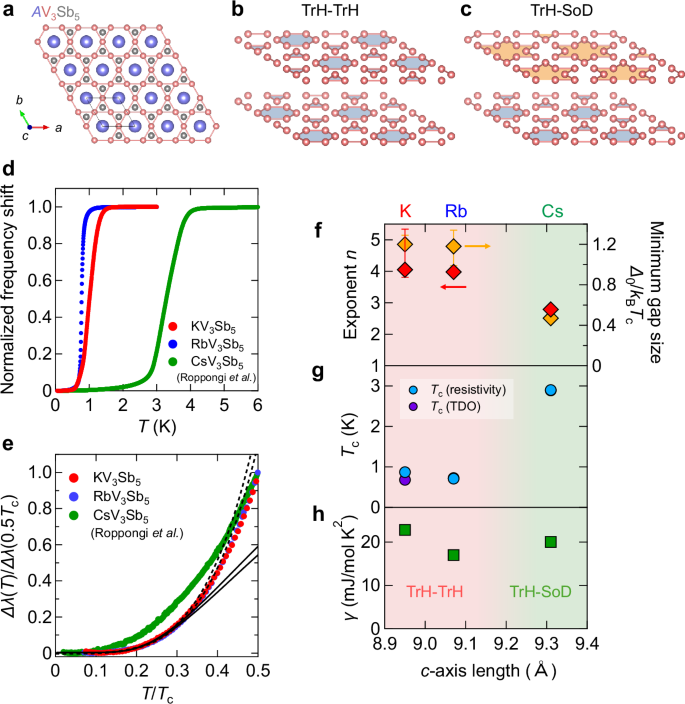

Fig. 1: Crystal structure, charge-density-wave (CDW) modulations, and penetration depth measurements in AV3Sb5 (A = K, Rb, Cs).
Fig. 1: Crystal structure, charge-density-wave (CDW) modulations, and penetration depth measurements in AV3Sb5 (A = K, Rb, Cs).
Full size image

a Crystal structure of AV3Sb5. The three-dimensional bond-order structure in AV3Sb5: tri-hexagonal (TrH) order with π phase shift between neighboring planes (b), and a mixture of TrH and star of David (SoD) orders (c). d Temperature dependence of the normalized frequency shift of the tunnel diode oscillator(TDO) for the pristine samples of AV3Sb5. The data for CsV3Sb5 are taken from ref. 37. e Temperature dependence of the penetration depth below 0.5Tc normalized by the value at 0.5Tc for the pristine samples of AV3Sb5. The black dashed lines and black solid lines represent fitting curves with power-law and fully-gapped models, respectively. f Exponent n obtained from the fitting with power-law below 0.3Tc (red diamonds), minimum gap size Δ0/kBTc obtained from the fully-gapped fitting (orange diamonds) as a function of c-axis length, where Δ0 is the gap minima, kB is the Boltzmann constant, and Tc is the superconducting transition temperature. The error bar is estimated by varying the fitting range \(0.25\le {T}_{\max }/{T}_{{\rm{c}}}\le 0.35\), where \({T}_{\max }\) is the maximum temperature of the fitting range (see Supplementary Note 2). g Tc determined from the resistivity measurements by linearly extrapolating the resistivity in the transition region to zero (light blue circles), and from the TDO measurements, where superfluid density becomes finite (purple circles). h Sommerfeld coefficient γ obtained from the specific heat measurements8,9,41.

Although the overall band structure is similar in all alkali compounds, some differences in electronic states between K/RbV3Sb5 and CsV3Sb5 have been recently pointed out6. For example, although the BO within the kagome planes is established as the 2 × 2 star of David (SoD) or tri-hexagonal (TrH) structure by scanning tunneling microscopy (STM) measurements15,20,26, the out-of-plane modulation pattern of the BO varies between K/RbV3Sb5 and CsV3Sb5. Specifically, 2 × 2 × 2 staggered TrH order with π phase shift (Fig. 1b) is expected in K/RbV3Sb527,28,29,30, and 2 × 2 × 2 and 2 × 2 × 4 more complex patterns with coexisting SoD and TrH orders (Fig. 1c) are discussed in CsV3Sb527,28,31,32,33. Indeed, differences in the momentum-dependent CDW gap and structural deformations associated with the CDW transition have been detected by angle-resolved photoemission spectroscopy (ARPES) and x-ray diffraction measurements between K/RbV3Sb5 and CsV3Sb527,28. As the origin of the distinct CDW patterns, the involvement of vHSs having different orbital characters below the Fermi energy has been theoretically discussed6. It is noteworthy that, in the P-T and hole-doping AV3Sb5−xSnx phase diagrams, the SC phase shows a single peak at the CDW endpoint in A = K and Rb10,11,34, while in A = Cs it shows double peaks: one within the CDW phase and the other at the CDW endpoint12,13,35. These distinct peak structures are likely associated with the different CDW patterns between K/RbV3Sb5 and CsV3Sb5, and subsequent changes in the CDW state under pressure or hole-doping in CsV3Sb527,36.

As for the SC symmetry, theories based on AV3Sb5 have proposed the spin-triplet p- and f-wave, spin-singlet chiral d-wave, and nodal or nodeless s-wave states1,2,3,4. From the experimental point of view, some of the authors have reported systematic penetration depth measurements by changing the impurity concentrations in CsV3Sb5, indicating an anisotropic nodeless s-wave pairing without sign change in the gap function37, in line with nuclear quadrupole resonance38, muon spin relaxation (μSR)39, STM40, and similar penetration depth measurements41,42. Especially a recent ARPES study on CsV3Sb5 reported the coexistence of anisotropic and isotropic SC gaps in the momentum space43, which confirms the validity of two-band model used in ref. 37. On the other hand, the gap structure in K/RbV3Sb5 has been rarely investigated except for a μSR study suggesting a nodal gap structure from a linear-in-T behavior of the superfluid density at low temperatures44. Thus, a systematic understanding of the SC gap structure in the AV3Sb5 family and the relationship between the SC and CDW orders remain elusive.

The interplay between the SC and CDW orders in AV3Sb5 has been studied through the phase diagrams under pressure or chemical substitutions10,11,12,13,34,35. However, these approaches alter the lattice constants, resulting in a change in the band structures, which may mask a pure interrelation between the SC and CDW orders. In this study, we instead focus on impurity effects on the SC and CDW states, which have been applied to study the relationship between SC and CDW orders in cuprates and transition metal dichalcogenides (TMDs) without affecting the crystal and electronic structure45,46. Furthermore, impurity effects are quite useful to investigate the SC symmetry because the conventional SC is robust against nonmagnetic impurities, while unconventional SC states with strong gap anisotropy can be suppressed by disorder37. Moreover, nonmagnetic impurity scatterings induce additional low-energy Andreev bound states when the gap function has a sign change, which can be detected by low-energy quasiparticle excitation measurements47,48. Therefore, the combination of measurements of quasiparticle excitations and their impurity effects is a phase-sensitive bulk probe of the gap symmetry, which can distinguish, for example, fully-gapped s-wave and chiral d-wave pairings. In this study, we performed magnetic penetration depth measurements by the tunnel diode oscillator (TDO) technique combined with a systematic control of impurity concentrations using high-energy electron irradiation in K/RbV3Sb5 to provide a comprehensive understanding of the SC symmetry and the interplay between the SC and CDW orders in the AV3Sb5 family.

Results

Magnetic penetration depth

First, we discuss the SC gap structure of AV3Sb5 from the temperature dependence of the penetration depth in pristine samples. Figure 1d represents the temperature dependence of the normalized frequency shift in the TDO for all alkali compounds. We note that the data of CsV3Sb5 are taken from the previous study37. A slightly broad SC transition in Fig. 1d may be related to the SC phase fluctuations or a short skin depth. Figure 1g summarizes Tc in AV3Sb5, determined from the temperature dependence of the normalized superfluid density ρs(T), which is derived from the change in the penetration depth Δλ(T), as in the case of CsV3Sb537. Figure 1e shows Δλ(T) normalized by the 0.5Tc value in the pristine AV3Sb5 samples. As clearly seen, CsV3Sb5 shows larger excitations at low temperatures compared to K/RbV3Sb5. To evaluate the temperature dependence of these results more quantitatively, we fitted the data below T/Tc < 0.3 with a power-law function, Δλ(T) ∝ Tn, where n ≤ 2 (n > 2) implies a nodal (fully gapped) gap structure. The dashed lines in Fig. 1e represent the fitting curves, and the obtained exponent n values are summarized in Fig. 1f. The result of n > 2 for all AV3Sb5 compounds suggests that the fully-gapped SC is universally realized in the AV3Sb5 family. It is worth noting that this result contradicts the μSR study suggesting a nodal gap structure in K/RbV3Sb544. The discrepancy between our results and the previous report is discussed in Supplementary Note 1. More importantly, although all alkali compounds exhibit fully gapped behaviors, Δλ(T) substantially differs between K/RbV3Sb5 and CsV3Sb5. To clarify the differences, we fitted Δλ(T) below 0.3Tc with a fully gapped model, \(\Delta \lambda (T)\propto {T}^{-1/2}\exp (-{\Delta }_{0}/{k}_{{\rm{B}}}T)\), where Δ0 is the gap minima in the momentum space and kB is the Boltzmann constant. The obtained Δ0/kBTc values are also depicted in Fig. 1f, signifying that Δ0/kBTc in K/RbV3Sb5 is clearly larger than that in CsV3Sb5. Considering that an anisotropic gap structure makes the Δ0 value smaller, our results of the pristine AV3Sb5 samples indicate that the gap structure in K/RbV3Sb5 is more isotropic than in CsV3Sb5.

Impurity effects

Next, we focus on the impurity effects on Tc and TCDW. Figure 2a, b shows the temperature dependence of electrical resistivity ρ(T) in pristine and electron-irradiated samples of KV3Sb5 and RbV3Sb5, respectively. The resistivity progressively increases with irradiation, suggesting the successive introduction of homogeneous impurities by electron irradiation. Defining TCDW from an anomaly in dρ(T)/dT as depicted by arrows in Supplementary Fig. S4a, b, a clear decrease in TCDW with increasing impurity scattering can be observed in both the K and Rb cases, reminiscent of the case in CsV3Sb5. Focusing on the low-T behavior of ρ(T) in Fig. 2c, d, on the other hand, Tc shows a clear increase with irradiation in contrast to TCDW, which is a completely opposite behavior to the CsV3Sb5 case where Tc is suppressed by irradiation. The increase in Tc with disorder is also confirmed by the TDO measurements, as shown in Fig. 2e, f. Figure 2g–i summarizes Tc and TCDW as a function of residual resistivity ρ0 for A = K, Rb, and Cs, respectively. For all compounds, SC survives beyond the ρ0 range where the SC with sign changing in gap functions can survive by the Abrikosov-Gor’kov theory (gray regions in Fig. 2g–i). This result rules out the SC states with symmetry-protected sign changing gap, such as chiral d-wave, p-wave, and f-wave pairing states. From the perspective of the relationship between SC and CDW orders, the opposite trend with decreasing TCDW and increasing Tc indicates strong competition between SC and CDW states. A similar competition has been reported in some cuprates and TMDs45,46. However, the origin of the opposite behavior between K/RbV3Sb5 and CsV3Sb5 even with the similar electronic structure is nontrivial, which will be discussed later.

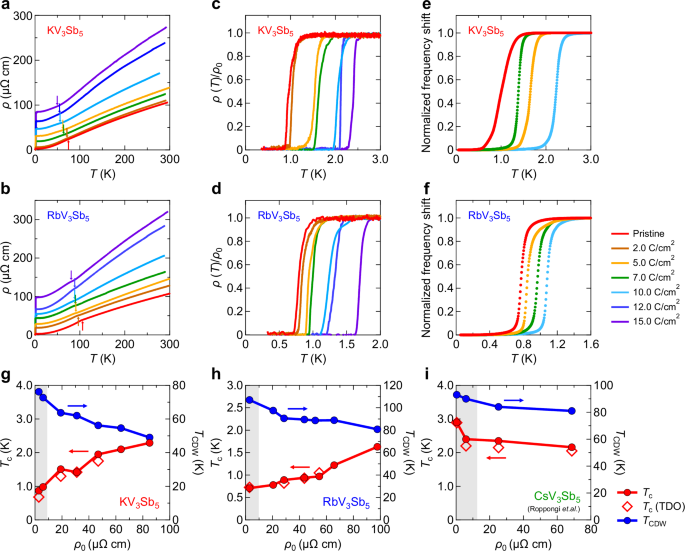

Fig. 2: Impurity effects on the transition temperatures in AV3Sb5 (A = K, Rb, Cs).
Fig. 2: Impurity effects on the transition temperatures in AV3Sb5 (A = K, Rb, Cs).
Full size image

Temperature dependence of the electrical resistivity ρ(T) for various electron irradiation doses in KV3Sb5 (a) and RbV3Sb5 (b). Arrows indicate the charge-density-wave (CDW) transition temperatures TCDW. ρ(T) normalized by the residual resistivity ρ0 around the superconducting transition in pristine and irradiated KV3Sb5 (c) and RbV3Sb5 (d). Temperature dependence of the normalized frequency shift in the tunnel diode oscillator(TDO) measurements for various irradiation doses in KV3Sb5 (e) and RbV3Sb5 (f). Changes in superconducting (SC) transition temperature Tc and TCDW as a function of ρ0 in KV3Sb5 (g), RbV3Sb5 (h), and CsV3Sb5 (i). Tc is obtained from the resistivity (filled red circles) and TDO measurements (open red diamonds). TCDW (filled brue circles) is determined from the resistivity measurements as a temperature at which dρ/dT exhibits dip (see Supplementary Note 4). The gray region represents the parameter space where SC with sign-changing order parameters is expected to survive based on the Abrikosov-Gor'kov (AG) therory. This region is determined using the pair-breaking parameter g = ℏ/τimpkBTc0, where ℏ is the reduced planck constant, τimp = μ0λ2(0)/ρ0, μ0 is the permeability of vacuum, λ(0) is the penetration depth at zero temperature, kB is the Boltzmann constant, and Tc0 is the SC transition temperature of the pristine sample. We estimate λ(0) from the μSR measurements39,44.

The impurity effects on the gap structure can be discussed from the evolution in the low-T behavior of Δλ(T) against electron irradiation, as shown in Fig. 3. As reported in ref. 37, the gap structure in CsV3Sb5 significantly changes with irradiation, indicating that the anisotropic gap structure in the pristine sample becomes more isotropic by impurity scattering via the gap averaging effect in the momentum space. This can be seen in Δλ(T) shown in Fig. 3c, where flattening behaviors are observed at low temperatures in irradiated samples. In K/RbV3Sb5, on the other hand, Δλ(T) remains intact against impurity scattering (Fig. 3a, b), which is consistent with the more isotropic gap structure. This is because when the gap structure of the pristine sample is isotropic, the gap averaging effect can no longer play a role. Furthermore, since Δλ(T) ∝ T2 is expected to be caused by the impurity-induced low-energy Andreev bound states in the dirty SC state with sign-changing gap function, the observed robust behavior of Δλ(T) with exponential T dependence against impurities provides strong evidence for an isotropic sign-preserving SC gap structure in both KV3Sb5 and RbV3Sb5.

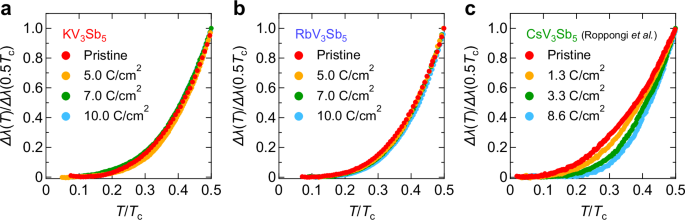

Fig. 3: Impurity effects on the temperature dependence of the penetration depth.
Fig. 3: Impurity effects on the temperature dependence of the penetration depth.
Full size image

Temperature dependence of the penetration depth below 0.5Tc normalized by the value at 0.5Tc for various irradiation doses in KV3Sb5 (a), RbV3Sb5 (b), and CsV3Sb5 (c), where Tc is the superconducting transition temperature.

Discussion

The opposite trend of Tc against irradiation between K/RbV3Sb5 and CsV3Sb5 can be explained as follows based on the observed SC gap structure. Whether Tc increases or decreases with impurities is determined by the balance of two contributions; one is the relationship between SC and coexisting electronic orders, and the other is the gap-averaging effect in the momentum space. Here, the former increases Tc when the order competing with SC is suppressed, and the latter decreases Tc. From Δλ(T) shown in Fig. 3, the gap-averaging effect is substantial in CsV3Sb5, while that in K/RbV3Sb5 is relatively weak. Therefore, although the latter contribution, which reduces Tc, plays a significant role in CsV3Sb5, we can purely detect the former contribution originating from the intense competition between SC and CDW orders in K/RbV3Sb5. Here it should be noted that we do not consider an impurity-induced change of the CDW pattern in CsV3Sb5 because the amount of impurity introduced by irradiation is low enough to maintain the double-peak structure of the SC phase in the P-T phase diagram37.

Having established the isotropic s-wave SC without sign reversal in the gap function in K/RbV3Sb5, we now discuss ingredients inducing the difference in gap anisotropy between K/RbV3Sb5 and CsV3Sb5. One possibility is the sample quality of the pristine samples since ρ0 is lowest in CsV3Sb5. Indeed, while ρ0 of CsV3Sb5 in ref. 37 is as small as 0.4 μΩcm, ρ0 of KV3Sb5 and RbV3Sb5 in this study is 2.8 and 2.9 μΩcm. However, although the 1.3 C/cm2 electron-irradiated CsV3Sb5 shows ρ0 = 5.9 μΩcm37, which is higher than the values in the pristine K/RbV3Sb5 samples, this sample still exhibits a much smaller value Δ0/kBTc ≈ 0.65 showing stronger anisotropy than in the pristine K/RbV3Sb5 samples. Therefore, the impurity effects cannot wholly explain the isotropic gap structure in K/RbV3Sb5.

Alternatively, we focus on the reconstructions of the band structures in AV3Sb5 induced by the distinct 2 × 2 × 2 BO states. We consider the p-type conduction band composed of the dxz-orbitals. In the original kagome lattice model in the absence of the BO, the p-type band possesses three vHS points at M-points of the original Brillouin zone (BZ). The energy of the vHS points is slightly below the Fermi level; EvHS ≈ −0.06 eV for KV3Sb5, EvHS ≈ −0.08 eV for RbV3Sb5, and EvHS ≈ −0.1 eV for CsV3Sb5. The p-type band near the vHS points with large dxz-orbital DOS plays an essential role in the emergence of CDW orders (such as the BO and the loop-current order) as well as the SC4,5.

Figure 4a shows the 2 × 2 BO in the dxz-orbital kagome lattice model with hopping modulations δt ≠ 0: the TrH (δt > 0) and the SoD (δt < 0) BO states. In these BO states, three vHS points are moved to the same Γ-point in the folded BZ, forming a newly reconstructed band structure made of dxz-orbitals. Below, we analyze a three-dimensional dxz-orbital model with the kagome lattice given in Fig. 4a for simplicity. The in-plane nearest-neighbor hopping integral is t = −0.5 eV, and the inter-layer hopping integral t⊥ is much smaller than 0.01∣t∣ in magnitude. Hereafter, we set t⊥ → 0 to simplify the discussion. Figure 4b shows the band structure at the kz = 0 plane without the BO, while Fig. 4c–e shows the band structure at the kz = 0 in the π-shifted TrH-TrH, π-shifted SoD-SoD, and vertically stacked TrH-SoD BO states, respectively. (Here, we set the BO parameter ∣δt∣ = 0.015 eV for each layer.) The corresponding Fermi surfaces are shown in Fig. 4f–i, respectively. In the absence of the BO, six vHS energy levels are almost degenerated (EvHS ≈ −0.05 eV), composing two small dxz-orbital Fermi pockets with large DOS, as shown in Fig. 4f. In the TrH-TrH (δt > 0) and the SoD-SoD (δt < 0) BO states, nearly sixfold degenerated vHS energy levels split into fourfold states at EvHS −2δt and twofold states at EvHS +4δt. In the TrH-TrH BO state, the hybridization gap appears around Γ point for 4∣δt∣ ≳ ∣EvHS∣, so the two small Fermi pockets disappear, as shown in Fig. 4g. In the TrH-SoD BO state shown in Fig. 4e, six vHS energy levels splits into two single states at EvHS ± 4δt and two twofold states at EvHS ±2δt. In this case, single small Fermi pocket survives even for 4∣δt∣ ≳ ∣EvHS∣, as shown in Fig. 4i. We note that this characteristic split of vHSs is also observed in the first-principles calculations shown in Supplementary Note 5. However, it should be noted that folded Fermi pockets are generally difficult to observe in the photoemission spectroscopy due to their intrinsically weak intensity. Figure 4j compares the dxz-orbital DOS in the three (TrH-TrH, SoD-SoD, TrH-SoD) 2 × 2 × 2 BO states. Here, we analyze the three-dimensional (dxz, dyz)-orbital kagome lattice model introduced in ref. 49 to obtain realistic DOS. In the TrH-TrH BO state, the DOS at the Fermi level is reduced by forming the hybridization gap around Γ-point, while the DOS is essentially unchanged in the SoD-SoD phase. In the TrH-SoD BO state, the DOS at the Fermi level is also reduced by disappearing one of two Fermi pockets around Γ-point. Therefore, we theoretically revealed that the emergent dxz-orbital band structure strongly depends on the three-dimensional BO structure. Note that the dxz-orbital DOS at the Fermi level is about 25% of the total d+p-orbital DOS according to the first-principles study for AV3Sb5.

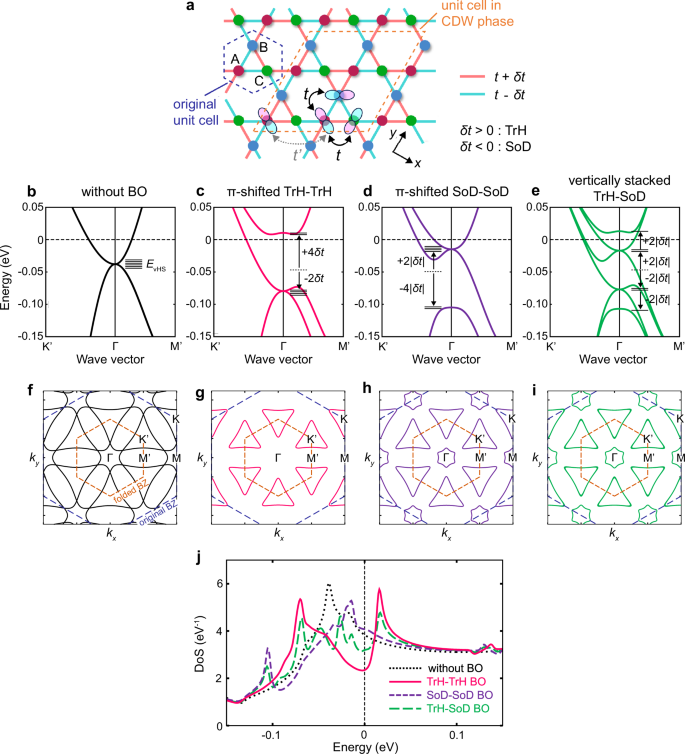

Fig. 4: Band structures in the bond-order (BO) states calculated by dxz-orbital kagome lattice model.
Fig. 4: Band structures in the bond-order (BO) states calculated by dxz-orbital kagome lattice model.
Full size image

a Tri-hexagonal (TrH) BO (δt > 0) and Star of David (SoD) BO (δt < 0) in the two-dimensional dxz-orbital kagome lattice model. Hopping integrals are shown. Band structure at the kz = 0 plane without BO (b), and with TrH-TrH BO (c), SoD-SoD BO (d), and TrH-SoD BO (e). Here, we put the inter-layer hopping integral t⊥ → 0 to simplify the discussion. We set BO parameter ∣δt∣ = 0.015 eV in (c–e). Fermi surfaces without BO (f), and with π-shifted TrH-TrH BO (g), π-shifted SoD-SoD BO (h), and vertically stacked TrH-SoD BO (i). j dxz-orbital density of states (DoS) in the TrH-TrH BO, SoD-SoD BO, TrH-SoD BO states for ∣δt∣ = 0.015 eV.

Considering the reported differences in the CDW patterns (the TrH-TrH state in K/RbV3Sb5 and the TrH-SoD state in CsV3Sb5)27,28,29,30,31,32,33, the small Fermi pockets around the folded Γ-point composed of the three vHS states survive only in CsV3Sb5 at low temperatures. Note that the above arguments are still valid even if a 2 × 2 × 4 BO state is realized in CsV3Sb5 because the presence of the SoD layer is critical to maintain the vHS states around the folded Γ-point. Theoretically, the dxz-orbital vHS states play an essential role in the quantum fluctuations and SC4,5. Therefore, although the stacking pattern of BO in our samples is not experimentally confirmed, we expect substantial BO fluctuations derived by the dxz-orbital vHSs and associated electron correlations only in CsV3Sb5, which induce an anisotropic gap structure in CsV3Sb5 in contrast to an isotropic gap in K/RbV3Sb5. Furthermore, Tc of CsV3Sb5 is more than two times higher than that of K/RbV3Sb5 (Fig. 1g) even though the values of Sommerfeld coefficient γ indicate comparable DOS among AV3Sb5, as depicted in Fig. 1h, evidencing the critical role of the BO fluctuations to enhance Tc in kagome superconductors. Our conclusion implies that the double-peak structure of Tc in the P-T and hole-doped phase diagrams of CsV3Sb5 may be related to a change in the CDW patterns and associated BO fluctuations across the peak within the BO phase.

Here, we should mention a theoretical study of impurity effects on kagome materials suggesting that sign-changing gap symmetries, including d-wave, and chiral d-wave states are robust against nonmagnetic disorder because of the sublattice polarization of Fermi surfaces50. However, this argument is valid when defects on only the V sites are taken into account, and, in other words, defects in the alkali and Sb sites may destroy the sign-changing SC state. Indeed, we can expect a large number of defects on the alkali and Sb sites induced by electron irradiation (see Supplementary Note 3), and the observed Tc reduction in CsV3Sb537 evidences a finite pair-breaking effect of the nonmagnetic impurities. Moreover, the gap averaging effect of the impurity scatterings observed in CsV3Sb5 cannot be explained by the symmetry-protected gap structures. Therefore, our discussion about the gap symmetry in AV3Sb5 is still valid even with the orbital-polarized Fermi surfaces.

It has also been proposed that the vHS derived from the dxy orbital may contribute to CDW formation51,52. While the strong electron correlation of the dxz orbital, which gives the largest DOS near the Fermi level, plays the dominant role, the dxy orbital may also assist the CDW cooperatively via intersite Coulomb or electron-phonon interactions.

Conclusions

In conclusion, we have studied the impurity effects on the SC gap structure and transition temperature in K/RbV3Sb5 from the penetration depth measurements and electron irradiation. By combining our results and the previous report on CsV3Sb5, we provide a comprehensive understanding of the SC gap structure in AV3Sb5 (A = K, Rb, Cs): quite anisotropic gap in CsV3Sb5 and isotropic gap in K/RbV3Sb5. Taking into account the differences in the band structures, it turns out that the vHSs essential for BO fluctuations depend sensitively on the patterns of CDW. Significantly developed BO fluctuations in CsV3Sb5 with the SoD pattern play a crucial role in inducing the strong SC gap anisotropy and the relatively high Tc. Furthermore, Tc and TCDW clearly show opposite trends against disorder, suggesting intense competition between SC and CDW phases. Our systematic studies on AV3Sb5 shed new light on the interplay between unconventional s-wave SC and CDW orders in kagome materials and hopefully promote further exploration of novel physics originating from an interplay of exotic orders in kagome systems.

Methods

Single crystal growth

High-quality single crystals of K/RbV3Sb5 were grown by a modified self flux method using K ingot (Alfa, 99.95%), V powder (Sigma, 99.9%), and Sb shot (Alfa, 99.999%) for KV3Sb5 and Rb ingot (Alfa, 99.75%), V powder (Sigma, 99.9%,) and As shot (Alfa, 99.999%) for RbV3Sb5, respectively. The mixture was placed in an alumina crucible, which was then sealed in a quartz ampoule under high vacuum. The sealed ampoule was heated to 1000 ∘C, soaked at this temperature for 24 hours, and subsequently cooled down. Single crystals were then mechanically extracted from the flux. All preparation steps, except for the sealing and heating processes, were carried out in an argon glovebox.

Magnetic penetration depth measurement

The temperature dependence of the penetration depth was measured by the tunnel diode oscillator (TDO) technique at 13.8 MHz in a dilution refrigerator. The sample was put at the center of a coil forming the TDO circuit, and the relative change of the penetration depth Δλ(T) = λ(T) − λ(0) is directly obtained from the shift of the resonant frequency of the TDO circuit Δf(T) with the relation Δλ(T) = GΔf(T) = G{f(T) − f(0)}, where the geometrical constant G is determined by the shape of the sample. Here, the magnetic field induced by the coil is perpendicular to the kagome planes with a magnitude of the order of μT, which is much lower than the lower critical filed of the order of mT, confirming the Meissner state of our samples.

Electrical resistivity measurement

The electrical resistivity was measured by the four-terminal method with dc current applied within the ab plane in a 3He refrigerator for T < 5 K and in a home-made probe for T > 4.2 K. The delta-mode of Keithley model 6221 and 2182A was used to eliminate the offset of dc resistivity. We confirmed that the applied current was low enough that the Joule heating can be ignored.

Electron irradiation

Electron irradiation with the incident energy of 2.5 MeV was performed on the SIRIUS Pelletron accelerator in Laboratoire des Solides Irradies (LSI) at Ecole Polytechnique. Here, energy transfer from the irradiated electrons to the lattice exceeds threshold energy for the formation of vacancy-interstitial Frenkel pairs, which act as point defects. We performed irradiation around 20 K to prevent the defect migration and agglomeration. Although partial annealing of the introduced defects occurs on warming to the room temperature, uniform point defects are kept due to the lower migration energy. Electron irradiation has no pressure or doping effect since it does not change the lattice constants and carrier density.

Theoretical calculations

In this study, we analyze an effective Hamiltonian model based on an extended unit cell with 24 sites49. Each unit cell consists of two layers, with 12 V sites per layer. The Hamiltonian is given by:

$$H=\sum\limits_{i,j,l,m,\sigma }{t}_{i,j}^{l,m}{c}_{i,l,\sigma }^{\dagger }{c}_{j,m,\sigma }+\sum\limits_{ < i,j > ,l,m,\sigma }\delta {t}_{i,j}{c}_{i,xz,\sigma }^{\dagger }{c}_{j,xz,\sigma }.$$

Here, \({c}_{i,l,\sigma }^{\dagger }\) is the creation operator for a spin-σ electron in orbital l (either dxz or dyz) on the i-th site (i = 1–24). The hopping parameters \({t}_{i,j}^{l,m}\) are chosen to approximately reproduce the three-dimensional Fermi surface obtained from first-principles calculations. Specifically, the onsite energy of the dyz orbital is set to 2.3. The nearest-neighbor hoppings are set as follows: t = − 0.5 for intra-orbital dxz hopping, tyz = − 1 for dyz, and txz-yz = ±0.05 for inter-orbital dxz-dyz hopping. The hopping across two sites within the dxz orbital is set to \(t{\prime} =-0.08\) (see Fig. 4a). We set interlayer hopping of the intra-dyz orbital \({t}_{yz,yz}^{\perp }=0.02\) for the site directly above and those belonging to the same triangle. The interlayer hopping for the dxz orbital is neglected due to its small magnitude. The unit for all hopping parameters is eV.

The bond order is introduced as a modulation of the nearest-neighbor hopping in the dxz orbital, \(\delta {t}_{i,j}^{b}=\pm \delta t\), with the modulation pattern shown in Fig. 4a.

For Fig. 4, we used a 240 × 240 × 120 k-mesh. The electron number was set to N = 17.8. For Fig. 4b–i, in order to clarify the changes in the band structure and Fermi surface, we used a single-orbital model with only the dxz orbital and set N = 11.6.
