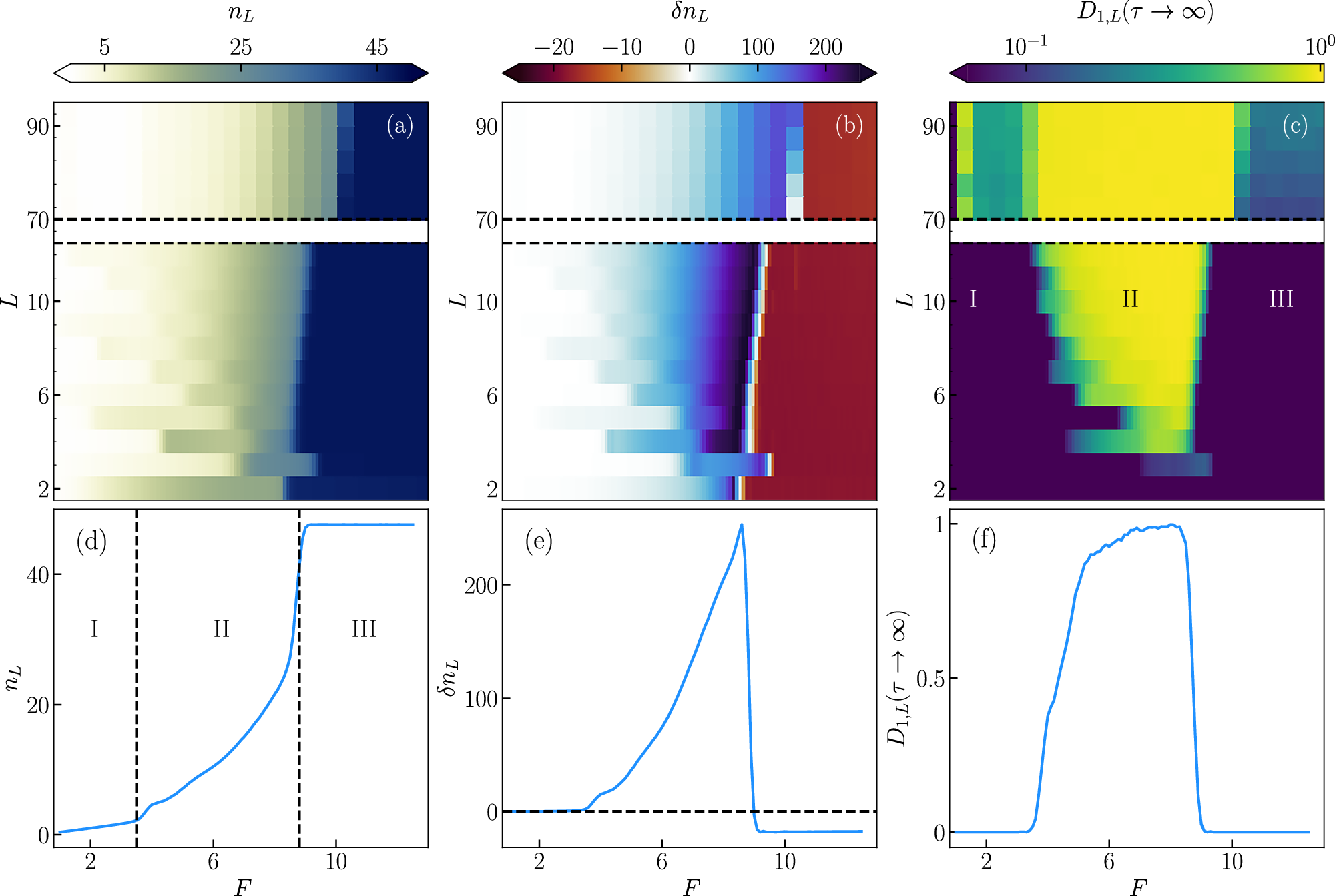

Fig. 2: Nonequilibrium steady-state phase diagram.

From: Chaotic and quantum dynamics in driven-dissipative bosonic chains

Fig. 2: Nonequilibrium steady-state phase diagram.

Steady-state properties of the last resonator in the chain,  = L, as functions of the chain length L and drive strength F. a Photon number nL. b Photon-number fluctuation δnL, defined in Eq. (5). c Saturation value of the steady-state phase OTOC, D1,L(τ → ), defined in Eq. (6). The three distinct regimes labeled I, II, and III are discussed in throughout the “Results" section. df Cuts of ac, respectively, at fixed chain length L = 10. Results are computed by averaging over Ntraj = 103 independent Wigner trajectories. Statistics are further improved by averaging over a time window Δτ after reaching the NESS: Δτ = 25 for D1,L(τ → ), and Δτ = 2 × 103 for nL and δnL. Throughout the manuscript, the dissipation rate γ sets the unit of energy, and the other parameters are fixed to Δ = 2.5, J = 2, and U = 0.1.
