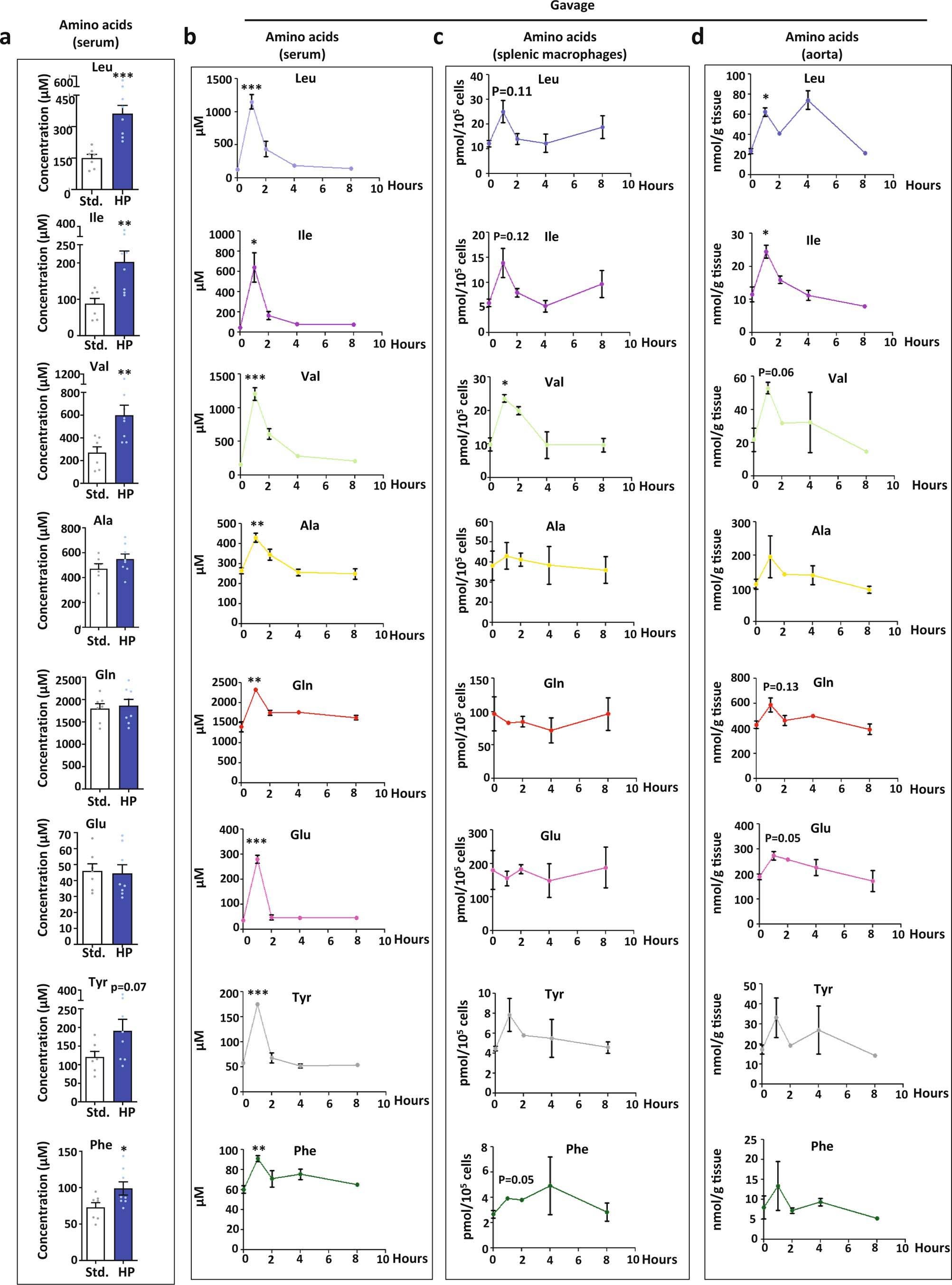

Extended Data Fig. 2: Levels of select L-amino acids in serum, aorta, and splenic macrophages after high protein challenge.
From: High-protein diets increase cardiovascular risk by activating macrophage mTOR to suppress mitophagy
(a) Serum levels of 8 L-amino acids by mass spectrometry from mice fed standard or high protein Western diets for 8 weeks (Std. WD: n = 8; HP WD: n = 8). (b–d) Time course measurement of the levels of 8 L-amino acids in serum (n = 3) (b), splenic macrophages (n = 2) (c), and atherosclerotic aortas (n = 2) (d) by mass spectrometry after high protein gavage. For all graphs, data are presented as mean ±SEM. *P < 0.05, **P < 0.01, ***P < 0.001, two-tailed unpaired t-test for a and one-way ANOVA with Dunnett’s test for b–d.
