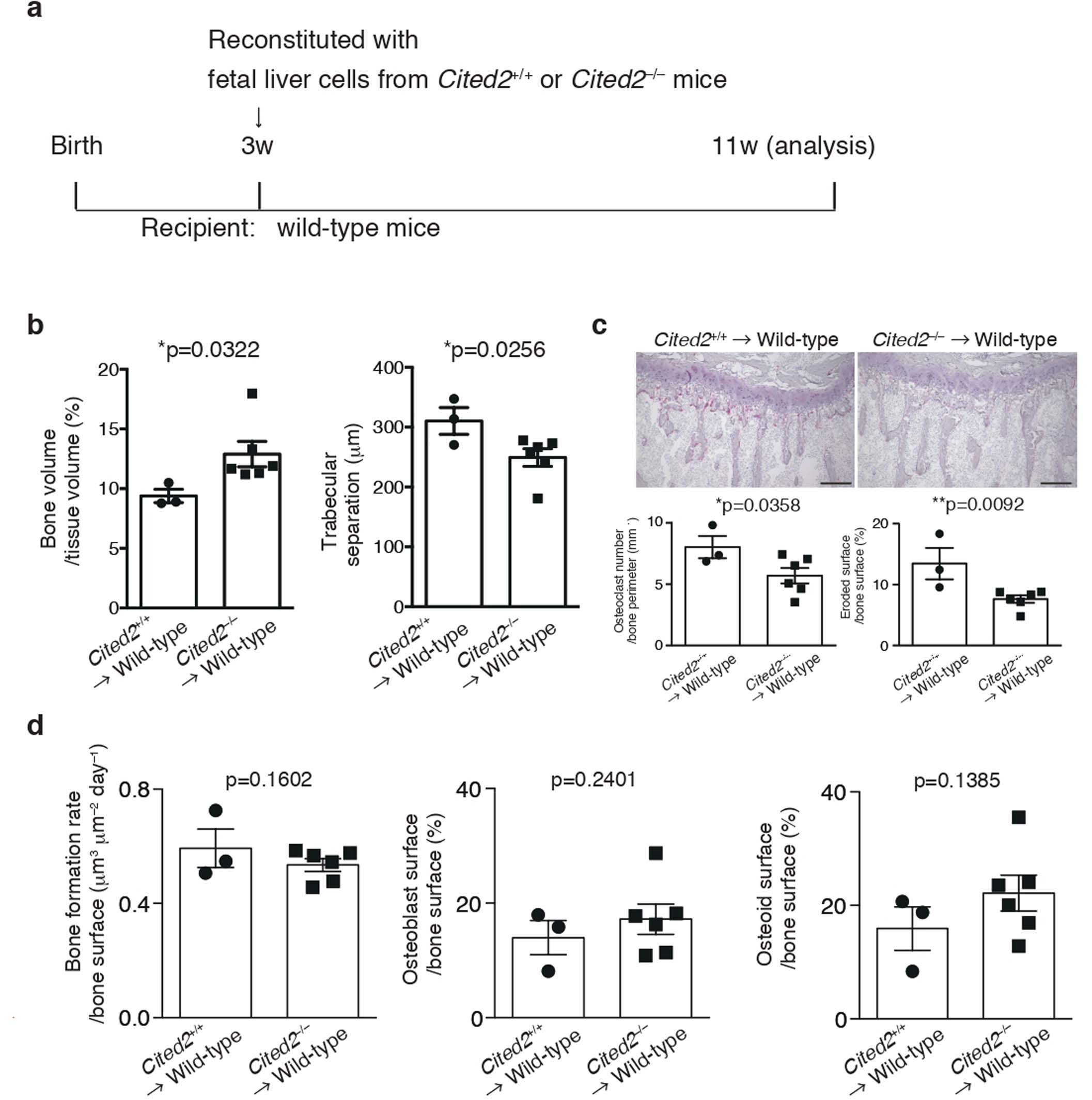

Extended Data Fig. 7: Fetal liver transfer experiments using Cited2−/ – mice.
From: Stepwise cell fate decision pathways during osteoclastogenesis at single-cell resolution
a, Schematic of the experimental setting for the fetal liver transfer into wild-type mice using Cited2+/+ or Cited2−/− − fetal liver cells. b, The μCT parameters of the femur of Cited2+/+ (n=3) and Cited2–/− – (n=6) bone marrow chimeric mice. Data are represented as mean ± SEM. P values were calculated using one-sided Student’s t-test. c, d, Bone histomorphometric analysis of the tibiae of Cited2+/+ (n=3) and Cited2−/− − (n=6) bone marrow chimeric mice. Scale bars, 200 μm. Quantification of osteoclastic bone resorption (c) and osteoblastic bone formation (d) were shown. Data are represented as mean ± SEM. P values were calculated using one-sided Student’s t-test.
