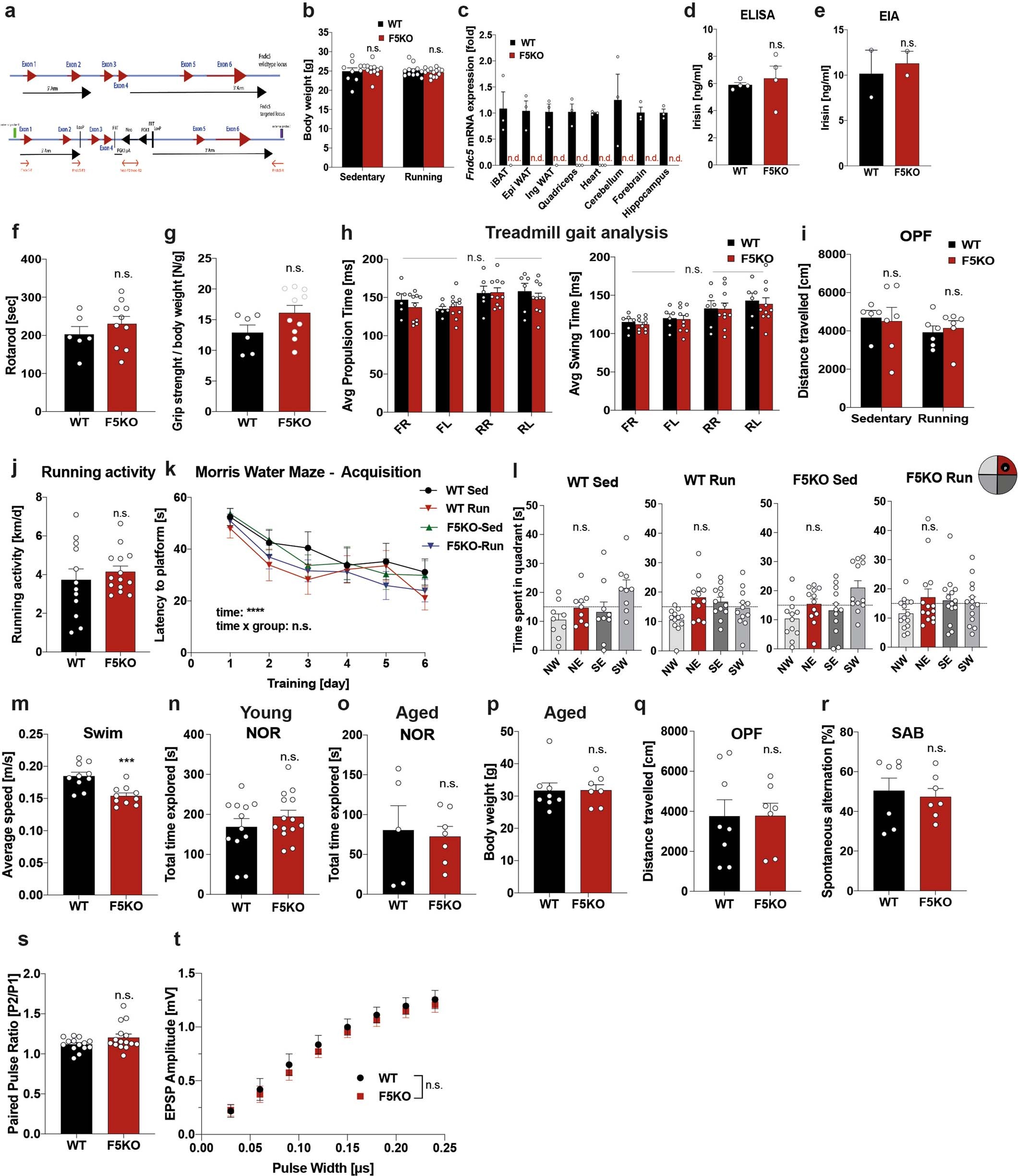

Extended Data Fig. 1: Irisin deletion impairs cognitive function in exercise and aging.
From: Exercise hormone irisin is a critical regulator of cognitive function
a, Schematic of flox targeting-construct for the Fndc5 locus. b, Bodyweights (WT-sed n = 9; WT-run n = 12; F5KO-sed n = 12; F5KO-run, n = 14). c, qPCR of Fndc5 mRNA expression (n.d.: no detection) (n = 3 per group). d and e, Plasma irisin with commercial ELISA (n = 4 per group) (d) or EIA (n = 2 per group) (e). f, Rotarod, g, Grip strength, h, Gait scan analysis: average propulsion (left) and swing time (right). FR = front right limb, FL = front left, RR = rear right, RL = rear left (WT n = 6, F5KO n = 10), i, Open field test (OPF) (WT-sed n = 5; WT-run n = 6; F5KO-sed n = 6; F5KO-run n = 6), and j, Running activity and k and l, Morris-water-maze (MWM): latency to reach target platform (k) and 24 h probe trial in acquisition (l). NE (red bar) was the target quadrant (WT-sed n = 9; WT-run, n = 12; F5KO-sed n = 12; F5KO-run, n = 14). m, Swim speed, 9-months-old mice (WT, n = 10, F5KO, n = 10). n and o, Novel object recognition (NOR) task in young (n) (WT n = 12, F5KO, n = 14) and aged mice (o) (WT n = 5, F5KO, n = 7). p and q, Bodyweights (p) and Open field test (OPF) (q) for aged mice (WT n = 8, F5KO, n = 7). r, Spontaneous alternation behavior (SAB) in aged mice (WT, n = 7, F5KO, n = 7). s and t, Electrophysiology in DG using acute slices, paired pulse ratio (s) and EPSP input-output curve (t) (WT n = 14, F5KO n = 15 slices, 7 animals per group,). RM-Two-way ANOVA (k, t), Two-way ANOVA (b, h, i), One-way ANOVA. Significance was assigned only if time spent in the target quadrant was significantly different from all other quadrants (l), Two-tailed t-test (d-g, j, m-s). ***p < 0.001, ****p < 0.0001 n.s.= not significant. Data represented as mean ± SEM of biologically independent samples. See source data for exact p-values.
