Extended Data Fig. 8: Characterization of the entry and arousal pattens during UIH in WT and UCP1-KO mice. | Nature Metabolism

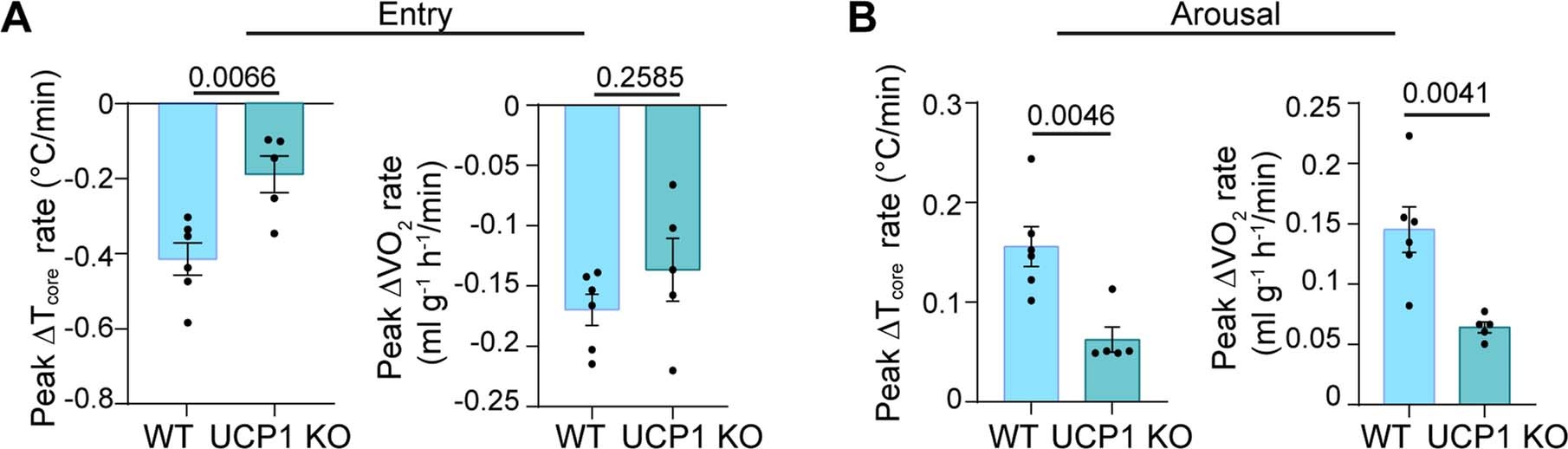

Extended Data Fig. 8: Characterization of the entry and arousal pattens during UIH in WT and UCP1-KO mice.

From: Induction of a torpor-like hypothermic and hypometabolic state in rodents by ultrasound

Extended Data Fig. 8: Characterization of the entry and arousal pattens during UIH in WT and UCP1-KO mice.The alternative text for this image may have been generated using AI.

Quantification of the body temperature change rate (peak ΔTcore rate) and VO2 change rate (peak ΔVO2 rate) during the entry (A) and arousal of UIH (B) for WT and UCP1-KO groups. Error bars denote s.e.m. Each dot represents one mouse (female). N = 6 mice for the WT group and 5 mice for the UCP1-KO group. P values were calculated using unpaired two-tailed t-tests.

Source data
