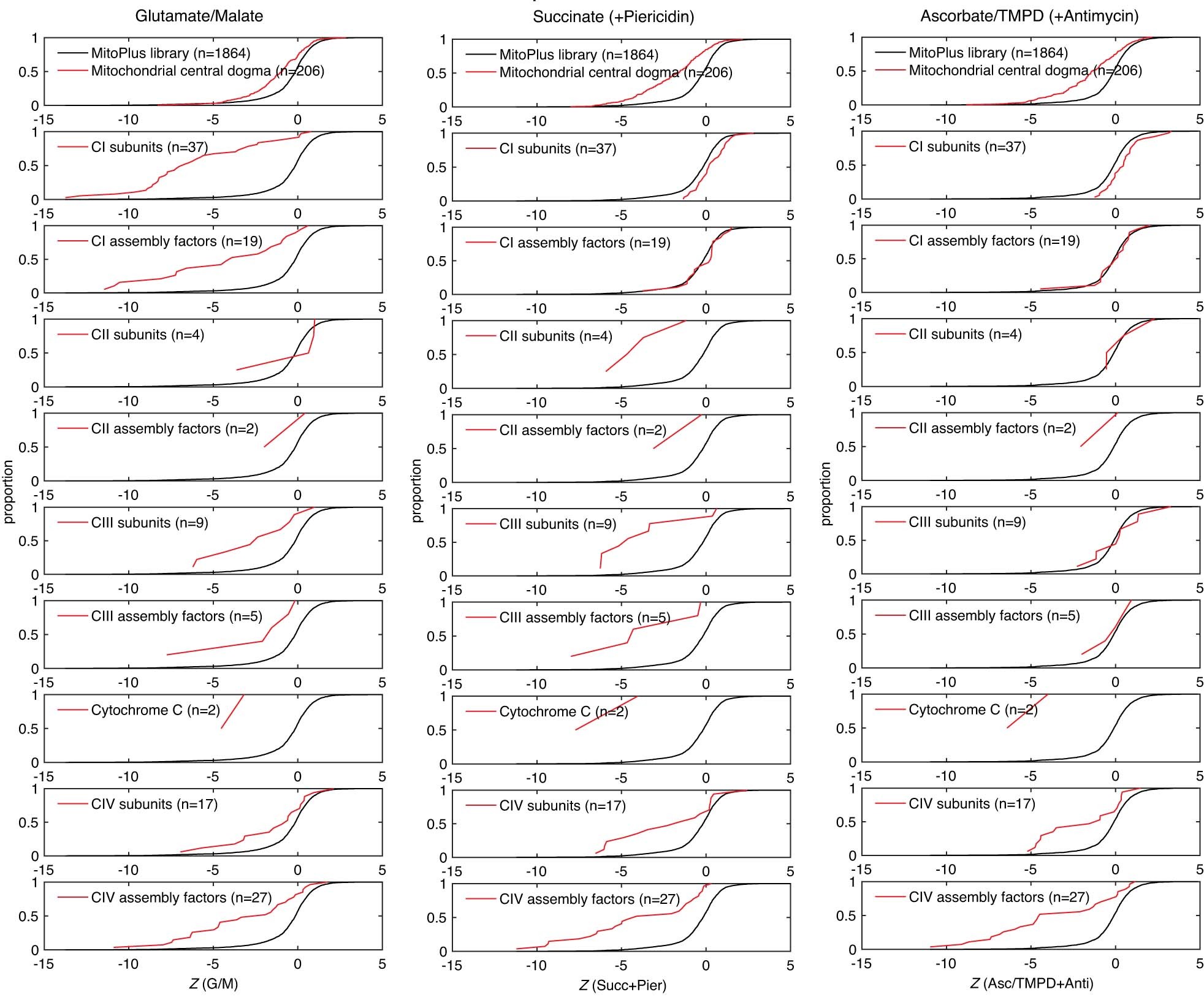

Extended Data Fig. 1: Specificity across PMF-seq screens.
From: PMF-seq: a highly scalable screening strategy for linking genetics to mitochondrial bioenergetics
OXPHOS gene sets are annotated in the MitoCarta3.0 database and the cumulative distribution function of each selected gene set (red curve) is plotted against that of all genes (black curve) within the MitoPlus library in PMF-seq experiments using glutamate/malate (left column), succinate (middle column), or ascorbate/TMPD (right column) as substrates in A375 cells (Fig. 2a).
