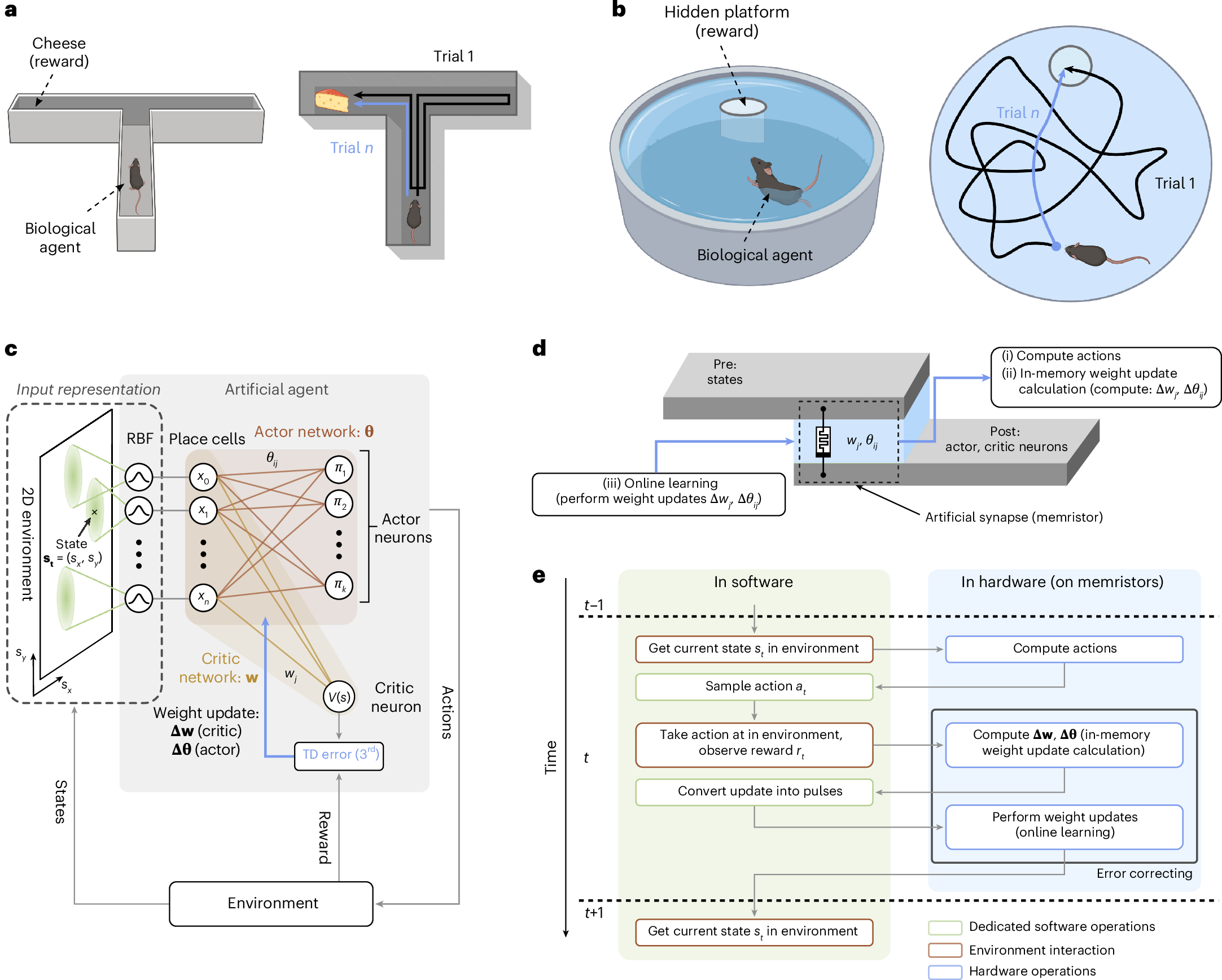

Fig. 1: Bio-inspired RL.
From: Actor–critic networks with analogue memristors mimicking reward-based learning
