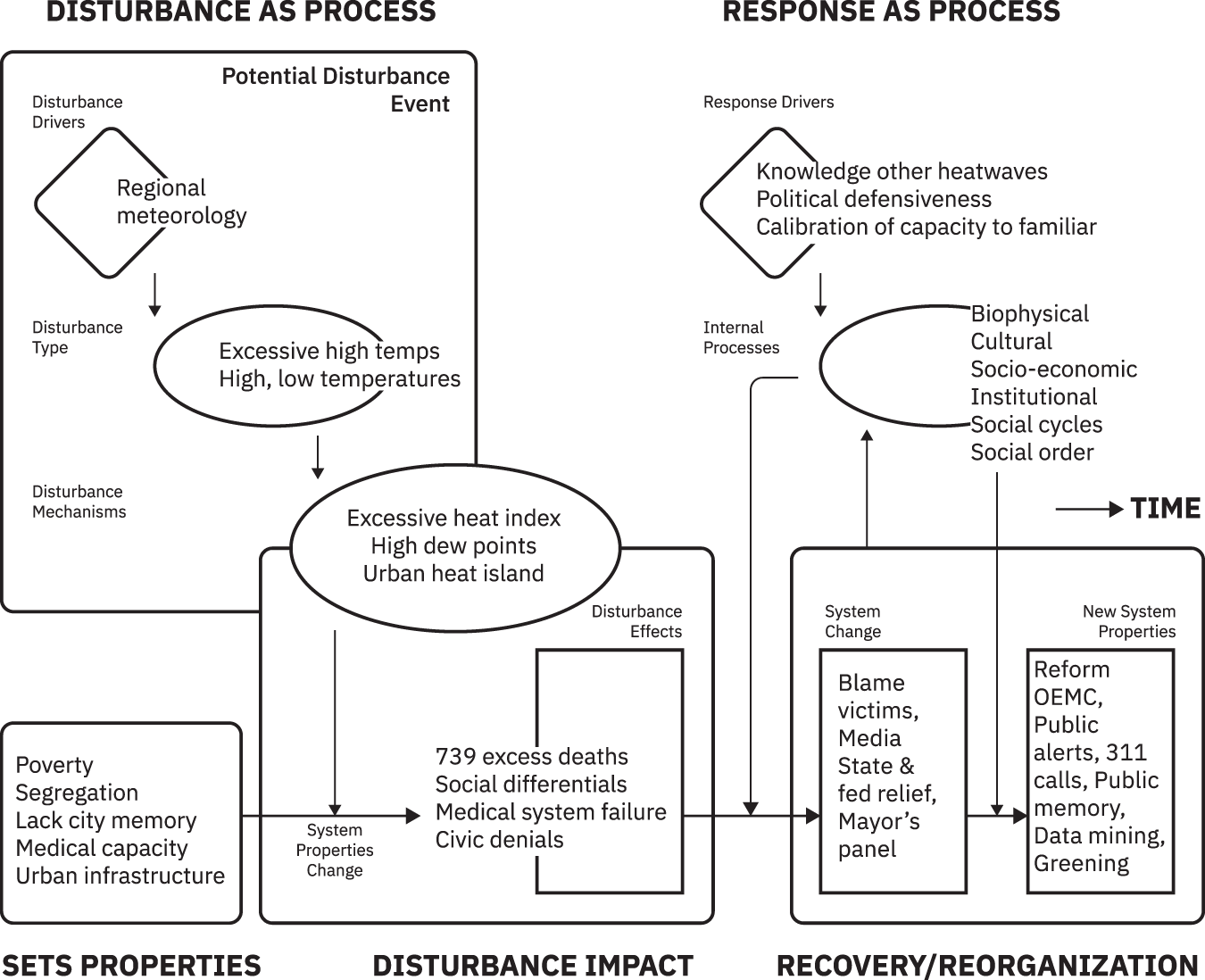

Fig. 3: A model template for disaggregating disturbance as a process, illustrated by the Chicago heat wave of July, 1995.

Events embody mechanisms (forces) which interact with the existing structure of the system to generate change in the system structure. Subsequently, the system can respond based on the changes caused by the disturbance event interacting with the capacities and drivers in the post-disturbance system. The system properties shown in the Recovery/Reorganization box are those that will interact with subsequent disturbances. OEMC stands for Office for Emergency Management and Communication. The number 311 refers to the service request line in many American cities, including Chicago. The time arrow toward the right of the diagram indicates that subsequent instances of disturbance and response can follow this one. The template is modified from Grimm et al.¹⁰.
