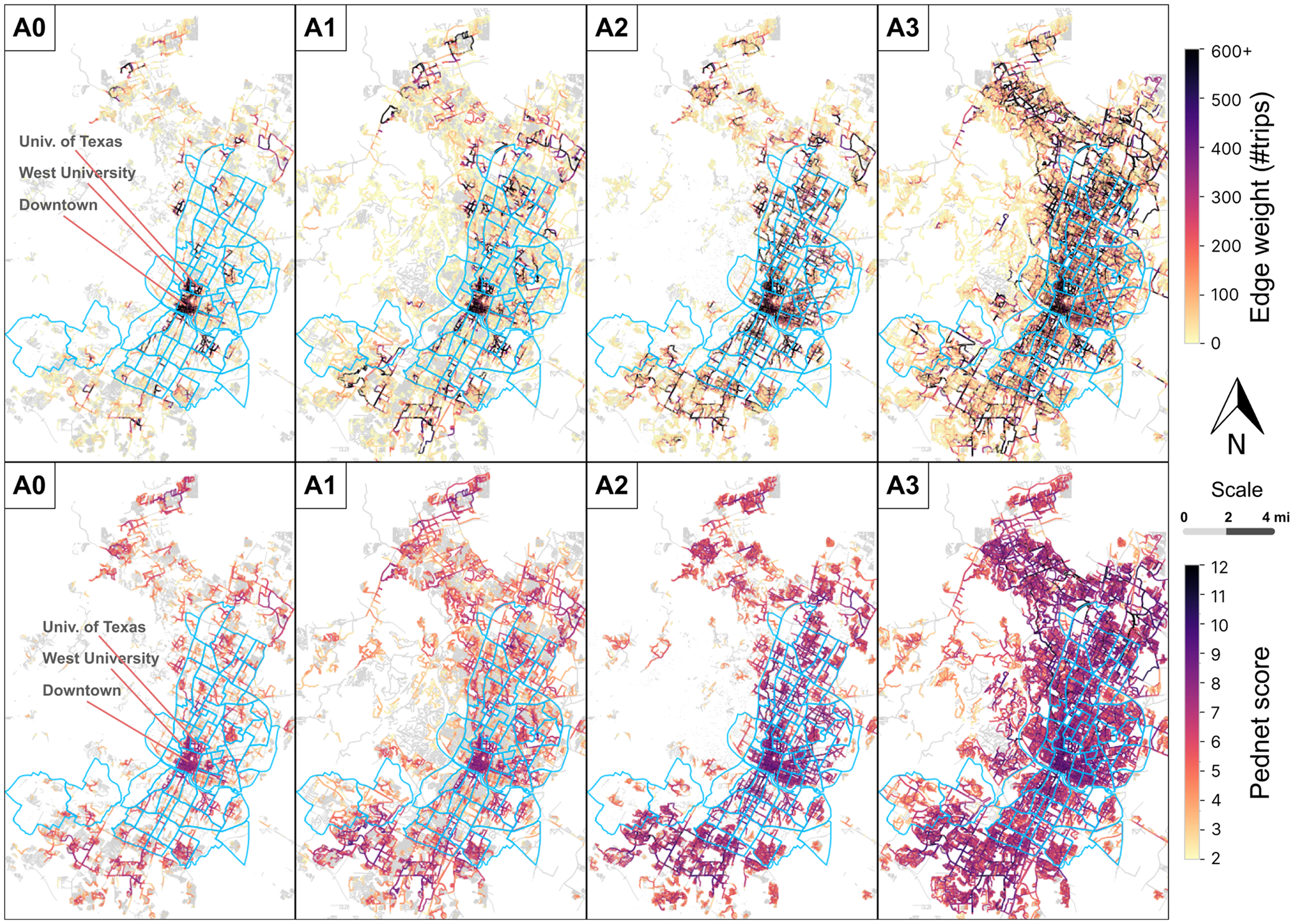

Fig. 3: Visualization of edge weights and pednet scores.
From: A link criticality approach for pedestrian network design to promote walking
Edge weights (top row) and pednet scores (bottom row) by pednet variant in Austin (labels on the top left). Darker shades reflect more connected and used sidewalk and crosswalk segments. Neighborhood outlines are shown in light blue. Maps produced using Python.
