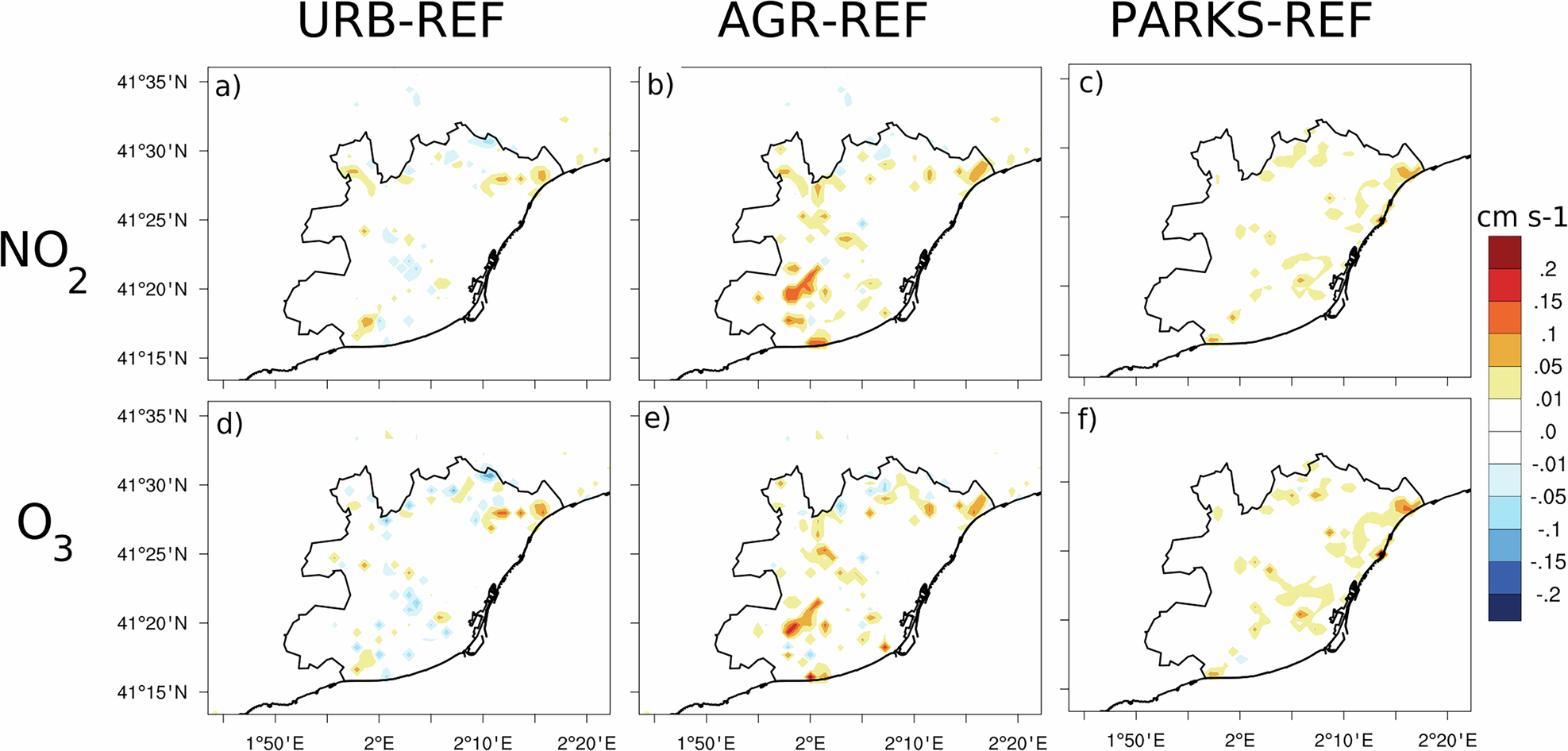

Fig. 2: Dry deposition average changes.

Average changes (in cm s⁻¹) for NO₂ (panels a−c) and O₃ (d–f) due to urbanization (URB-REF, first column), agriculture (AGR-REF, second column) and urban parks (PARK-REF, third column). For the dry deposition analysis the 6–21 UTC has been chosen because is the time of the day that this process is more significant.
