Extended Data Fig. 10: Validation of the digital twin for the boxes in the middle layer of pallets in the container.

From: Digital twins enable the quantification of the trade-offs in maintaining citrus quality and marketability in the refrigerated supply chain

Extended Data Fig. 10

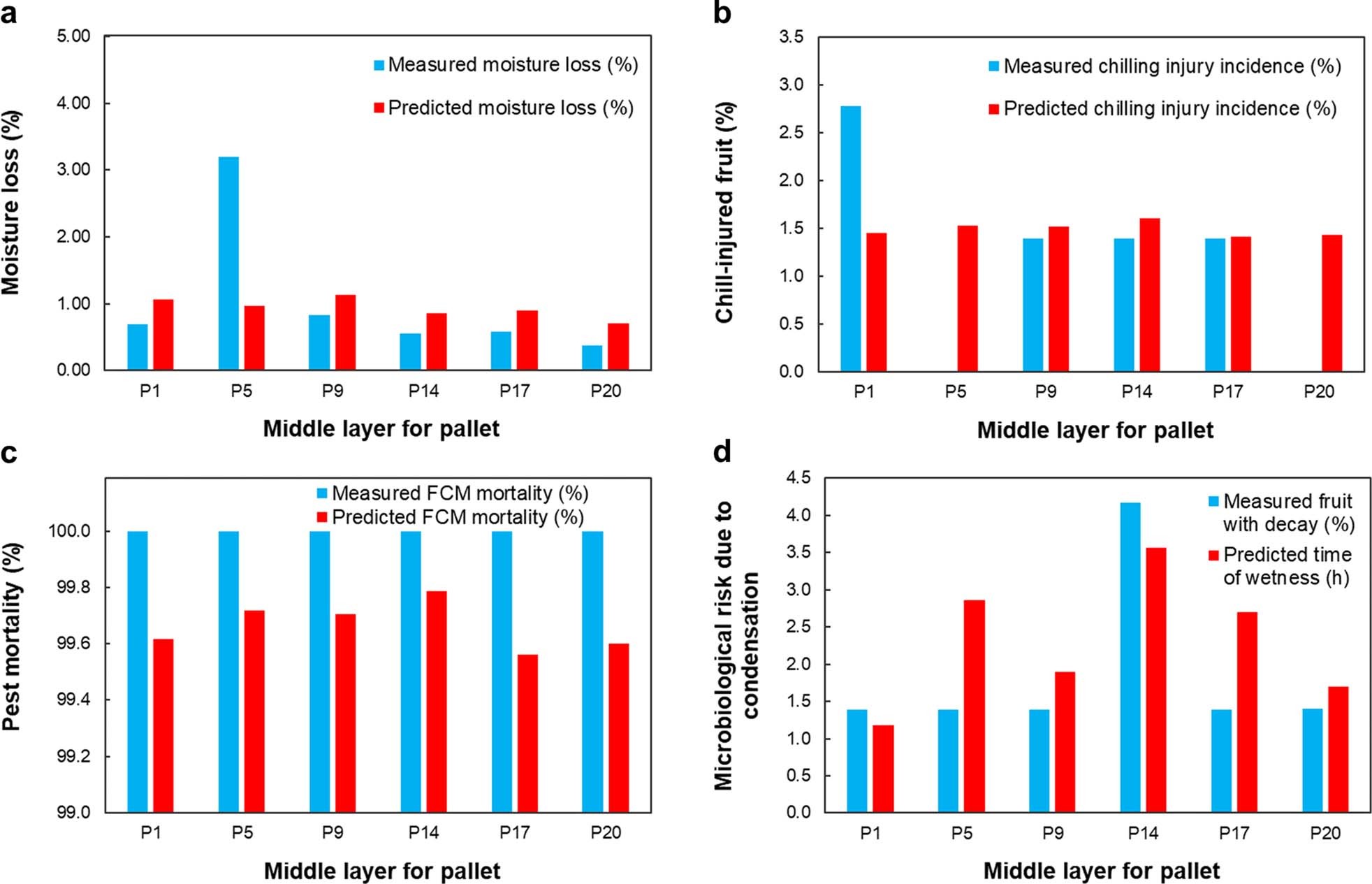

Validation of the digital twin for the boxes in the middle layer of pallets in the container: A comparison between measured values and the values predicted by the digital twin for fruit next to a sensor in the middle layer of pallets 1, 5, 9, 14, 17, and 20: (a) Moisture loss (%), (b) Fruit with symptoms of chilling injury (%); (c) Pest mortality (%); (d) Microbiological risk due to condensation.
