Fig. 2: Characterization of liquid-phase-synthesized LiI-modified xLi2S–LiI AM.

From: A composite cathode with a three-dimensional ion/electron-conducting structure for all-solid-state lithium–sulfur batteries

Fig. 2

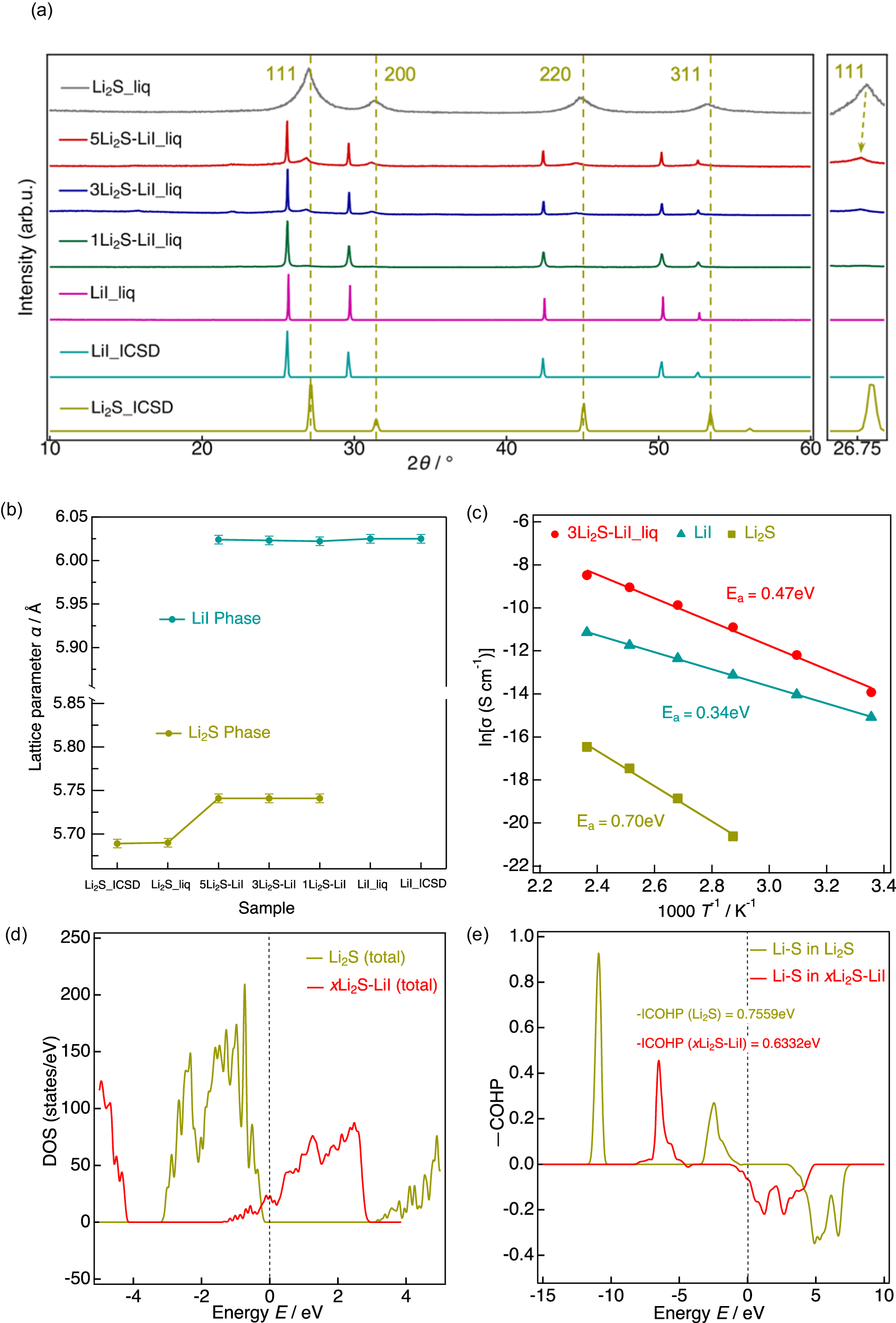

a X-ray diffraction (XRD) patterns of liquid-phase-synthesized xLi2S–LiI (x = 1, 3, 5), Li2S, and LiI. b Lattice parameters based on Rietveld refinement of data shown in Supplementary Fig. 3. c Arrhenius plots of Li2S, LiI, and 3Li2S–LiI constructed using AC electrochemical impedance spectroscopy (EIS) data at different temperatures. d Total density of states (DOS) and (e) crystal orbital Hamilton population (COHP) analyses of Li2S and xLi2S–LiI based on first-principles density functional theory (DFT) calculations. The perpendicular dashed line at 0 eV denotes the Fermi level.
