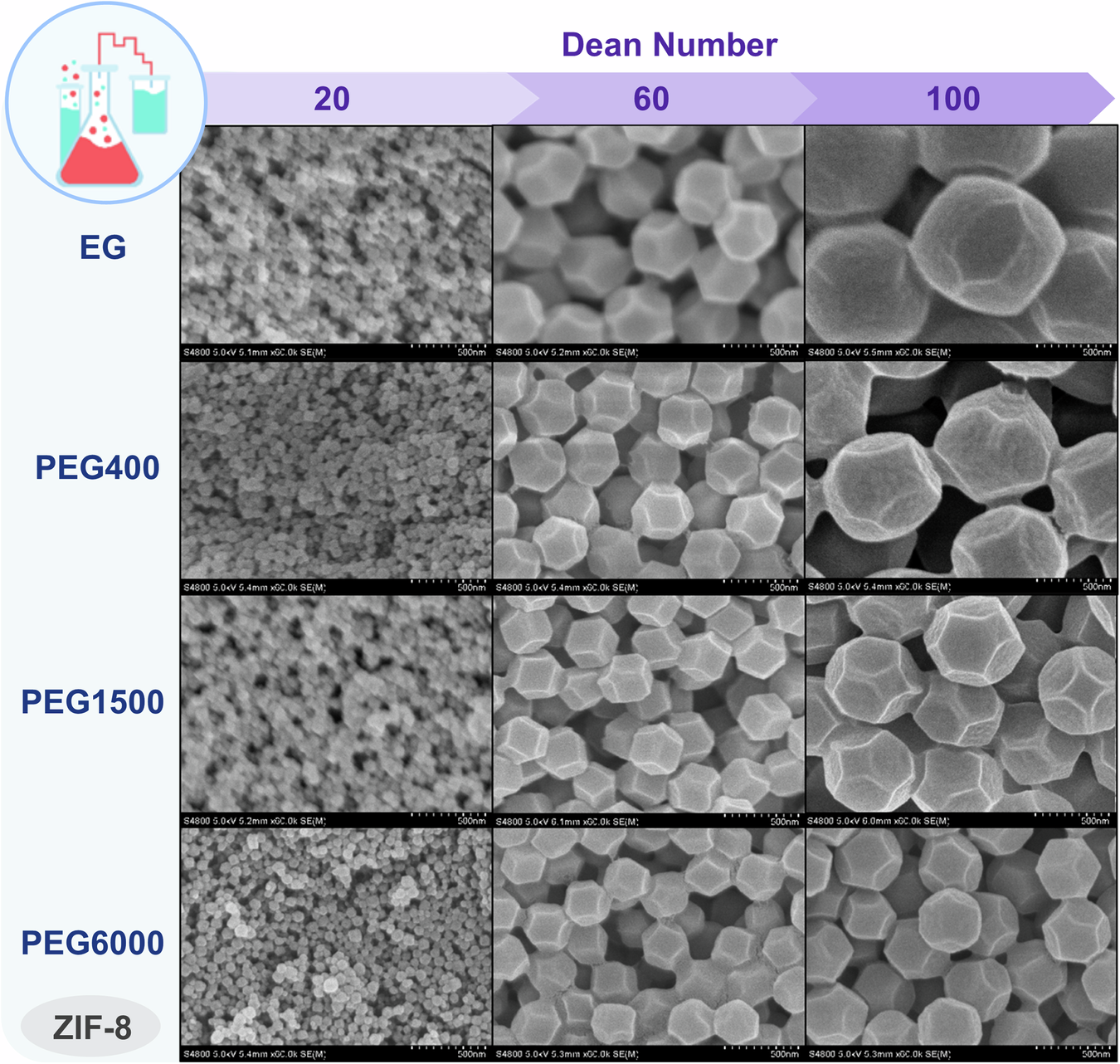

Fig. 10: SEM images of ZIF-8 particles synthesized in presence of polar polymeric modulators, e.g. ethylene glycol (EG) and different derivatives of polyethylene glycol (PEG) in microfluidic conditions. The particle size and morphologies found to be influenced significantly with the different molecular weight of PEGs. | Communications Materials

Fig. 10: SEM images of ZIF-8 particles synthesized in presence of polar polymeric modulators, e.g. ethylene glycol (EG) and different derivatives of polyethylene glycol (PEG) in microfluidic conditions. The particle size and morphologies found to be influenced significantly with the different molecular weight of PEGs.

From: Identifying synthetic variables influencing the reproducible microfluidic synthesis of ZIF nano- and micro-particles

Fig. 10

All SEM images were taken with the same magnification.
