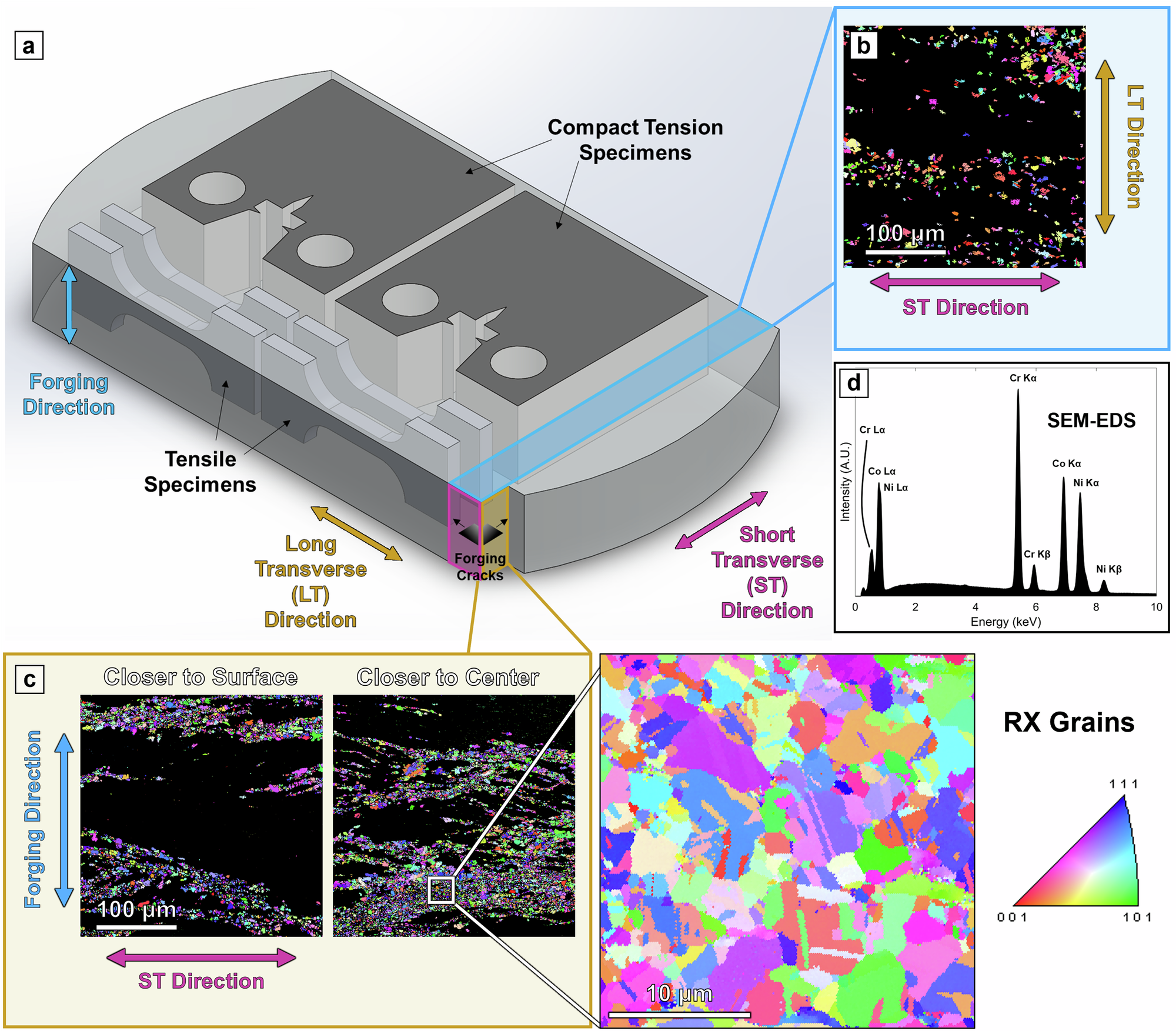

Fig. 1: Overview of microstructure and test specimen orientation.

From: Partially recrystallized microstructures expand the strength-toughness envelope of CrCoNi medium-entropy alloy

Fig. 1

a Overview of test specimens taken from each forged block. b, c Representative microstructures are shown after the material was cold-forged and annealed. For ease of viewing, EBSD maps are filtered to show only recrystallized grains (internal misorientation <1°). d A representative EDS spectrum from the forging plane.
