Fig. 2: Magnetically induced polarization in magnetic fields.

From: A high-temperature multiferroic Tb2(MoO4)3

Fig. 2

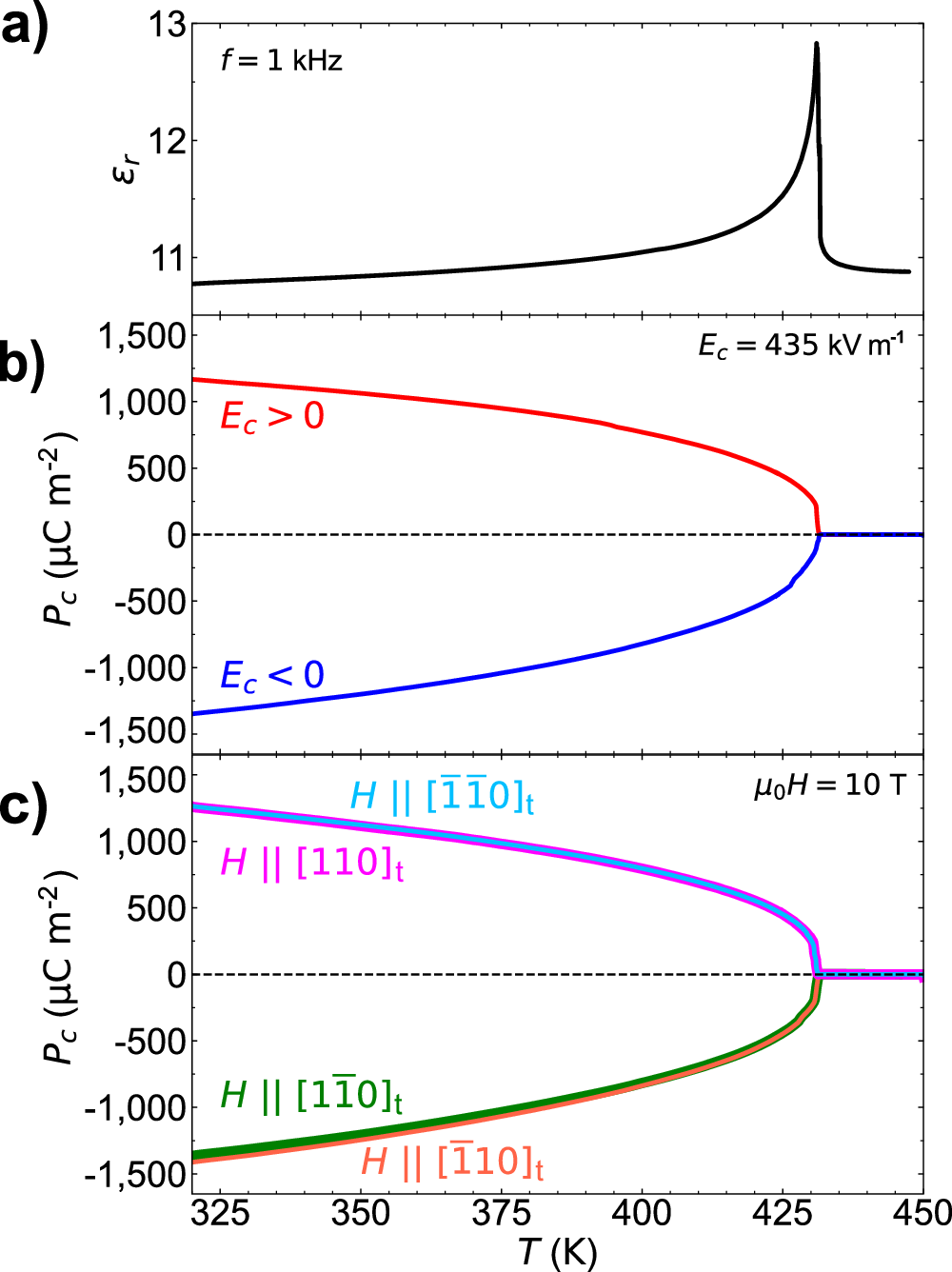

a Temperature dependence of relative dielectric constant at μ0H = 0 T. b Temperature dependence of the electric polarization at μ0H = 0 T measured on warming runs. Before the measurement, we cooled the sample from 450 K to 320 K in electric fields Ec = ±435 kV m−1. c Temperature dependence of the electric polarization measured on warming runs in the absence of any external field after cooling the sample down to 320 K applying magnetic fields μ0H = 10 T with various directions.
