Fig. 5: The second phase TEM images, the element distributions and EDS analysis results of Al–35Zn–2Cu–0.8Ag–0.25Sc alloy.

From: Designing wear-resistant high-zinc aluminium alloys with high strength and ductility

Fig. 5

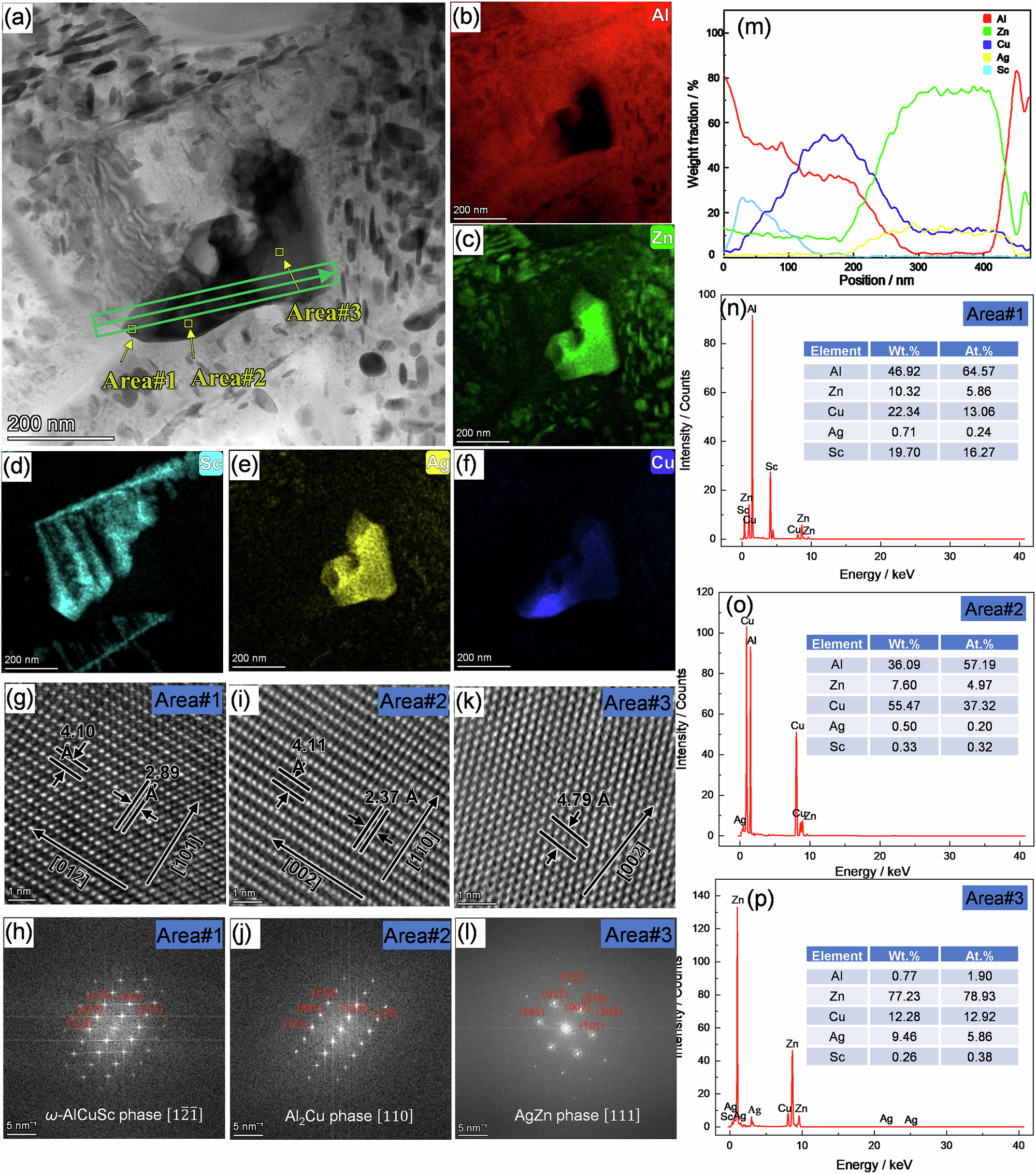

a Bright-field image; b–f EDS mapping of (a). g, h HR-TEM image and FFT pattern of Area#1. i, j HR-TEM image and FFT pattern of Area#2. k, l HR-TEM image and FFT pattern of Area#3. m Corresponding intensity distribution for each element of the green line in (a). n–p EDS analysis results for areas 1–3.
