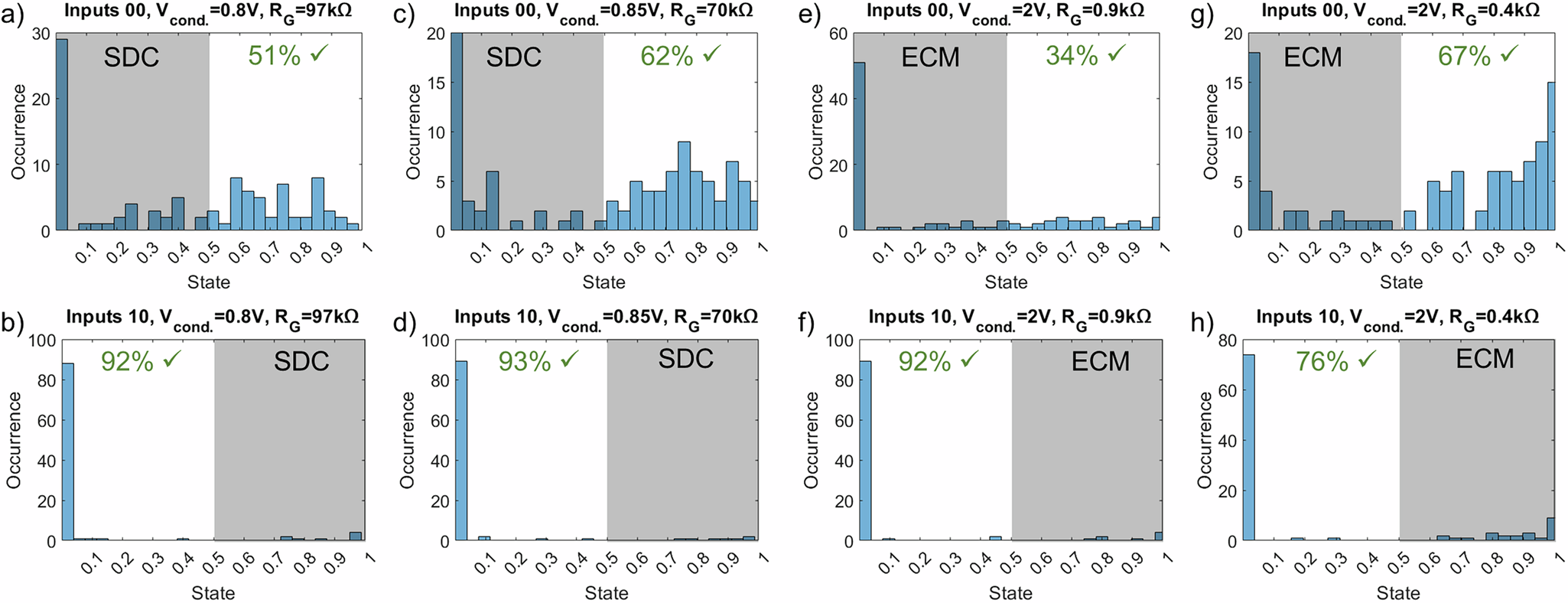

Fig. 6: Simulated output histogram of IMPLY implemented with SDC and ECM memristors.
From: Realistic behavioral model for ReRAMs capturing non-idealities
IMPLY outputs correspond to the input combinations ‘00’ and ‘10’ simulated under the realistic and optimized scenarios. SDC technology: a Inputs ‘00’ and b Inputs ‘10’ under the realistic scenario with Vcond. = 0.8 V and RG = 97 kΩ. c Inputs ‘00’ and d Inputs ‘10’ under the optimized scenario with Vcond. = 0.85 V and RG = 70 kΩ. ECM technology: e Inputs ‘00’ and f Inputs ‘10’ under the realistic scenario with Vcond. = 2 V and RG = 0.9 kΩ. g Inputs ‘00’ and h Inputs ‘10’ under the optimized scenario with Vcond. = 2 V and RG = 0.4 kΩ.
