Fig. 8: Overall correctness of simulated logical operations.
From: Realistic behavioral model for ReRAMs capturing non-idealities

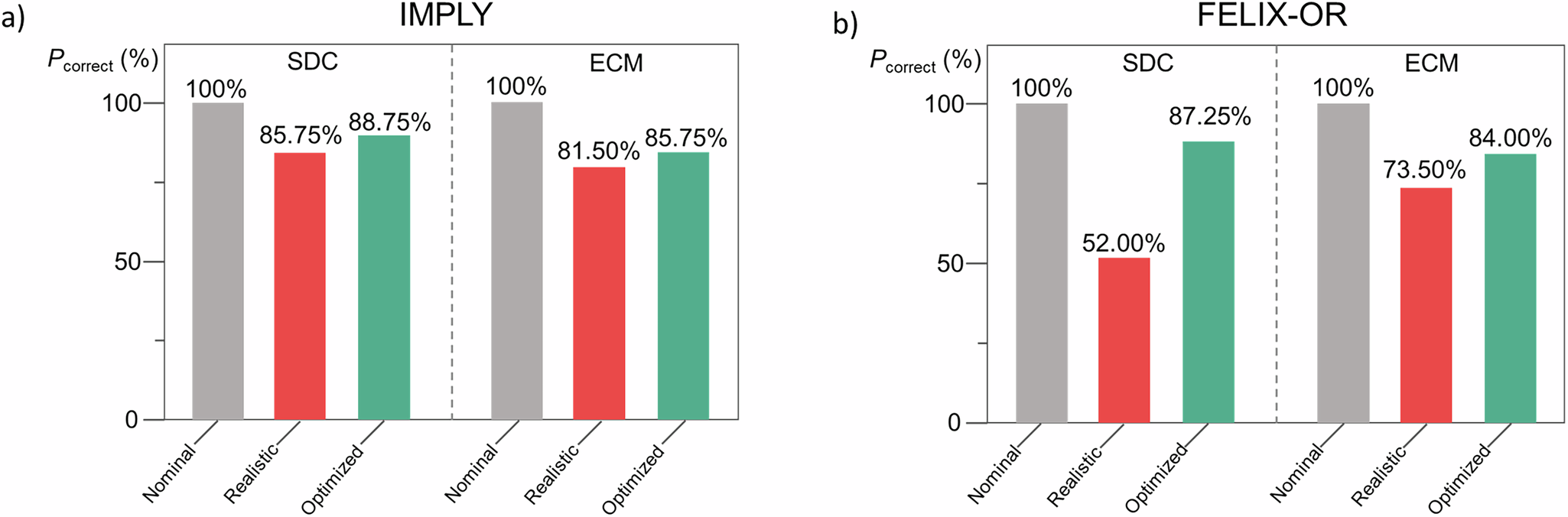

The simulation results of IMPLY (a) and FELIX OR (b) based on SDC and ECM memristors are presented with overall correctness Pcorrect, which is the weighted sum of individual correctness Pij of all input combinations, with equal weights of \(\frac{1}{4}\). For both technologies, each logic gate was simulated in three scenarios sequentially: nominal (gray bin), realistic (red bin), and optimized (green bin).
