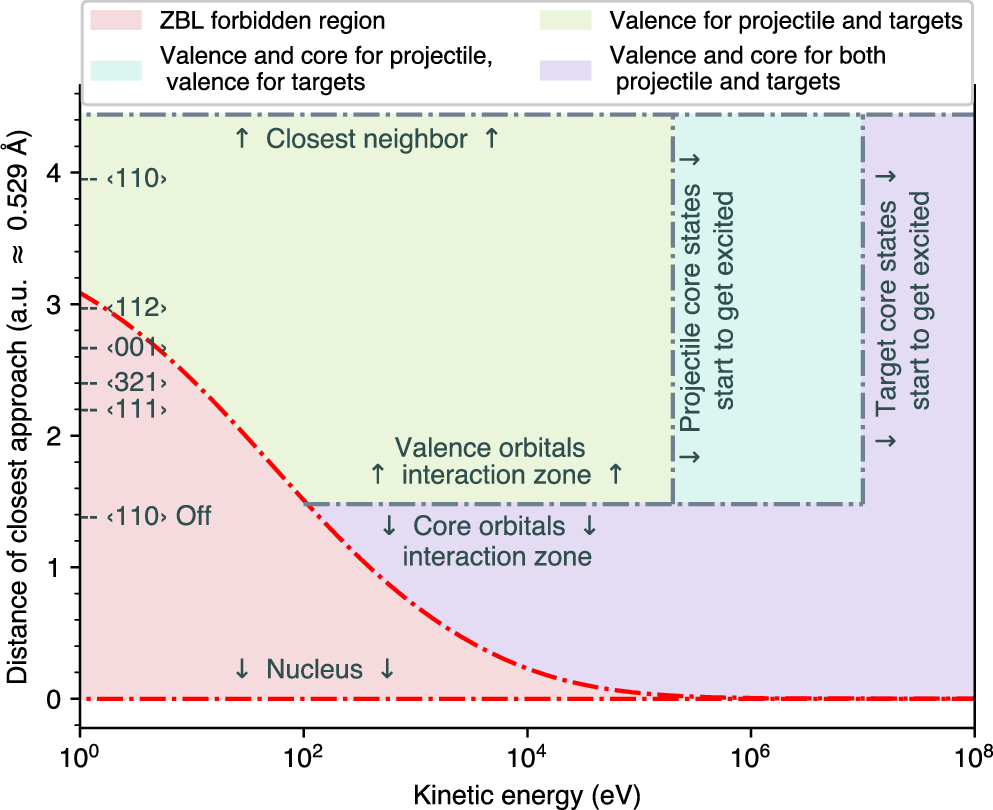

Fig. 5: Pseudopotential explicit orbital requirements for electronic stopping calculations in self-irradiated silicon.
From: Path-dependent electronic stopping for self-irradiated silicon
The projectile kinetic energy and distance of closest approach to target atoms determine whether the projectile, the targets, or both require explicit core electrons. The ZBL repulsive potential provides a constraint on the minimum distance of approach for a projectile with a given kinetic energy. The closest approach distance for different channeling and off-channeling trajectories is shown along the y-axis.
