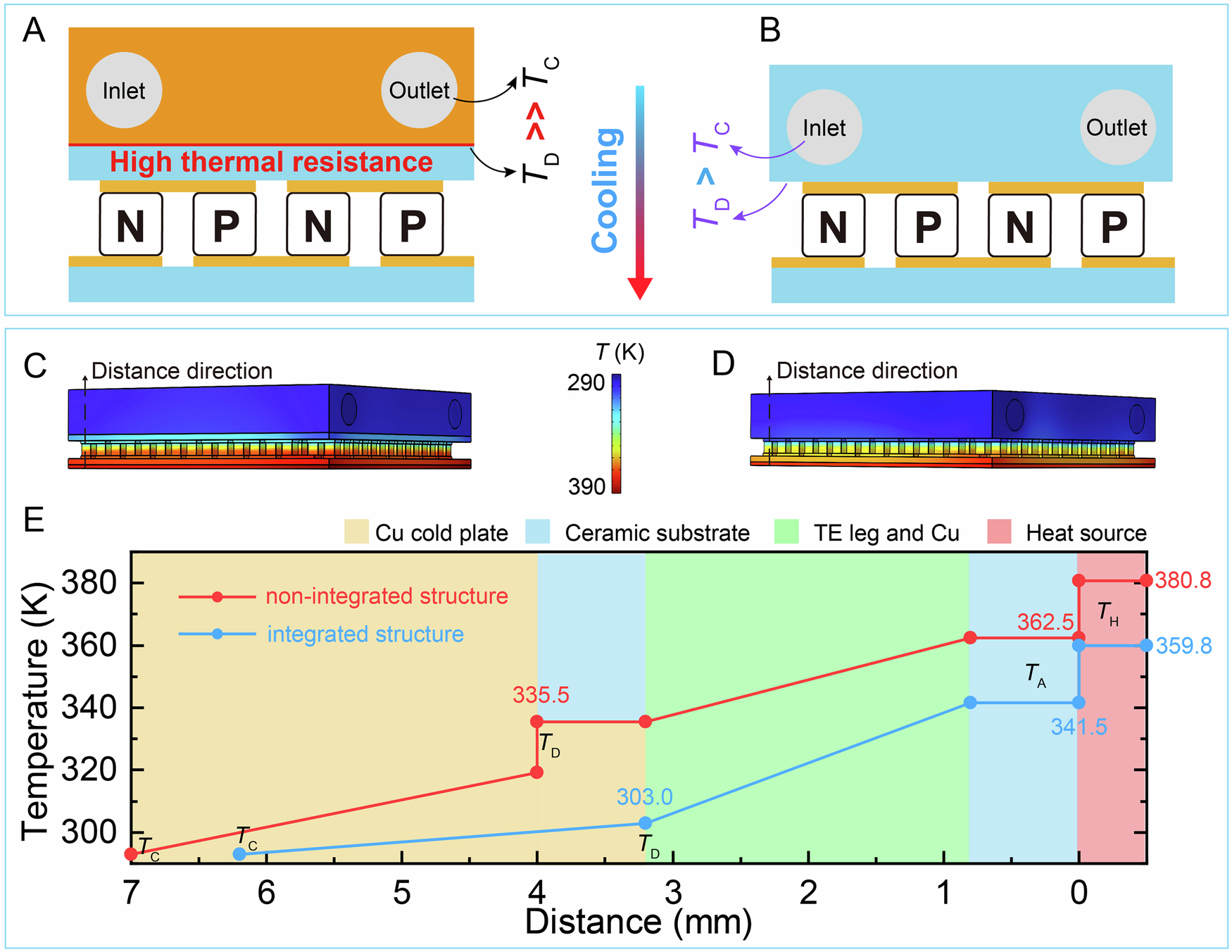

Fig. 1: Effect of the integrated structure on the cooling performance of the water-cooled TEC.

From: High-performance integrated thermoelectric coolers for electronics cooling

Fig. 1

The schematic illustrates two types of TECs, including A a non-integrated structure and B an integrated structure. C–E Finite element analysis (FEA) results show the temperature distribution on a cross-section of the two types of water-cooled TECs by setting the coolant temperature at 293 K.
