Fig. 6: Magnetoresistance δR(H)/R(0) for several layered vdW materials in the AFM state. | Communications Materials

Fig. 6: Magnetoresistance δR(H)/R(0) for several layered vdW materials in the AFM state.

From: Universal negative magnetoresistance in antiferromagnetic metals from symmetry breaking of electron wave functions

Fig. 6

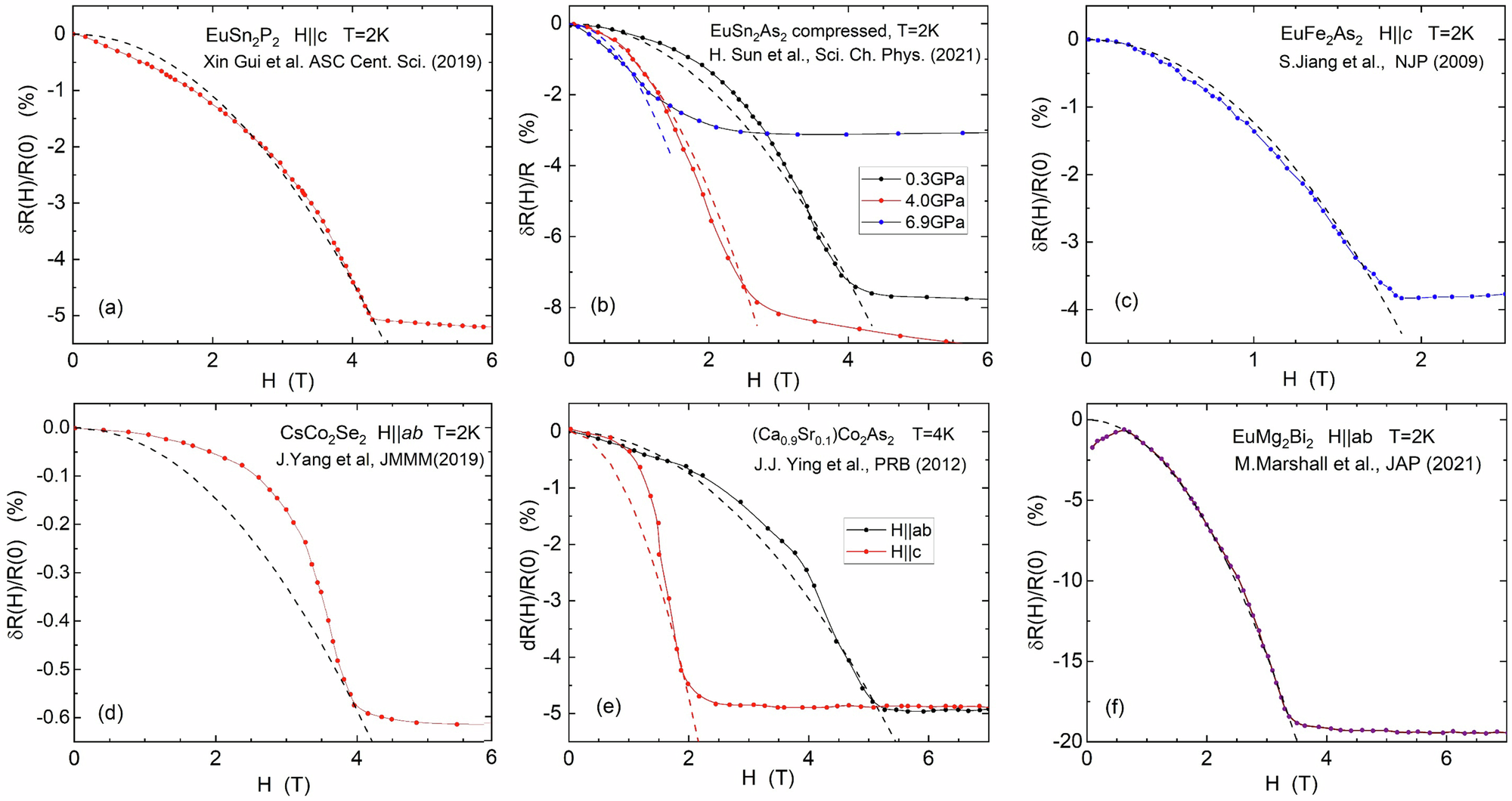

The experimental data are digitized from the published papers (symbols), and model curve are plotted according to Eq. (12) from the main text (dashed lines) for several compounds: a for EuSn2P2 from Fig. 5d of10, b for the compressed EuSn2As2 from Ref. 29 at several pressure values indicated on the panel, c for EuFe2As2 from Fig. 6 of Ref. 21, d for CsCo2Se2 from Fig. 4 of Ref. 12, e for (CaSr)Co2As2 from Fig, 4 of Ref. 11, f for EuMg2Bi2 from Fig. 3 of Ref. 35.
