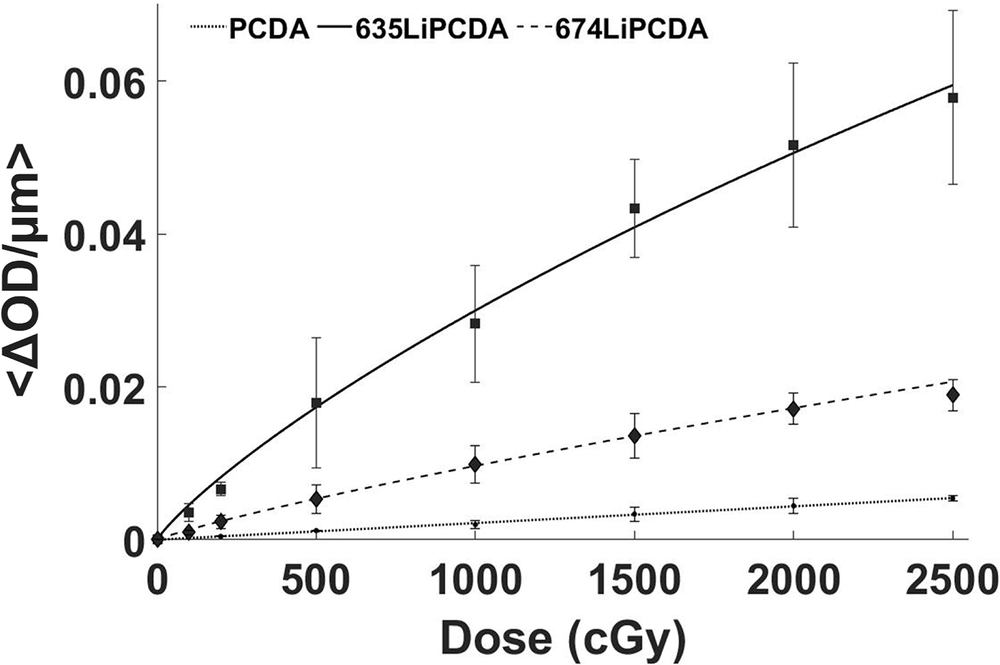

Fig. 8: Dose comparison of diacetylene formulations.
From: Evaluation of radiochromic formulations for dosimetry in high-energy photon and proton beams
Thickness corrected ∆OD vs dose plots of PCDA (dotted line), 635 LiPCDA (solid line), and 674LiPCDA (dashed line) irradiated with a 6 MV 10 cm × 10 cm photon beam at a dose rate of 300 cGy min−1 at 1.5 cm depth and 100 cm source-to-axis distance (See Supplementary Methods 2). Error bars represent the 1σ standard deviation between samples.
