Fig. 5: X-ray nano-computed tomography (nano-CT) images of electrospun electrodes before (ES) and after folding (ES-F), where brightness intensity corresponds to material density. | Communications Materials

Fig. 5: X-ray nano-computed tomography (nano-CT) images of electrospun electrodes before (ES) and after folding (ES-F), where brightness intensity corresponds to material density.

From: Acute deformation characteristics of standard and flexible lithium-ion battery electrodes

Fig. 5: X-ray nano-computed tomography (nano-CT) images of electrospun electrodes before (ES) and after folding (ES-F), where brightness intensity corresponds to material density.

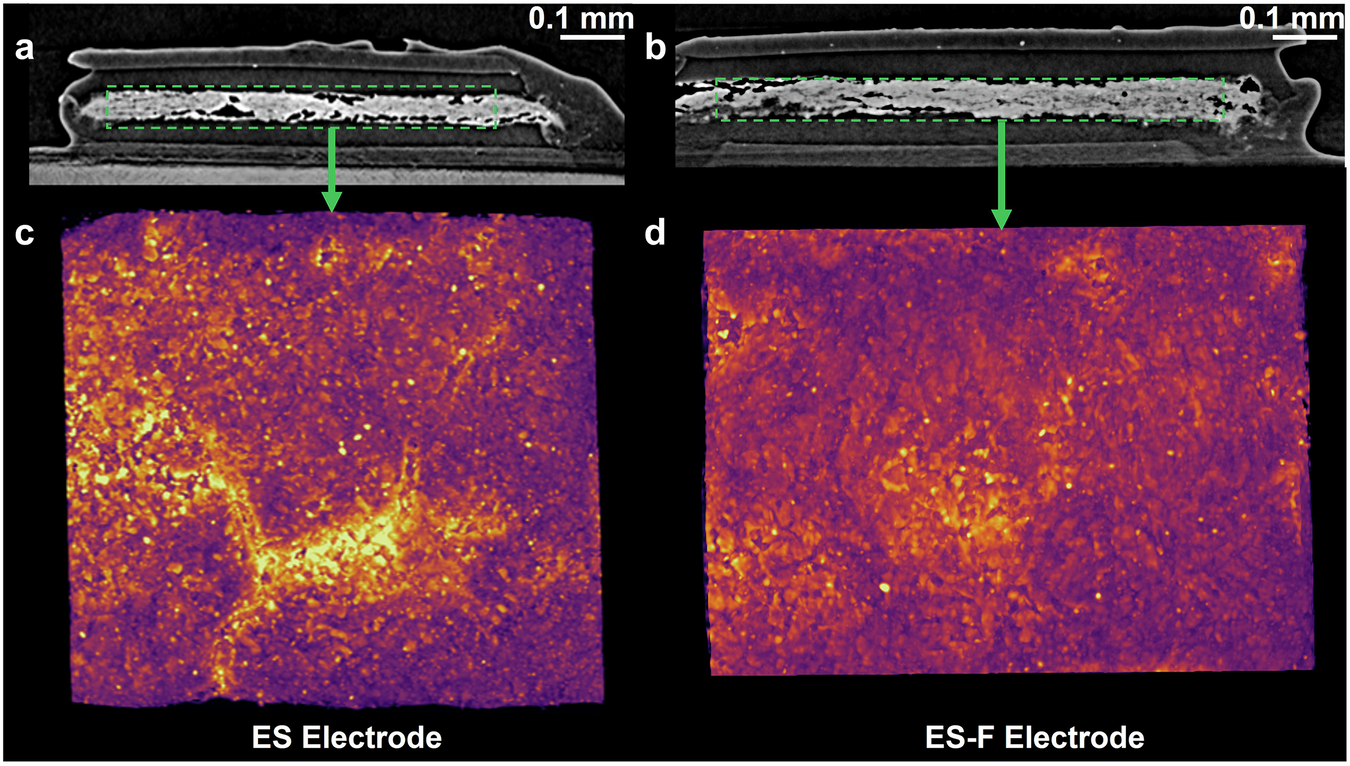

Experimental parameters are provided in the Supporting Information (Supplementary Methods 14). a Side-view nano-CT image of the unfolded ES electrode. b Side-view nano-CT image of the folded ES-F electrode. c Top-down nano-CT image of the isolated ES electrode. d Top-down nano-CT image of the isolated ES-F electrode.
