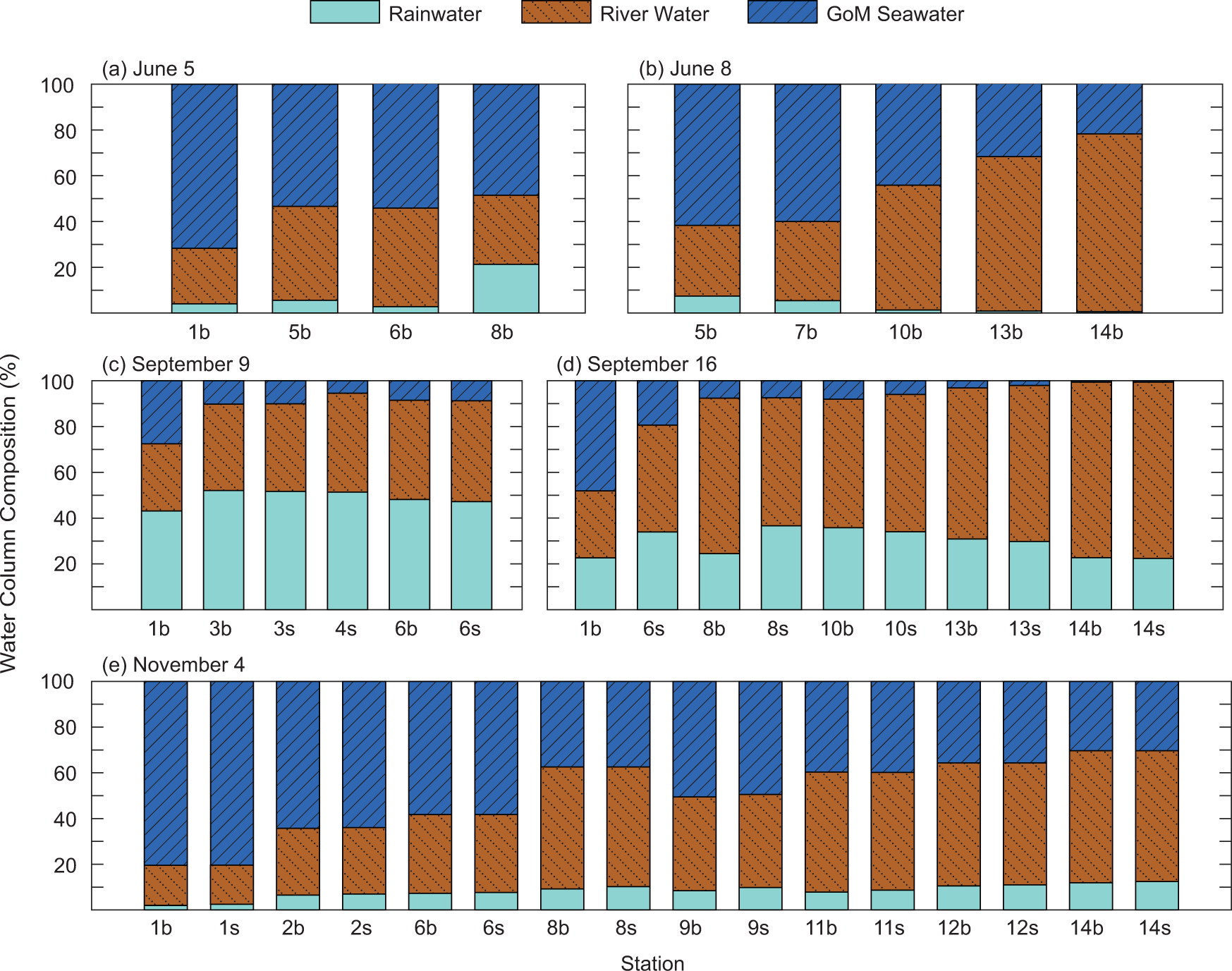

Fig. 4: Percent of the Galveston Bay water column composed of rainwater, Galveston-watershed river water, and Gulf of Mexico seawater.
From: Tropical cyclone-induced coastal acidification in Galveston Bay, Texas
Stacked bar charts indicate water column composition for 2017 sampling in a, b June, c, d September, and e November. The “b” indicates bottom sample (~1.2 m from bottom) and “s” indicates surface sample (~0.5 m) data. Teal is rainwater, brown with backslashes is Galveston-watershed river water, and dark blue with forward slashes is Gulf of Mexico seawater. Note that Galveston Bay water composition is summarized for 2018 sampling dates in Supplementary Fig. S3.
