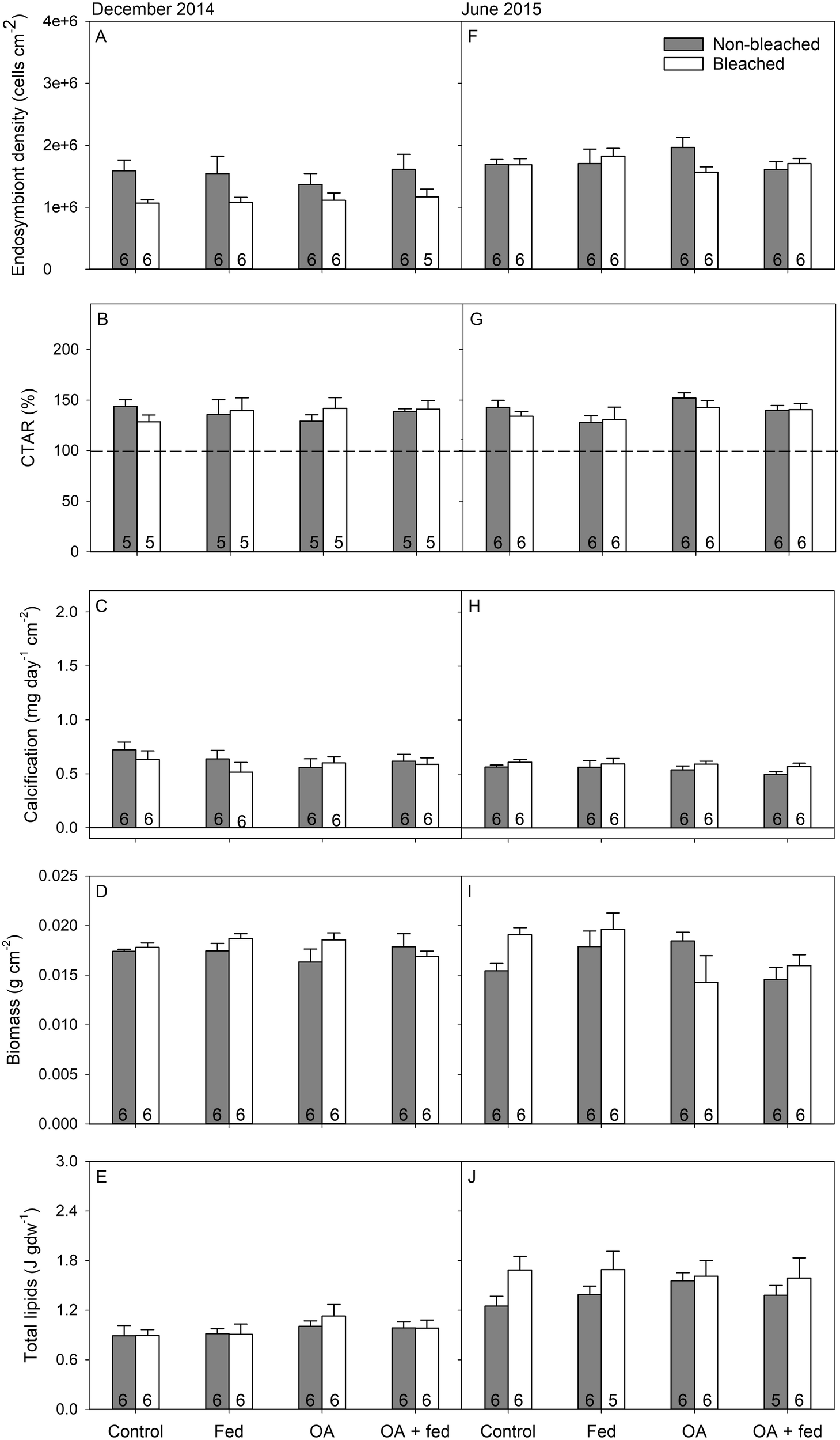

Fig. 3: Physiology of Montipora capitata from Waimānalo Bay in December 2014 and June 2015.

Physiological measurements of Waimānalo Bay Montipora capitata experiment ramets in December 2014 (A–E) and June 2015 (F–J) for ramets that were originally non-bleached (solid gray bars) or bleached (solid white bars) at the time of collection in November 2014. Mean ( ± 1 SE) (A, F) endosymbiont cell density, (B, G) Contribution of Total carbon to Animal Respiration, CTAR, (C, H) calcification, and (D, I) tissue biomass, and (E, J) total lipids are shown for ramets that were kept in the Control (ambient seawater of pH 7.96 and unfed), Fed (ambient seawater of pH 7.96 and fed), OA (acidified seawater of pH 7.73 and unfed), and OA+Fed (acidified seawater pH 7.73 and fed) treatments. The dotted line in B and G indicates 100%. Sample sizes for each mean indicated within each bar. Full ANOVA details are in Supplementary Table 6. The underlying data used to calculate CTAR (i.e., photosynthesis, respiration, and feeding capacity, CZAR, and CHAR) are in Supplementary Fig. 6 and accompanying statistics are in Supplementary Table 7.
